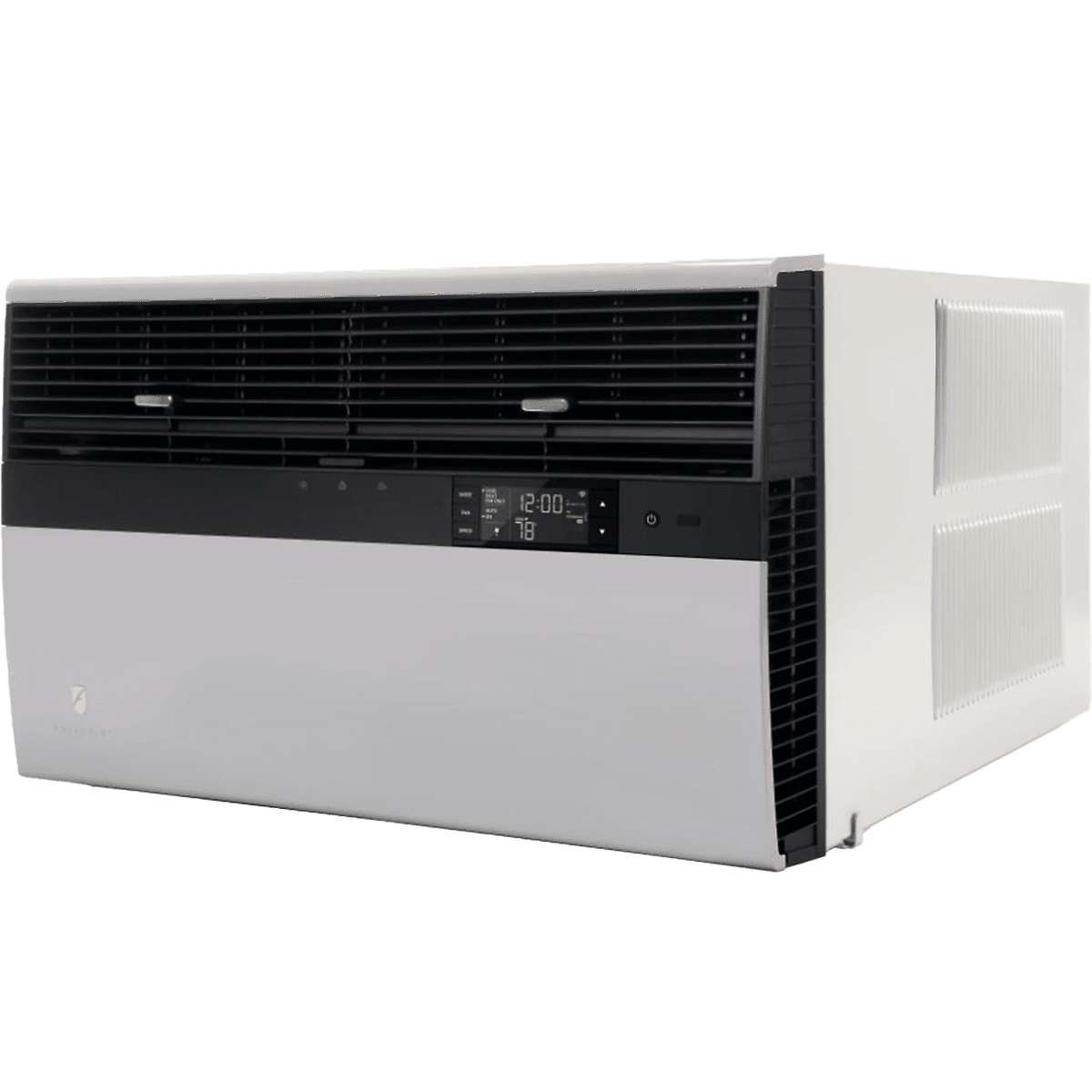

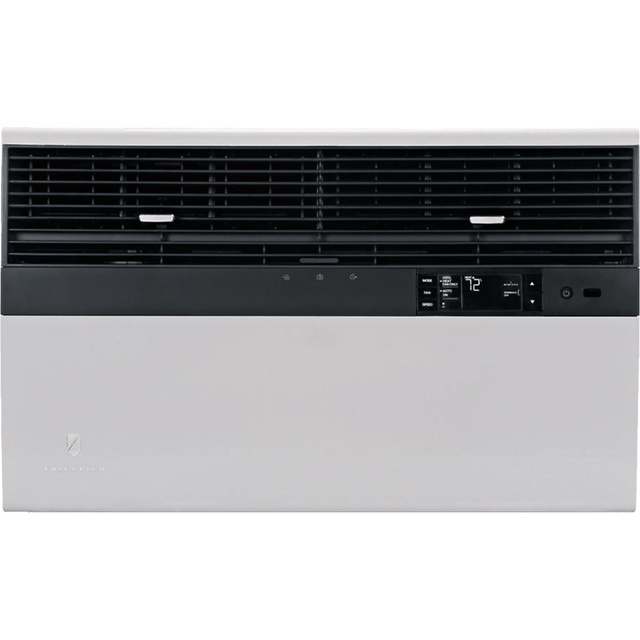

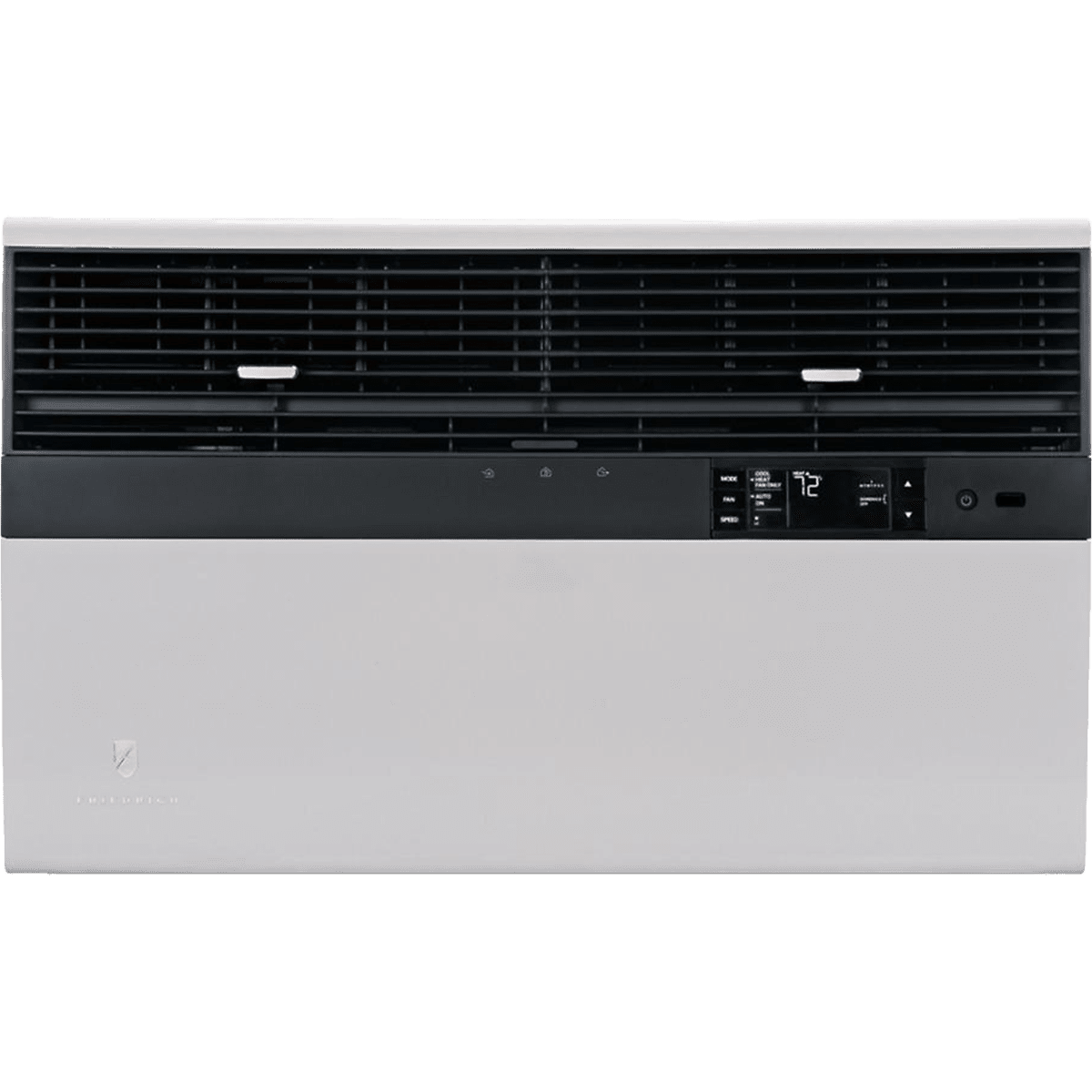

Friedrich Kuhl 22,300 Commercial Window & Wall Air Conditioner

SKU: fr14865  |  Model: KCM24B30A
$1,879.00 $2,089.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.


Add extended protection plan. (Select one)

learn more

A 2-year major appliance warranty for products less than $2,500.

learn more

A 4-year major appliance warranty for products less than $2,500.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

  • Friedrich Air Conditioner
  • Remote Control
  • Owner’s Manual
  • Installation Kit
  • Window Kit

Info & Guides

Description

The Friedrich Kuhl 22.300 BTU Commercial Window and Wall Air Conditioner is a powerful, Energy Star-rated cooling system installed through a wall or window to cool large spaces.

Top Features

  • Energy Star Efficiency: Energy Star-certified, with a 10.4 energy efficiency ratio (EER) and 10.3 Combined Energy Efficiency Ratio (CEER).

  • Quiet Operation: QuietMaster technology and vibration-isolating design features make this unit up to 45 percent quieter than competing models.

  • Built-In WiFi: Control this intelligent air conditioner with voice commands and the FriedrichConnect app with built-in WiFi.

  • Low Operating Cost: Friedrich estimates this unit will cost approximately $202 per year to operate in most buildings.

Advanced Controls

Once installed, this Energy Star-certified air conditioner is controllable through WiFi, the FriedrichConnect app for Apple or Android devices, or by voice commands.

The smart system can create customized 7-day cooling schedules with multiple cooling, fan-only, and automatic settings for single or multiple linked units.

Superior Filtration

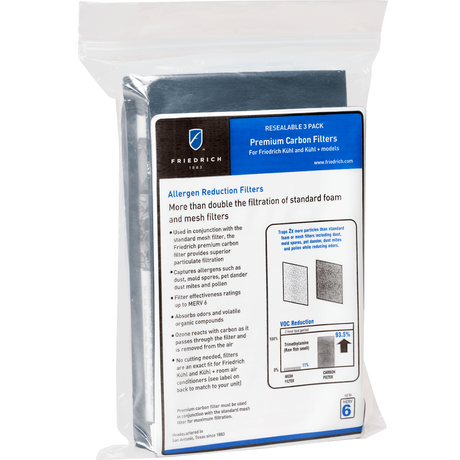

This quiet air conditioner comes equipped with multiple layers of filtration, including a washable filter and a replaceable MERV 6 filter that will remove large particles such as dust, dirt, allergens, lint, and debris from the system’s airflow.

Robust Construction

Customers can feel confident in Friedrich Kuhl’s robust steel construction and durability. The air conditioner’s design includes a solid-steel blower housing and an enclosed commercial-grade fan motor for enhanced protection and performance.

Flexible Installation

Unlike most window air conditioner models, this commercial AC was designed for either window or through-wall installation, giving customers multiple options for how the unit is used. It comes standard with heavy-duty installation hardware, a 6-foot power cord that can be run left or right, and a heavy-duty chassis that is easy to move for maintenance or installation.

This unit connects to a 230V power system via a 6-15P wall outlet.

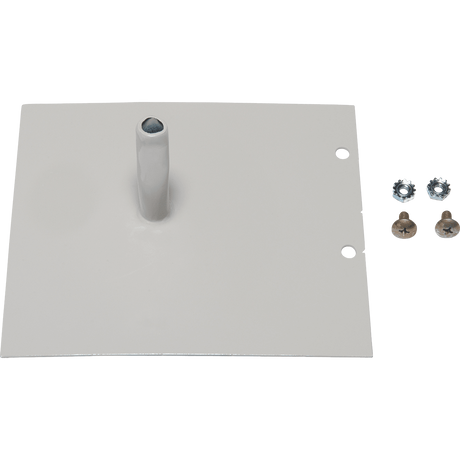

Optional Accessories

Summary

The Friedrich Kuhl 22.300 BTU Commercial Window and Wall Air Conditioner is an excellent option for customers who need supplemental cooling power in spaces up to 1,400 square feet.

Specifications

    Key Specifications

    • ASHRAE Cooling Power (BTUs)
      [23300]
    • Energy Efficiency Ratio (EER)
      10.4
    • Number of Speeds
      4
    • Window Installation Type
      Single/Double Hung

    General

    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
    • Certifications
      cULus
    • Chassis Type
      Slide-Out
    • Circuit Breaker Rating
      250V-15A
    • Color
      White
    • Controls
      Electronic
    • Estimated Yearly Operating Cost
      202
    • Heat Mode
      No
    • Heating BTUs (BTUs)
      0
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      425.0
    • Maximum Operating Temperature - Cooling (degrees F)
      115
    • Minimum Operating Temperature - Cooling (degrees F)
      60
    • Recommended Coverage Area (sq. ft.)
      1400
    • Refrigerant Type
      R-32

    Power

    • Maximum Cooling Amperage (Amps)
      13.8
    • Maximum Cooling Wattage (W)
      2067
    • Plug Face Type
      6-15P
    • Power Cord Length (ft.)
      6
    • Voltage (V)
      208-230

    Dimensions

    • Depth (in.)
      29.0
    • Depth (with front cover) (in.)
      29.0
    • Height (in.)
      17.94
    • Height (with front cover) (in.)
      17.94
    • Maximum Window Width (in)
      42.0
    • Minimum Window Height (in.)
      18.25
    • Minimum Window Width (in)
      27.38
    • Weight (lbs.)
      154
    • Width (in.)
      25.94
    • Width (with front cover) (in.)
      25.94

    Additional Features

    • Additional Features
      Programmable Timer, Installation Kit Included, Air Filter, Fan-Only Mode, Sleep Mode, Auto-Restart, Thru-Wall Installation Option, Wi-Fi Capable

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty
