Hessaire 12 Inch Shutter Mounted Exhaust Fan
Hessaire 12 Inch Shutter Mounted Exhaust Fan - Variable Speed is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Hessaire 12-Inch Shutter Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides

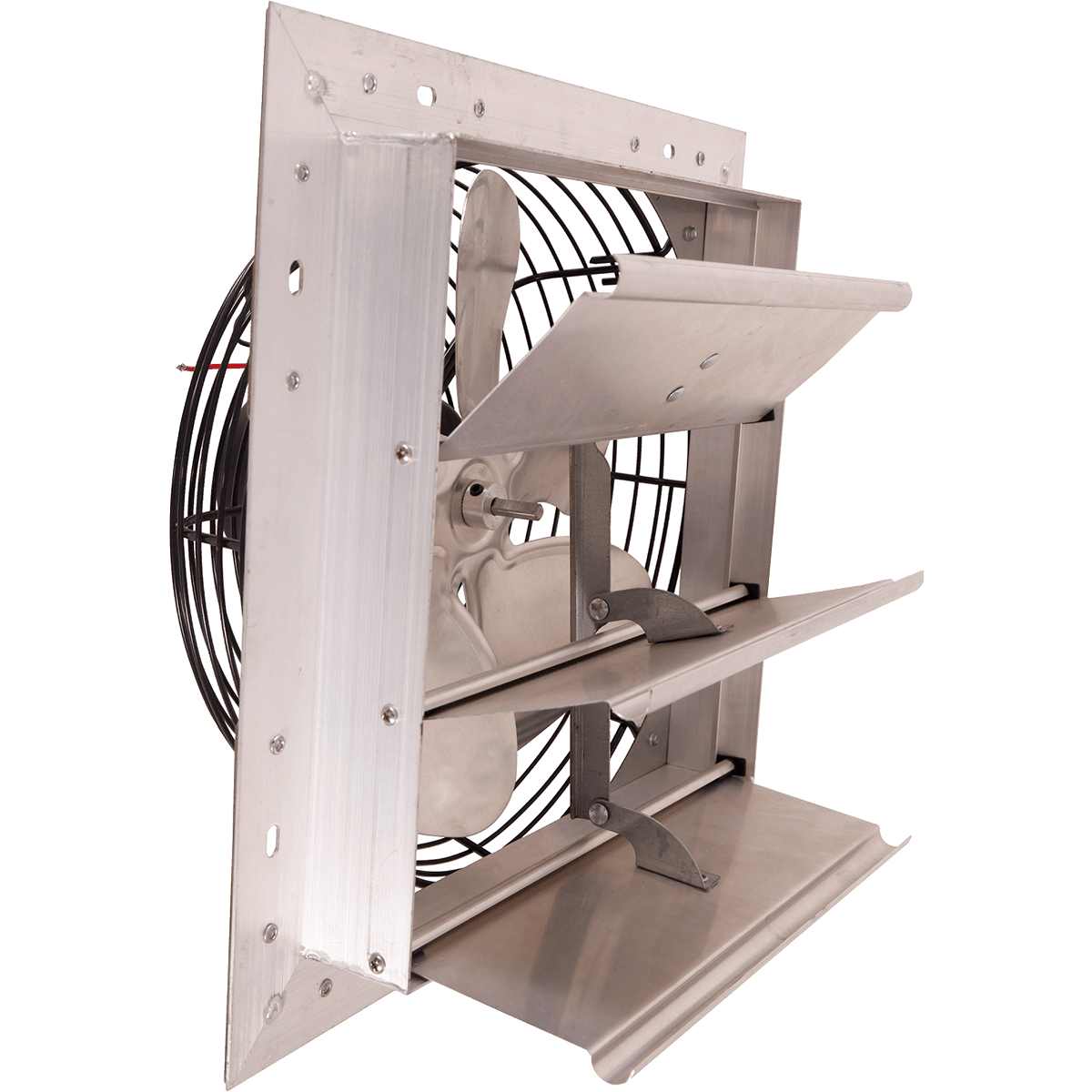

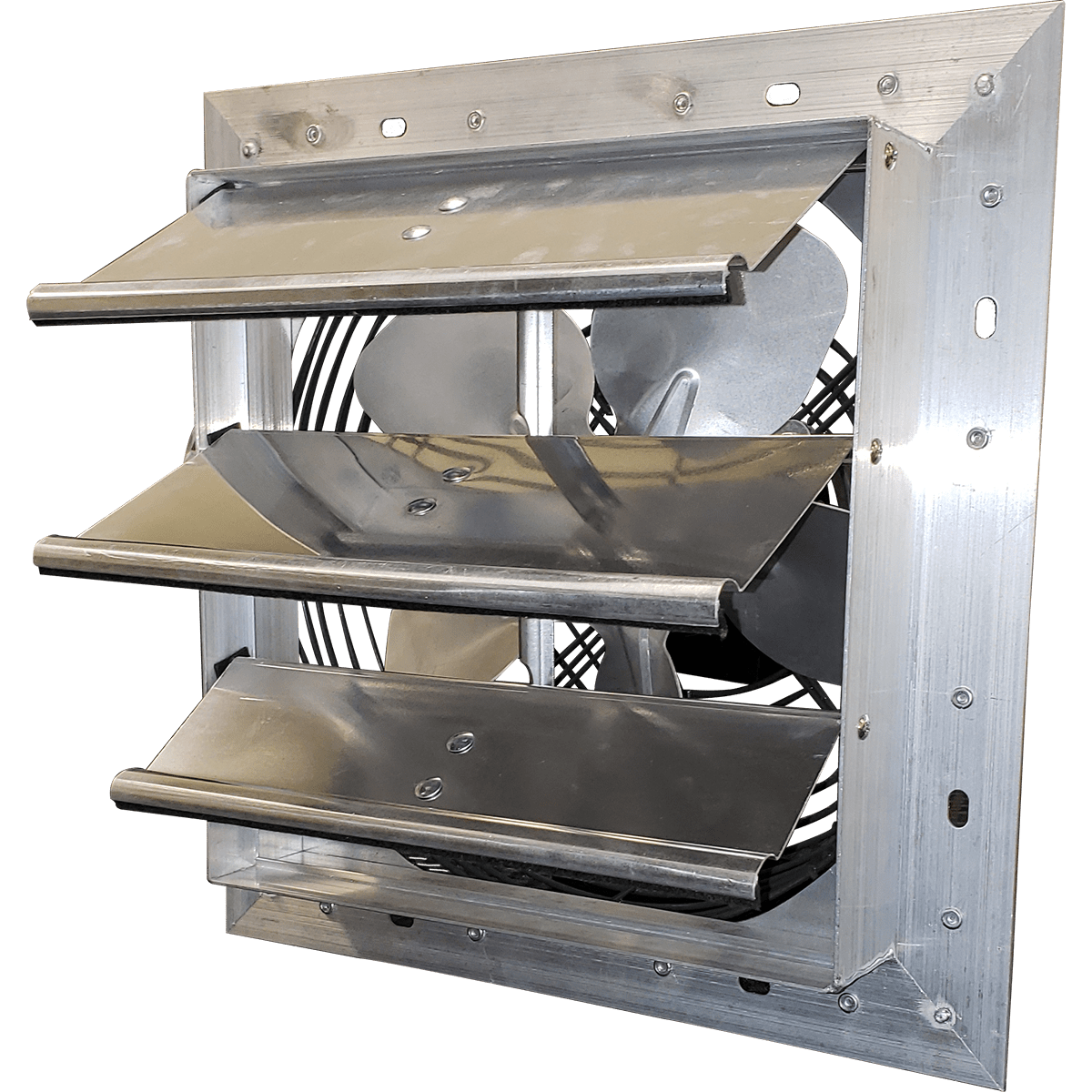

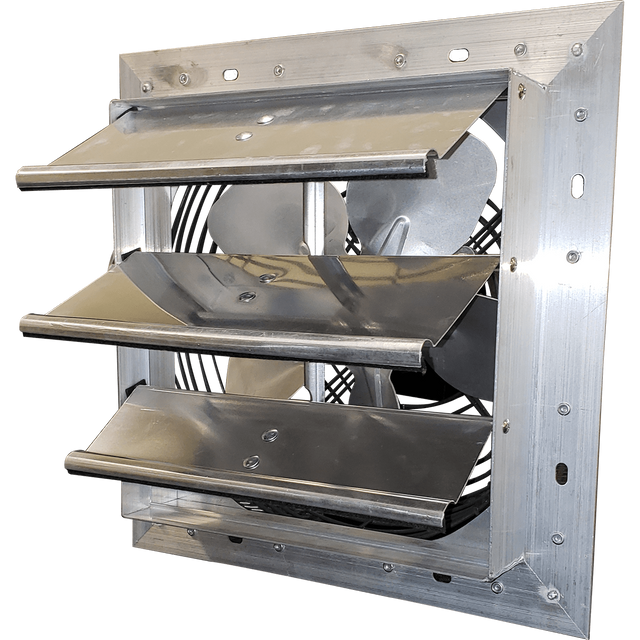

Hessaire 12 Inch Shutter Mounted Exhaust Fan
Description
Description
The Hessaire 12 Inch Exhaust Fan easily removes heat, fumes, and odors from any garage, residential greenhouse, or workspace up to 300 square feet. Perfect for replacing existing standard exhaust fan openings, select either a three-speed or variable speed fan option. Made in the USA, it is durably built for long-lasting use.
Other features include quiet operation, automatic shutters, corrosion-resistant coating, and more.
Dual Fan Speed Options
Select either the three-speed or variable fan speed for ventilating up to 300 square feet of attic, basement, or greenhouse space.
- Three-Speed Fan: Get 1,100 cubic feet of airflow per minute (CFM) with low, medium, and high speeds.
- Variable Speed Fan: With a variable fan speed, move up to 900 cubic feet of air per minute (CFM).
**A three- or eight-amp variable speed motor controller is required to adjust fan speed on the variable fan option and is sold separately. It should be installed by a certified electrician.
Durable Build
Designed in the US, the Hessaire shutter exhaust fan features a totally enclosed, air over, ball-bearing motor that requires no future lubrication. Other features include:
- Reinforced Galvanized Steel: Reinforced steel corners and aluminum shutters ensure long-lasting use and resilience.
- Automatic Shutters: The corrosion-resistant automatic shutters automatically open and shut, protecting the interior from outside moisture and temperatures.
- Quiet Operation: Weather stripped louvers quietly shut after the fan shuts off and provide a tight seal to resist exterior noise.
- IP55-Rating: Designed with an IP55-rating, this exhaust fan can withstand light water splashes and features a dust-tight sealed motor.
Additional Features
- Sones: At just six sones, this fan operates no louder than a standard conversation.
- UL-Certified: This fan carries a UL-705 certification for safety.
- Power Cord: A nine-foot plug and play power cord plugs into any 120-volt outlet with no hardwiring required.
- OSHA Compliant: OSHA compliant spacing with ½-inch openings protect the three-blade propeller.
- Thermal Protection: In case of accidental overheating, this fan will cut power for safety.
Summary
Ventilate your 300 square foot workspace quickly with the Hessaire 16-Inch Exhaust Fan.
What Customers Love
- Dual Fan Options: Select between either a three-fan or variable fan speed.
Things to Consider
- Variable Fan: The variable speed controller is required to adjust fan speed on the variable fan model.
- Professional Installation: Only variable speed controllers should be installed by a certified electrician.
Specifications
Specifications
-
Number of SpeedsVariable3
-
Sound Level (Sones) (sones)6.0
-
TypeShutter Exhaust Fan
-
ApplicationBasement, Garage/Workshop, Crawlspace, Residential, Commercial/Industrial, Attic
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)900.01100.0
-
Maximum RPM1550
-
Recommended Coverage Area (sq. ft.)250300
-
Amperage (Amps)1
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)115
-

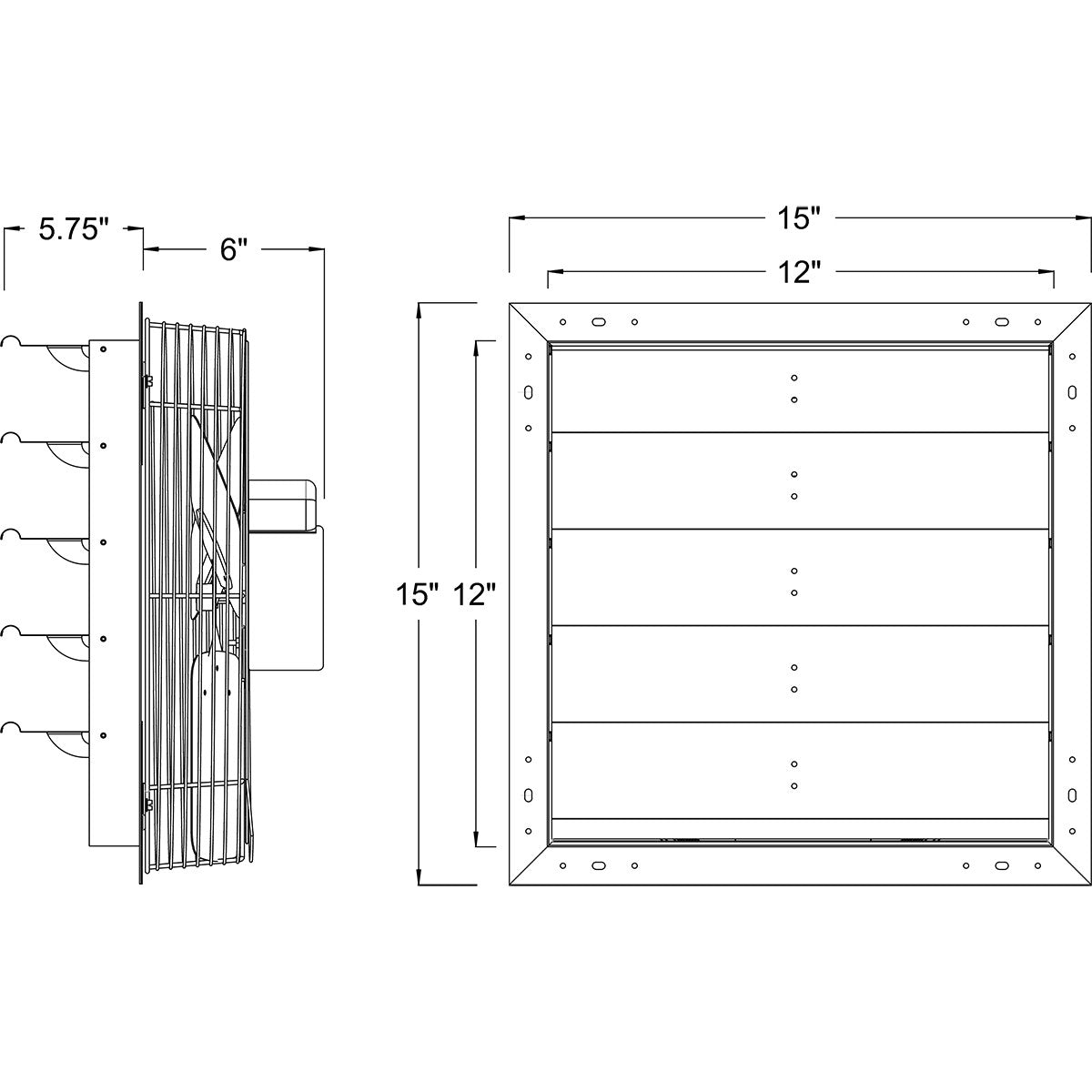

Ceiling or Wall Cutout Length (in.)12.5
-
Ceiling or Wall Cutout Width (in.)12.5
-
Depth (in.)11.0
-
Depth (with front cover) (in.)11.0
-
Height (in.)12.0
-
Height (with front cover) (in.)12.0
-
Shutter Fan Size (in.)12
-
Weight (lbs.)13
-
Width (in.)15.0
-
Width (with front cover) (in.)15.0
-
Additional FeaturesThermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
- JjeffVerified BuyerReviewingHessaire 12 Inch Shutter Mounted Exhaust FanI recommend this productRated 5 out of 5 stars10 months agoWorks well
Fits and works fine to exhaust my basement
- EEdwardVerified BuyerReviewingHessaire 12 Inch Shutter Mounted Exhaust FanI recommend this productRated 4 out of 5 stars5 years agoGood and not so good
I'm using the fan to exhaust the hot air out of my woodshop. It's handy to have the different speeds as the high speed tries to keep the door across the shop from closing. The one thing I did not like was the directions stating the rough opening was 12.5""x12.5"" and the guard on the fan was 13"" in diameter....either the directions were wrong or should have stated that the guard had to be removed.
- TAthis a. s. r.Verified BuyerReviewingHessaire 12 Inch Shutter Mounted Exhaust FanI recommend this productRated 5 out of 5 stars5 years agogreat value.
I already wrote an answer the first time.
- BBillVerified BuyerReviewingHessaire 12 Inch Shutter Mounted Exhaust FanI recommend this productRated 5 out of 5 stars5 years agoI would buy this product again
works as expected, no problems. If I needed another would definitely go to Sylvane.
