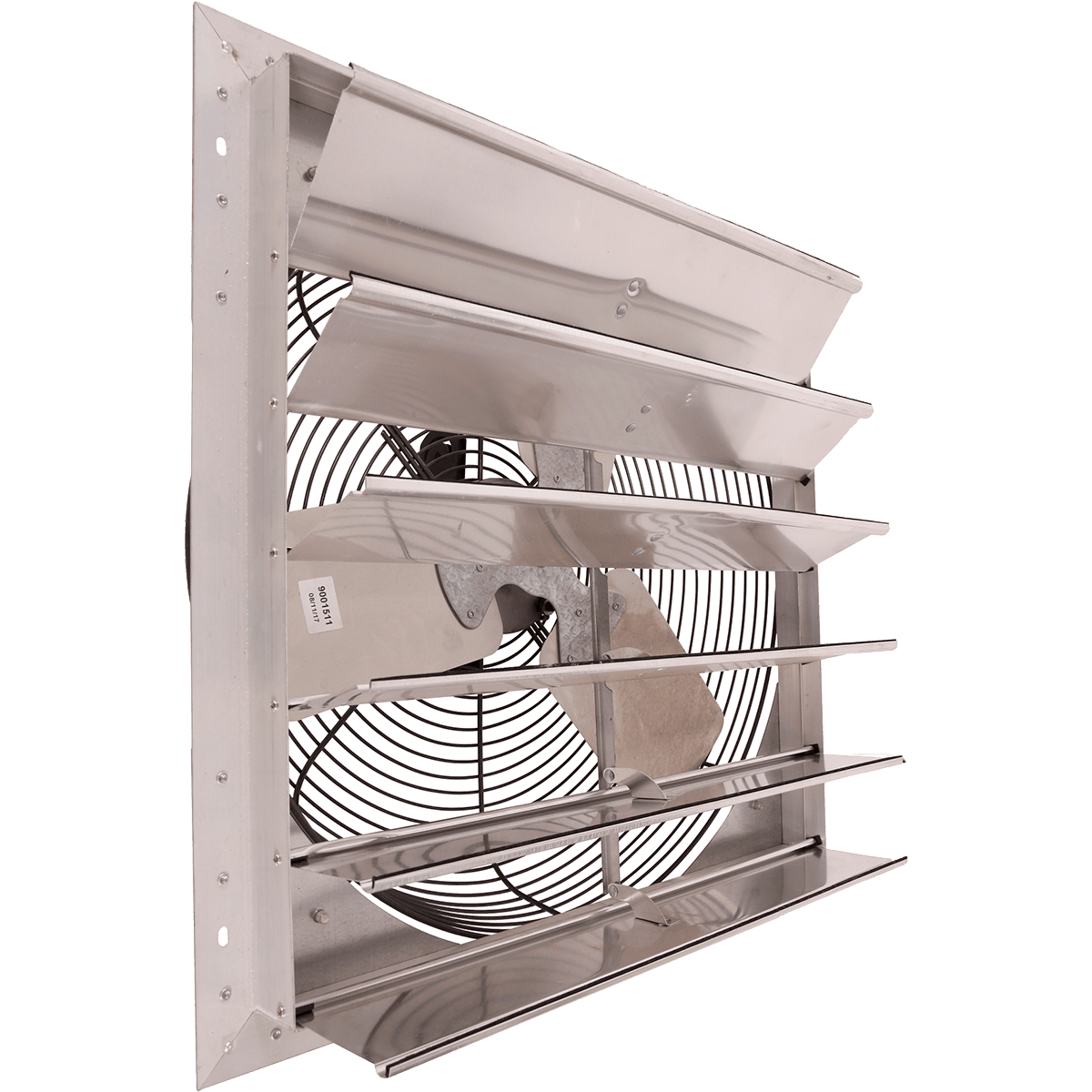

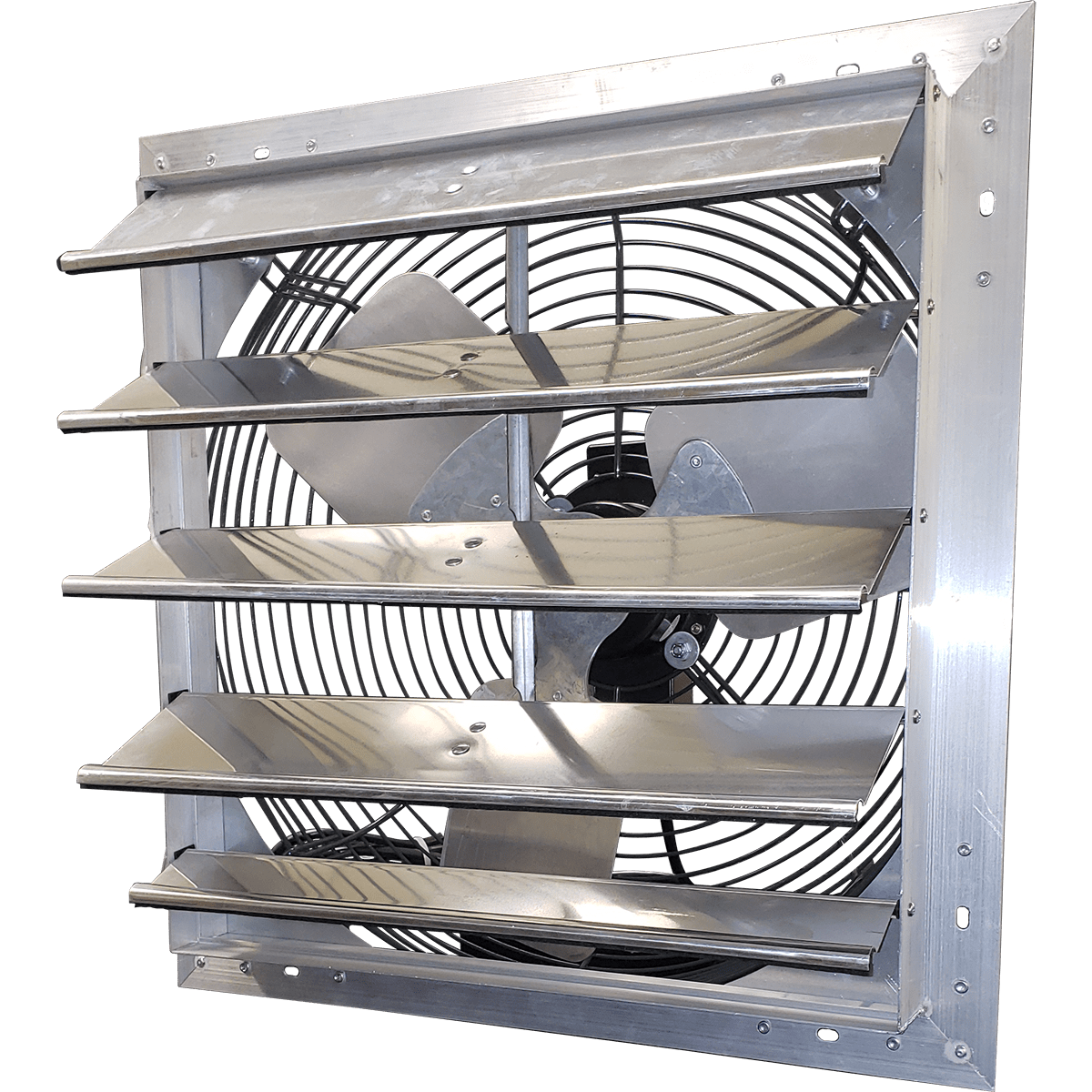

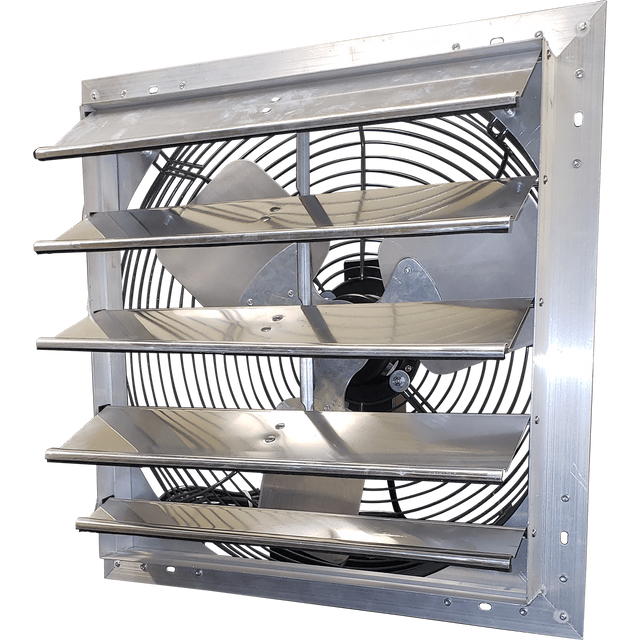

Hessaire 24 Inch Shutter Mounted Exhaust Fan
Hessaire 24 Inch Shutter Mounted Exhaust Fan - 2-Speed is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Hessaire 24-Inch Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides
Hessaire 24 Inch Shutter Mounted Exhaust Fan
Description
Description
For all of your commercial and large residential exhaust needs, turn to the Hessaire 24-Inch Shutter Mounted Exhaust Fan. Great for areas as large as 1,300 square feet, this fan eliminates smells, heat, and even moisture in restaurants, greenhouses, or warehouses. These fans are made in the USA and are available as either a two-speed or variable speed fan with 4,450 cubic feet per minute (CFM) of airflow.
High-Efficiency Ventilation
Eliminate excess heat, smells, moisture and more quickly and efficiently with this Hessaire 24-inch exhaust fan. Designed to work quickly, this fan replaces existing standard exhaust fans in restaurants, warehouses, greenhouses, and other industrial or commercial spaces up to 1,300 square feet.
- Self-Closing Shutters: The automatic self-closing aluminum shutters provide a tight-seal from external noise and quietly close thanks to its pre-fitted weather-stripping.
- Quiet Performance: Only 7.4 sones, this unit provides a quiet performance few others can match.
- Zero Maintenance Motor: A permanently sealed ball-bearing mode never requires lubrication.
- Anti-Corrosion Protection: With gray powder coating, the fan is protected from rust and weathering.
- Added Protection: Its totally enclosed motor has an IP55 rating, meaning it’s resistant to dust and light water splashes.
Multiple Fan Options
Tailor this exhaust fan to meet the needs of you or your business by choosing between either the two-speed fan or the variable fan speed option. No matter your choice, you’ll have powerful and effective airflow of up to 4,450 CFM.
**The variable speed fan requires an additional purchase of an eight-amp variable speed controller for the 24-inch vent fan and must be installed by a professional electrician.
Additional Features
- OSHA Compliant: The fan and its ½-inch openings adhere to OSHA safety standards.
- UL-Certification: Its UL705 certification lets you know its rated and designed for maximum safety.
- Thermal Protection: In the event that the fan motor locks up, the thermal protection will stop powering the fan to prevent overheating.
Summary
Eliminate odors, heat, and moisture from large residential areas or commercial settings with this Hessaire shutter mounted exhaust fan.
What Customers Love
- American Made: These made in the USA fans deliver an effective and reliable performance.
- Low Maintenance: With self-closing shutters, a sealed motor and anti-corrosion protection, this is a low maintenance exhaust option.
Things to Consider
- Variable Speed Switch: In order to use the variable speed fan, an eight-amp controller switch is required and is not included with the fan. Without the variable switch, the fan will run continuously on high when in use.
- Professional Installation: If you choose to use a variable controller switch, it should be installed by a certified electrician.
Specifications
Specifications
-
Number of Speeds2Variable
-
Sound Level (Sones) (sones)7.4
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)4450.0
-
Maximum RPM1075
-
Recommended Coverage Area (sq. ft.)1300
-
Amperage (Amps)3.1
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)356
-

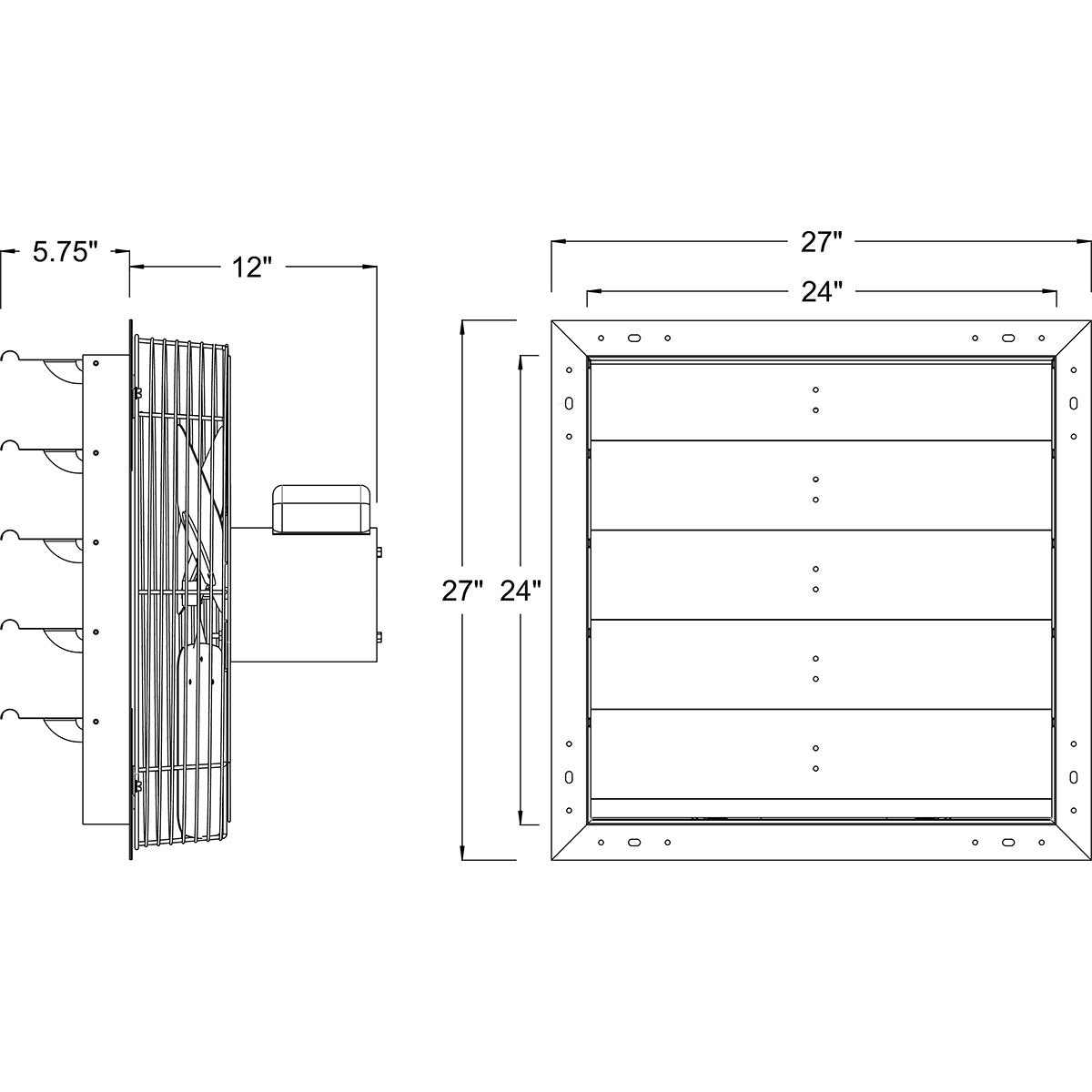

Ceiling or Wall Cutout Length (in.)25
-
Ceiling or Wall Cutout Width (in.)25
-
Depth (in.)17.0
-
Depth (with front cover) (in.)17.0
-
Height (in.)24.0
-
Height (with front cover) (in.)24.0
-
Shutter Fan Size (in.)24
-
Weight (lbs.)30
-
Width (in.)27.0
-
Width (with front cover) (in.)27.0
-
Additional FeaturesThermal Cutoff ProtectionThermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
- AarthurVerified BuyerReviewingHessaire 24 Inch Shutter Mounted Exhaust FanI recommend this productRated 5 out of 5 stars4 years agoKeeps Greenhouse cool
Using in my greenhouse, keeps everything ventilated and cool. For a fan the blows this much air its pretty quiet. It is built very heavy and trong and I think it will serve me for years to come. Great choice in a exhaust fan
- RRichardVerified BuyerReviewingHessaire 24 Inch Shutter Mounted Exhaust FanI recommend this productRated 5 out of 5 stars2 years agoGreat fan.
Fan was cheaper than a replacement motor for my old shutter fan.
- GgaryVerified BuyerReviewingHessaire 24 Inch Shutter Mounted Exhaust FanI recommend this productRated 5 out of 5 stars3 years agoyes
use this for environmental control in my garage brewery...works great
- BBryanVerified BuyerReviewingHessaire 24 Inch Shutter Mounted Exhaust FanI do not recommend this productRated 2 out of 5 stars4 years agoNot what i wanted but works
Fan works good but is NOT a 2 speed
- KKelseyVerified BuyerReviewingHessaire 24 Inch Shutter Mounted Exhaust FanI recommend this productRated 5 out of 5 stars3 years agoGreat price for American Made Fan
We run a small dairy and needed to replace a fan motor that had died. We try to buy local, but were getting quoted ~$250 just for a motor. Nothing could beat this under $300 price for an entire fan, made-in-the-USA on top of that. It was a full $100 less than the bigbox store near us wanted for the same model. Works great, and moves air well. The fully-enclosed motor, powder coating, and aluminum is great for the dust and rust that come with farming. Might pick one up for the shop as well. The delivery time was also much shorter than what was estimated - great service! The motor does get a little warm when run on the high setting but hasn't caused any trouble after a month of heavy usage. It moves so much air compared to the old fan, even on low, that we often turn it down on the sub-80 degree days.
