iLiving 10 inch Variable Speed Wall Mounted Shutter Exhaust Fan
iLiving 10 inch Variable Speed Wall Mounted Shutter Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- iLiving 10" Variable Speed Wall Mounted Shutter Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides

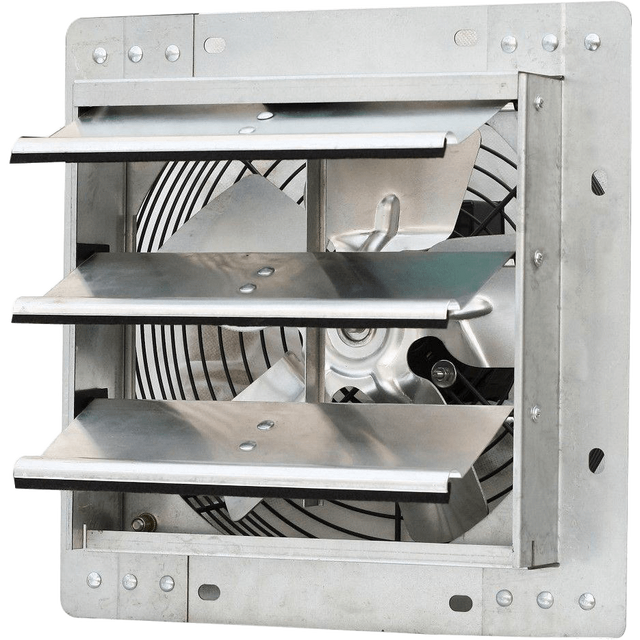

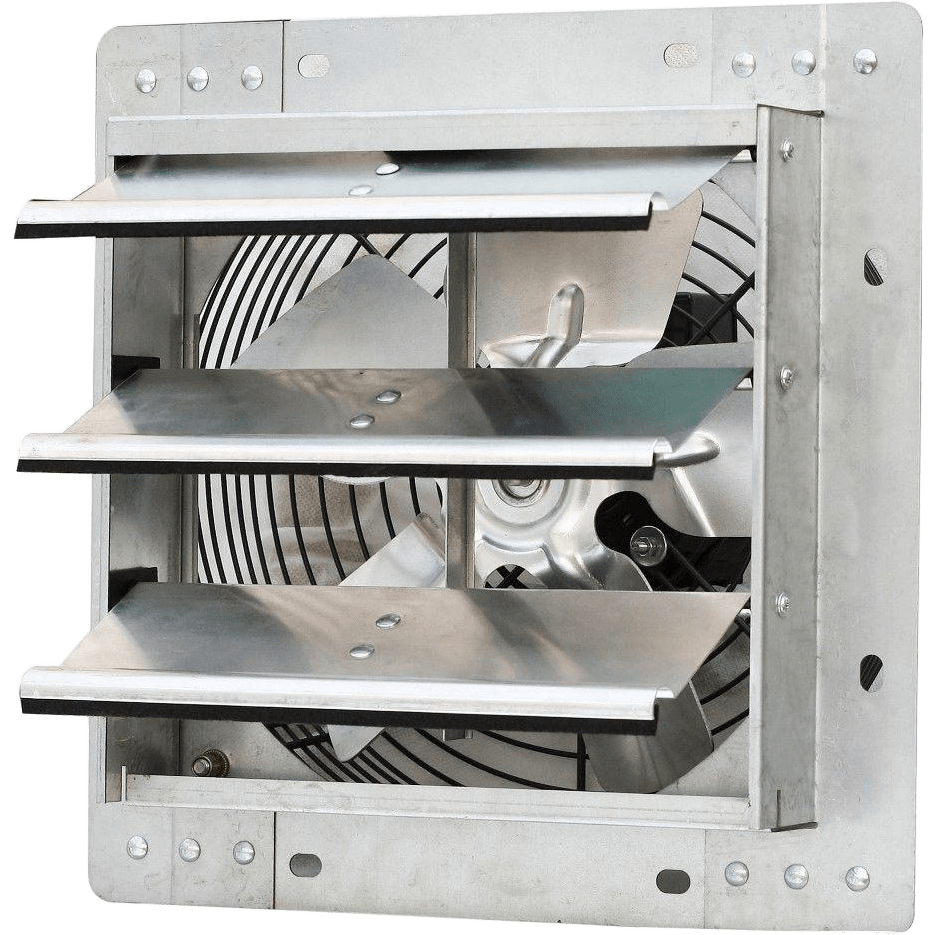

iLiving 10 inch Variable Speed Wall Mounted Shutter Exhaust Fan
Description
Description
The heavy-duty iLiving ILG8SF10V fan features variable power up to 1580 RPM and 600 CFM of power. Quickly and efficiently vent your space, remove excess heat or cold air, and get rid of odors in small commercial areas like restaurants, greenhouses, and barns. It's also commonly used in residential areas like attics up to 150 square feet.
This 10-inch iLiving shutter fan is built-to-last for years of ventilation whenever you need it.
Top iLiving Shutter Fan Features
- Superior airflow with up to 600 CFM of power.
- Heavy-duty design with stainless steel stands up to the test of time.
- Quiet and precise design with fully-enclosed motor keeps the noise level to a minimum.
- Lower heating and cooling costs and utility bills.
- Can we used as a single or variable speed fan.
- Wire to the iLiving Exhaust Fan Smart Remote Control Kit w/ Programmable Thermostat for automatic operation for humidity and temperature presets.
Common Uses
- Control temperature and humidity in greenhouses.
- Ventilate your workshop from dust, lingering odors that can build up in you garage or workshop.
- Regulate your warehouse to keep your inventory safe from heat, humidity and odors.
Control Options
This iLiving variable speed shutter fan requires a variable speed controller or it will operate continuously at high speed. An additional option is to install a thermostat control box which allows you to set the fan to automatically turn on when the space reaches a pre-set temperature.
For a fan operation based on more than one variable, you can install the all-in-one fan controller which includes a timer and humidistat, as well as a thermostat and speed controller. This kit’s control box is connected to the fan and plugged into a nearby outlet. It also comes with a remote control.
Additional Features
- Automatic Shutters: The shutters open when the fan is running and close when it’s not.
- UL Listed: This exhaust fan met and exceeded UL listing requirements.
- Product Dimensions: 4.53 x 13 x 13 inches (LxWxH).
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)6.17
-
TypeShutter Exhaust Fan
-
ApplicationBasement, Garage/Workshop, Crawlspace, Residential, Commercial/Industrial, Attic
-
California Residents⚠ WARNING: This product can expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)600.0
-
Maximum RPM1550
-
Recommended Coverage Area (sq. ft.)600
-
Amperage (Amps)0.55
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)63.25
-
Ceiling or Wall Cutout Length (in.)10.5
-
Ceiling or Wall Cutout Width (in.)10.5
-
Depth (in.)5.0
-
Depth (with front cover) (in.)5.0
-
Height (in.)13.0
-
Height (with front cover) (in.)13.0
-
Shutter Fan Size (in.)10
-
Weight (lbs.)7.4
-
Width (in.)13.0
-
Width (with front cover) (in.)13.0
-
Additional FeaturesMeets OSHA Standards, Thermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
