iLiving 7 inch Variable Speed Crawl Space Ventilator Fan
iLiving 7 inch Variable Speed Crawl Space Ventilator Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- iLiving ILG8SF7V
- Owner's Manual
Info & Guides
Info & Guides

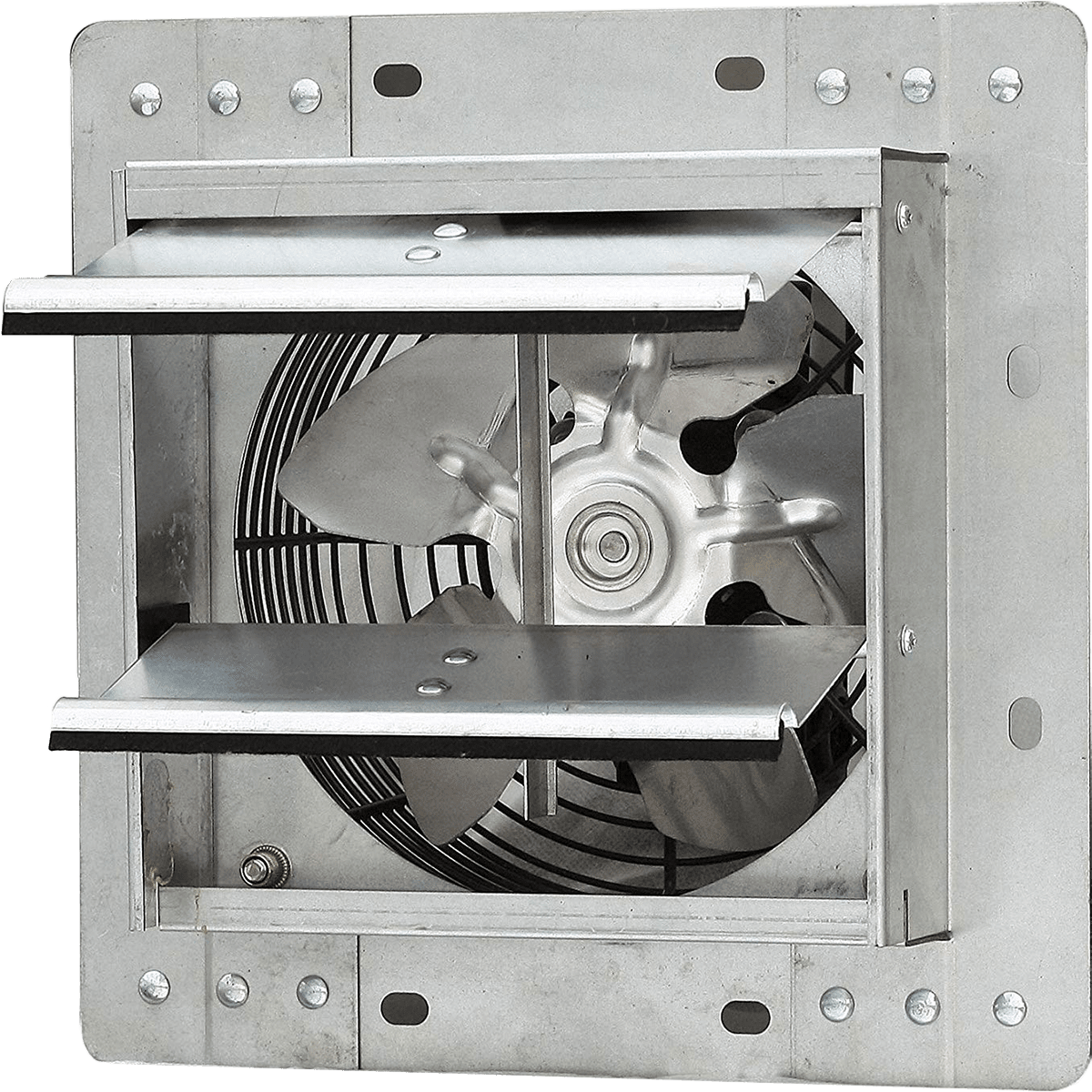

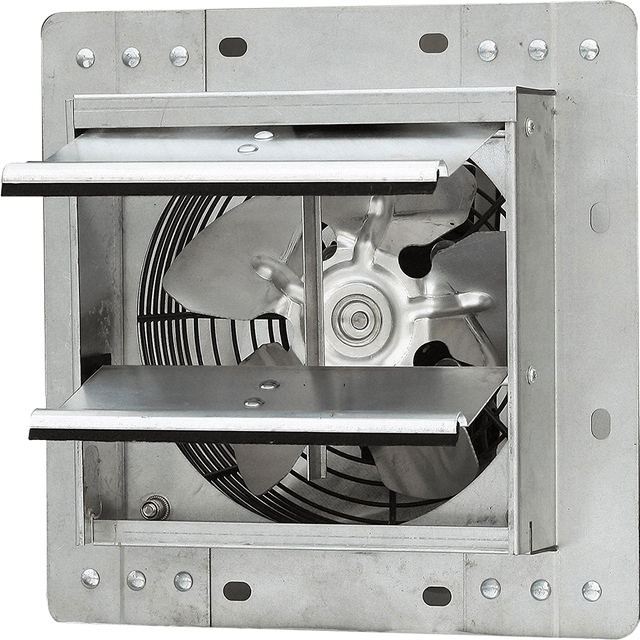

iLiving 7 inch Variable Speed Crawl Space Ventilator Fan
Description
Description
Get complete ventilation for crawl spaces with the iLiving ILG8SF7V. Designed to work in crawl spaces and other tight spaces, this fan ventilates quickly with 242 cubic feet per minute of airflow (CFM). Select your preferred fan speed with the variable fan speed option. The fully-assembled fan is corrosion-resistant and withstands moisture with a completely enclosed motor.
Other features include automatic shutters, OSHA compliance, and more.
Superior Construction
Remove stagnant air and musty smells from crawl spaces with this fully assembled fan. Designed to move air with 242 cubic feet per minute (CFM) in crawl spaces, this aluminum fan features:
- Corrosion-Resistant: A corrosion-resistant exterior won’t rust with exposure to the elements.

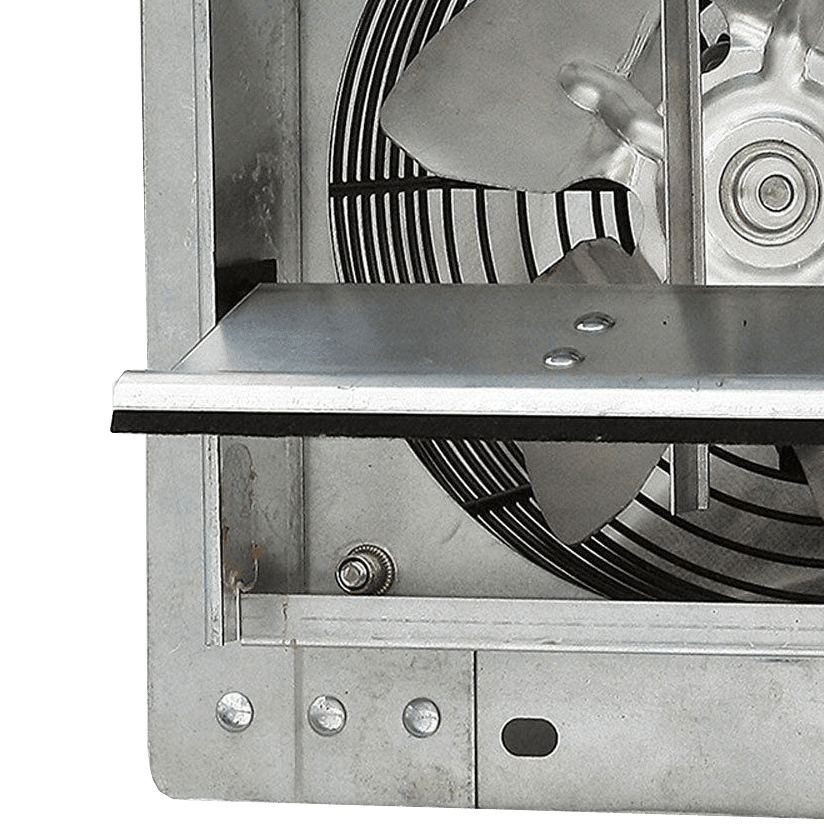

- Automatic Shutters: Automatic aluminum alloy shutters open and close in tandem with the fan operation, and provide insulation from the outside with the rubber-lined louvers.

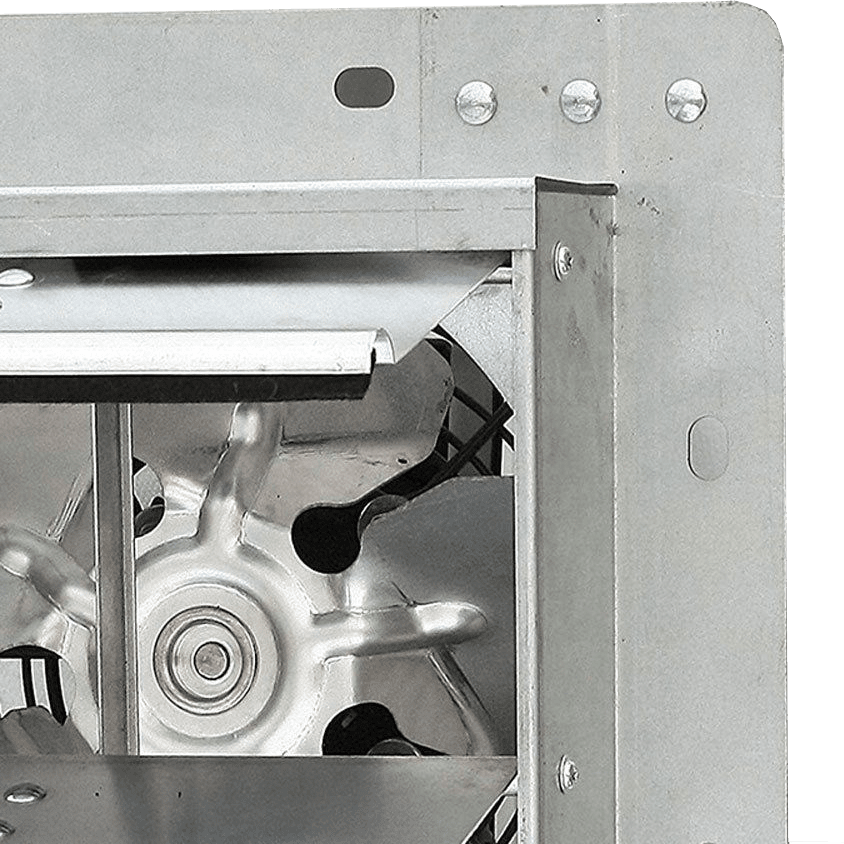

- Fully Assembled: This galvanized steel frame fan comes assembled right out of the box for immediate installation.
- Enclosed Motor: An entirely enclosed, permanently lubricated motor is protected against dust and moisture.
Control Options
This iLiving variable speed shutter fan requires a variable speed controller or it will operate continuously at high speed. An additional option is to install a thermostat control box which allows you to set the fan to automatically turn on when the space reaches a pre-set temperature.
For a fan operation based on more than one variable, you can install the all-in-one fan controller which includes a timer and humidistat, as well as a thermostat and speed controller. This kit’s control box is connected to the fan and plugged into a nearby outlet. It also comes with a remote control.
**Without a variable speed controller, it will operate continuously on a high fan speed.
Additional Features
- Thermal Protection: In case of overheating, this fan will automatically shut off to prevent damage to the motor.
- OSHA Compliant: Adheres to OSHA compliance with ½ inch wire spacing.
- UL-Listed: Designed for safety, this fan carries a UL705 safety certification.
Summary
Exhaust moisture, heat, and musty air from crawl spaces or tight space with the iLiving Crawl Space Ventilator Fan.
What Customers Love
- Crawl Space Ventilation: This seven-inch fan is great for smaller spaces that are difficult to vent.
Things to Consider
- Variable Fan Speed: Use with an eight-amp variable speed controller to utilize the variable fan speed. Without a variable fan speed controller, this fan operates continuously on high.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)2.0
-
ApplicationBasement, Crawlspace
-
California Residents⚠ WARNING: This product can expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Cubic Feet per Minute (CFM) (CFM)242.0
-
Amperage (Amps)0.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)48
-
Depth (in.)11.0
-
Depth (with front cover) (in.)11.0
-
Height (in.)7.0
-
Height (with front cover) (in.)7.0
-
Weight (lbs.)6.5
-
Width (in.)7.0
-
Width (with front cover) (in.)7.0
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
