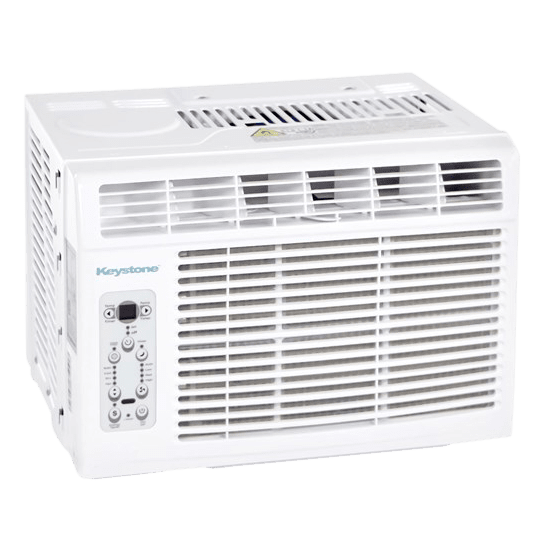

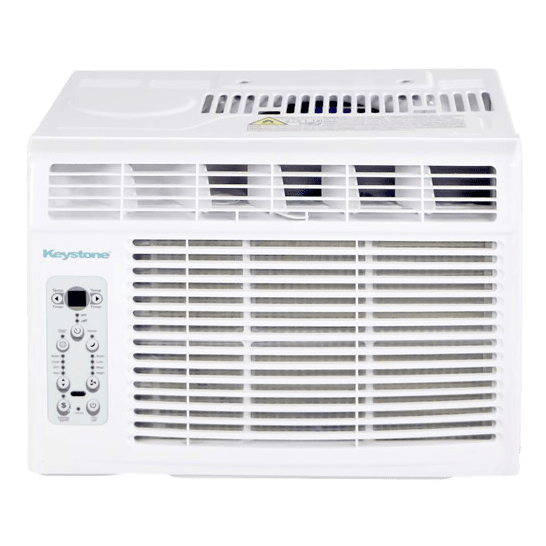

Keystone 10,000 BTU Window Air Conditioner
Keystone 10,000 BTU Window Air Conditioner is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Keystone 10,000 BTU Window Air Conditioner
- Remote Control
- AAA Batteries (x 2)
- Window Installation Kit
- Owner's Manual
Info & Guides
Info & Guides
Keystone 10,000 BTU Window Air Conditioner
Description
Description

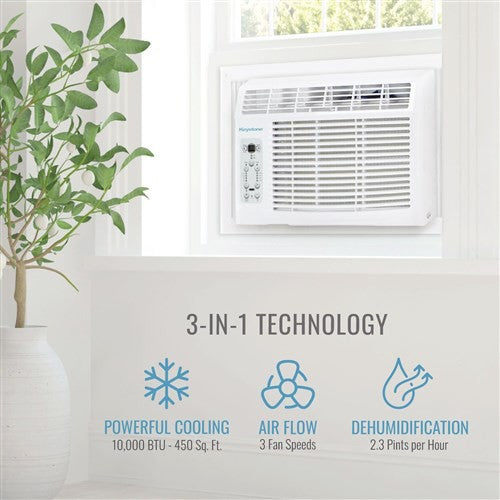

Affordable and energy-efficient, the window mounted Keystone 10,000 BTU Window Air Conditioner delivers 10,000 BTUs of cooling for spaces up to 450 square feet. Great for new installs or replacement of old units, this highly efficient air conditioner features an EER of 12. Great for cooling comfort, it also features a sleep mode, as well as a fan only and dry mode.
Designed for cooling comfort, additional features include LCD remote control, LED display, digital controls, programmable timer, auto restart, and more.
NOTE: This Keystone Window Air Conditioner uses a NEMA 5-15P plug type. This is a 125-volt/15-amp, 3-prong plug with a face that looks like this:
Energy Saving Mode
This air conditioner has an energy saving mode with auto-cooling and auto-dry modes. The energy saving mode cycles the fan on for two minutes at 10-minute intervals, kicking on the compressor when the room temperature climbs above the set thermostat temperature.
User-Friendly Comfort
The energy-efficient air conditioner cools down spaces up to 450 square feet and delivers 10,000 BTUs of cooling. Program the adjustable thermostat between 62 – 90 degrees F, or select the mode that works best.
- Sleep Mode: In this mode, the selected temperature increases two degrees every 30 minutes over six hours before returning to normal presets.
- Cool Mode: Cool in the room temperature to the programed thermostat temperature between 62 – 90 degrees F.
- Dry Mode: The dry mode easily removes up to 2.3 pints of moisture per hour.
- Fan Only: Circulate stagnant air without cooling from the condenser for reduced energy use.
Simple Installation

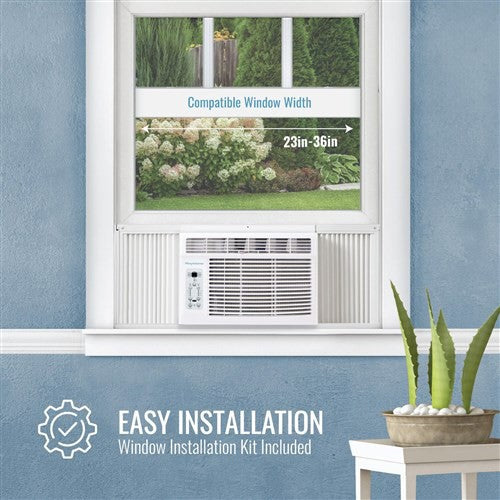

With the included window installation kit, this air conditioner fits standard double-hung windows with a minimum height of 13 inches and horizontal width between 23 – 36 inches.
Additional Features
- Follow Me: This mode detects temperature pockets throughout the room with the remote.
- Digital Controls: Use the onboard digital push buttons to select functions.

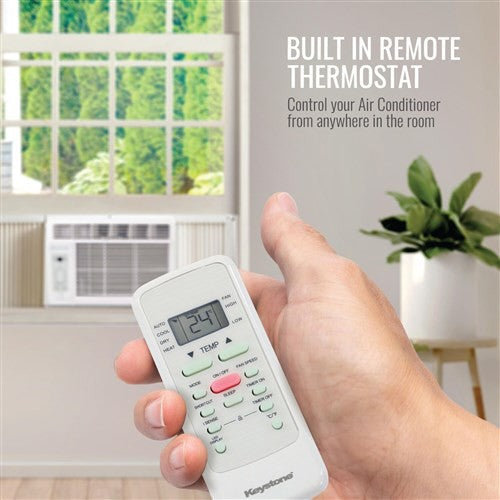

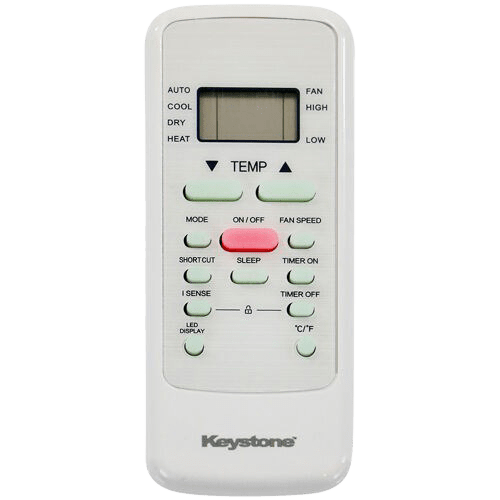

- Remote Control: The backlit LCD remote control displays the timer and temperature.
- Programmable Timer: Program the timer in half hour increments up to 10 hours, or one hour increments up to 24 hours.
- Power Cord: A 6.5-foot GFCI power cord plugs into any standard outlet.
- Overheat Protection: A three-minute delay start prevents overheating when the unit is turned on and off quickly.
- Auto Restart: During a power outage, it will restart to previous presets.
- Adjustable Thermostat: Program the adjustable thermostat between 62 – 90 degrees F.
- Louvers: Move the horizontal louver to adjust airflow.
- Fan Speed: Select between three fan speeds for cooling, fan only, and dry mode.
- Mesh Filter: A washable, removable mesh filter is included.
- Clean Filter Indicator: Select the clean filter indicator for filter cleaning reminders.
- Fahrenheit/Celsius: Choose between Fahrenheit or Celsius degree readout.
- UL-Rated: Certified and rated for safety, it comes with a UL-rating.
Summary
Get powerful cooling and more for living areas up to 450 square feet with 10,000 cooling BTUs with the Keystone 10,000 BTU Window Air Conditioner.
Things to Consider
- Installation: Installation takes about an hour and requires two people for install.
- No Heat: If you prefer an option for heat, be sure to review the year-round models with heat included.
Specifications
Specifications
-
ASHRAE Cooling Power (BTUs)[10000]
-
Energy Efficiency Ratio (EER)12
-
Number of Speeds3
-
Window Installation TypeSingle/Double Hung
-
California Residents⚠ WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL
-
Chassis TypeSlide-Out
-
Circuit Breaker Rating115V-15A
-
ColorWhite
-
ControlsElectronic
-
Estimated Yearly Operating Cost75
-
Heat ModeNo
-
Heating BTUs (BTUs)0
-
Maximum Cubic Feet per Minute (CFM) (CFM)285.0
-
Maximum Noise Level (dB)59.5
-
Maximum Operating Temperature - Cooling (degrees F)109
-
Minimum Noise Level (dB)59.5
-
Minimum Operating Temperature - Cooling (degrees F)64
-
Moisture Removal per Hour (pints)2.3
-
Recommended Coverage Area (sq. ft.)450
-
Refrigerant TypeR-32
-
Maximum Cooling Amperage (Amps)7.5
-
Maximum Cooling Wattage (W)833
-
Maximum Heating Amperage (Amps)0
-
Maximum Heating Wattage (W)0
-
Plug Face Type5-15P
-
Power Cord Length (ft.)6.5
-
Voltage (V)110-120
-

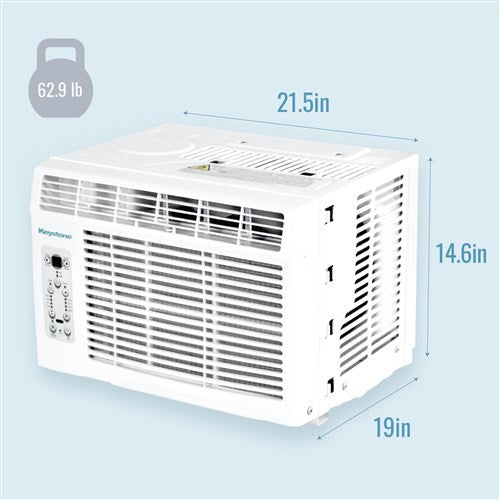

Depth (in.)19.0
-
Depth (with front cover) (in.)19.0
-
Height (in.)14.6
-
Height (with front cover) (in.)14.6
-
Maximum Window Height (in.)50
-
Maximum Window Width (in)36.0
-
Minimum Window Height (in.)15.5
-
Minimum Window Width (in)23.0
-
Weight (lbs.)59.8
-
Width (in.)21.5
-
Width (with front cover) (in.)21.5
-
Additional FeaturesProgrammable Timer, Remote Control, Installation Kit Included, Air Filter, Fan-Only Mode, Dehumidifier Mode, Sleep Mode, Auto-Restart
-
Manufacturer's Warranty1-Year Limited Warranty
