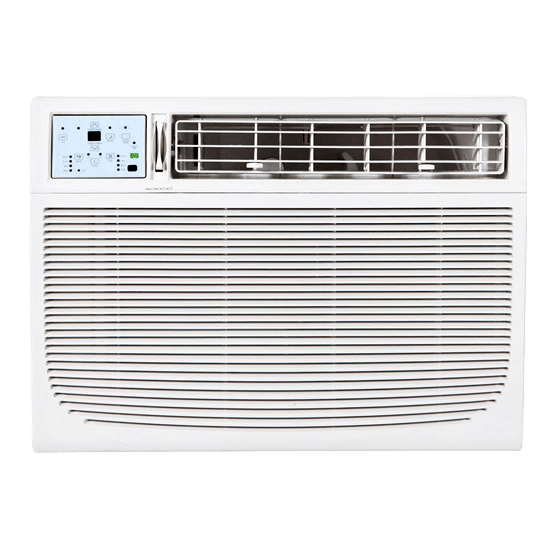

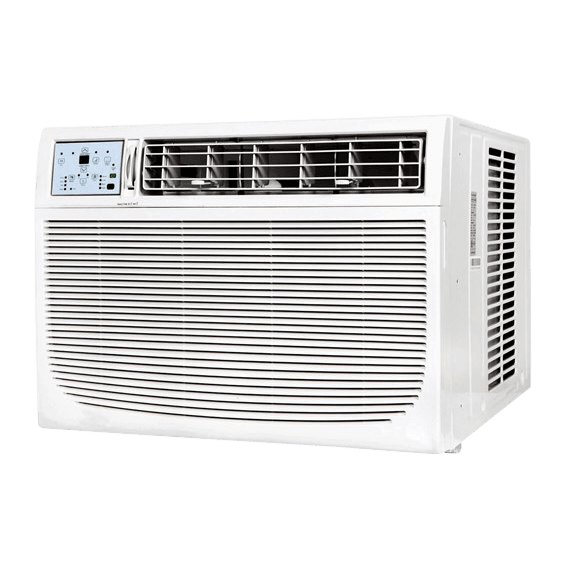

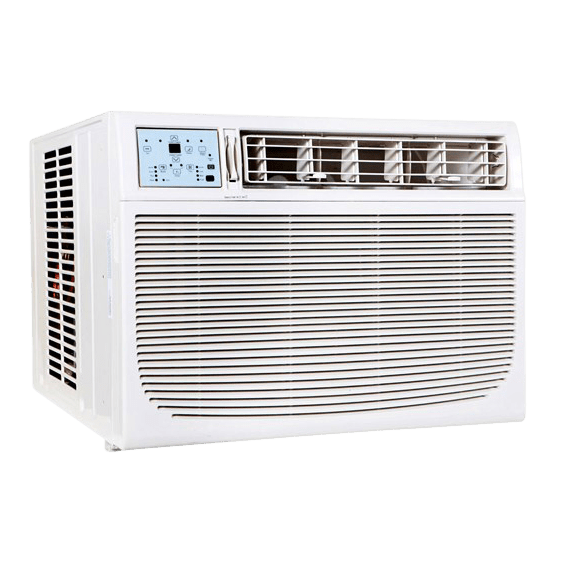

Keystone 18,000 BTU Window Air Conditioner

SKU: ke11607  |  Model: KSTAW18C
$749.99 $799.99

FREE shipping on orders over $45!

In Stock Usually ships in 1 business days.



Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Warranty

What's In The Box?

  • Keystone 18,000 BTU Window AC or Window AC w/ Heat
  • Remote Control
  • Installation Kit
  • Owner's Manual

Info & Guides

Description

The Keystone 18,000 BTU Window Air Conditioner or Air Conditioner with Heat give you the choice of a cooling unit only or a unit with both cooling and heating functionality to best fit your climate.

Both units have a slide-out chassis for easy installation and can be fitted into a double-hung window or installed through the wall.

*Note: The KSTAW18C (Cooling) unit requires 230V/20A power supply and has a NEMA 6-20P plug face. The KSTAW18A (Cooling & Heating) unit requires a 230V/30A power supply has a NEMA 6-30P plug face.

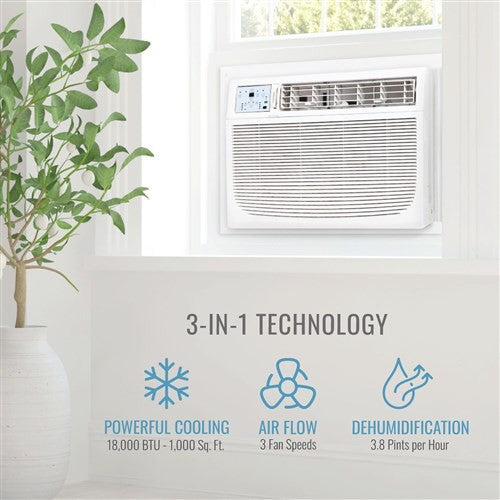

Multi-Mode Functionality

As the season change, so does your need for indoor climate comfort. With many folks still working from home, this can include home offices or work spaces as well as living areas, bedrooms, and kitchens—any area up to 1,000 sq. ft. The Keystone 18,000 BTU window units offer multiple ways to control your indoor air for maximum comfort.

  • Cooling: You will have 18,000 BTU’s of cooling capacity to fight back against summer heat waves. Select from 3 fan speeds.
  • Dehumidify: Remove up to 3.8 pints of moisture per hour for days when humidity levels soar.
  • Fan Only: Spring and Fall days can be breezy and mild and you can take advantage by adding fresh air to your space using the air vent and fan mode.
  • Heating: With the Keystone KSTHW18A model, you also have 16,000 BTU’s of supplemental heating power for year-round use and cozy comfort. Heating operates at a single fan speed.

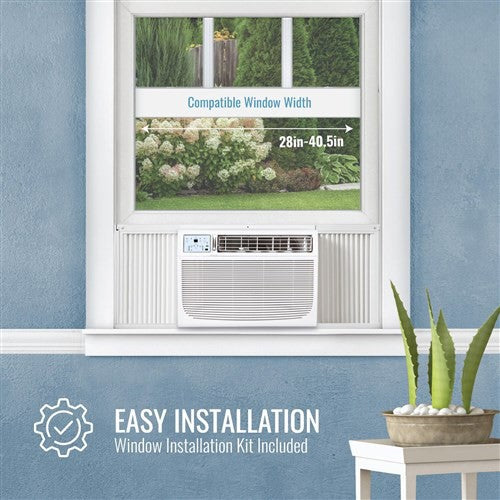

Installation Options

These unit can be easily installed in any double-hung window with a minimum width of 28 inches and a maximum width of 40.5 inches. The slide-out-chassis makes it simple to install without the weight of the unit, then slide the AC in to finish up.

You also have the option of installing these AC’s through the wall should you not have a window available in the space you want to cool, or if the window is too small for the unit.

Extra Operating Modes

Additional modes of operation help you conserve energy, enjoy uninterrupted sleep, or complete “hands-off” use.

  • Energy Saver: To conserve energy and save money, use this mode for more limited compressor use and coordinated use of the fan to lower the temperature at a slower pace.
  • Sleep Feature: In this mode, the set temp will increase (or decrease) by 2° F 30 minutes after selection. After another 30 minutes it will change again and remain steady for 6 hours before returning to the original set temperature.
  • Auto Feature: This allows you to set the temperature and forget about fan speed or switching modes. The unit will automatically adjust to maintain your set temperature, while still allowing you to select a different fan speed if desired.

Additional Features

  • Electronic Controls with LED Display: So easy to see and select the desired temperature and operating mode.

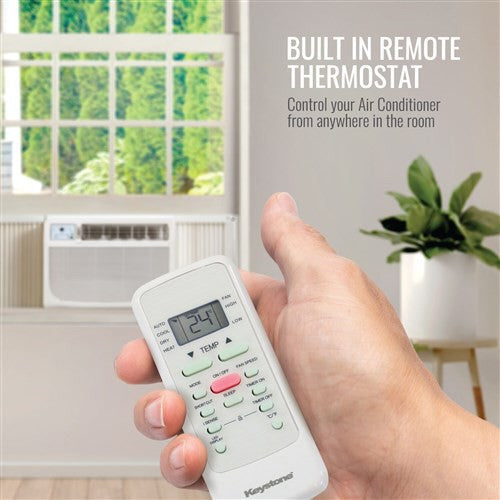

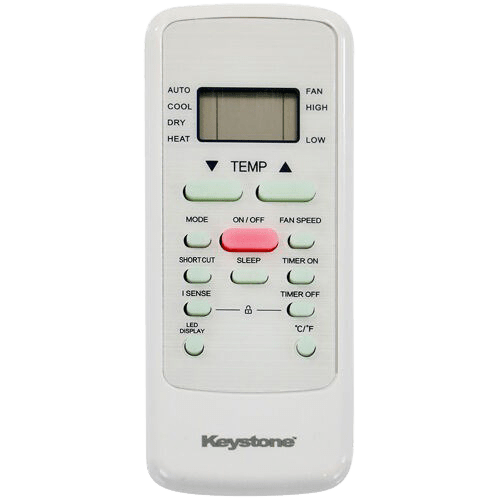

  • Remote Control: The full-function remote control includes a “follow-me” function that records the temperature at the remote location and adjusts operation accordingly.
  • 24 Hour Timer: Use this to start or stop the unit after a pre-set number of hours. You’ll come home to a comfortable space and save money by not using the unit when it isn’t needed.
  • Air Flow Control: Use the 4-way directional air flow control to direct air where it’s most needed.
  • Washable Air Filter: Designed to help trap larger particles and dust, your air will be cleaner as well as cooler. A “check filter” indicator will flash on the control panel when it’s time to clean it.
  • Auto Restart: This feature saves your settings and automatically restarts the AC after a power outage.

Summary

The Keystone 18,000 BTU Window AC (or AC w/ Heat) provide multiple operating modes for maximum comfort year-round. Features remote control, 24-hour timer, and more.

What Customers Love

  • Heat Option: While many think of AC’s only as cooling units, you can select the unit with up to 16,000 BTU’s of supplemental heat.
  • Window or TTW: Install these units in a double-hung window or through the wall, whichever best suits your space.

Specifications

    Key Specifications

    • ASHRAE Cooling Power (BTUs)
      Cooling Only: [18000]
      With Heat: [18800]
    • Energy Efficiency Ratio (EER)
      Cooling Only: 11.8
      With Heat: 10.7
    • Number of Speeds
      3
    • Window Installation Type
      Single/Double Hung

    General

    • California Residents
      ⚠ WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
    • Certifications
      UL
    • Chassis Type
      Slide-Out
    • Circuit Breaker Rating
      250V-20A
    • Color
      White
    • Controls
      Electronic
    • Estimated Yearly Operating Cost
      Cooling Only: 149
      With Heat: 169
    • Heat Mode
      Cooling Only: No
      With Heat: Yes
    • Heater Type
      Electric Coil
    • Heating BTUs (BTUs)
      Cooling Only: 0
      With Heat: 16000
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      Cooling Only: 360.0
      With Heat: 760.0
    • Maximum Noise Level (dB)
      60
    • Maximum Operating Temperature - Cooling (degrees F)
      109
    • Minimum Noise Level (dB)
      54
    • Minimum Operating Temperature - Cooling (degrees F)
      64
    • Minimum Operating Temperature - Heating (degrees F)
      45
    • Moisture Removal per Hour (pints)
      Cooling Only: 3.2
      With Heat: 3.8
    • Recommended Coverage Area (sq. ft.)
      1000
    • Refrigerant Type
      R-32

    Power

    • Maximum Cooling Amperage (Amps)
      Cooling Only: 7.5
      With Heat: 8.3
    • Maximum Cooling Wattage (W)
      Cooling Only: 1500
      With Heat: 1729
    • Maximum Heating Amperage (Amps)
      Cooling Only: 0
      With Heat: 21.8
    • Maximum Heating Wattage (W)
      Cooling Only: 0
      With Heat: 4800
    • Plug Face Type
      6-20P
    • Power Cord Length (ft.)
      6.5
    • Voltage (V)
      208-230

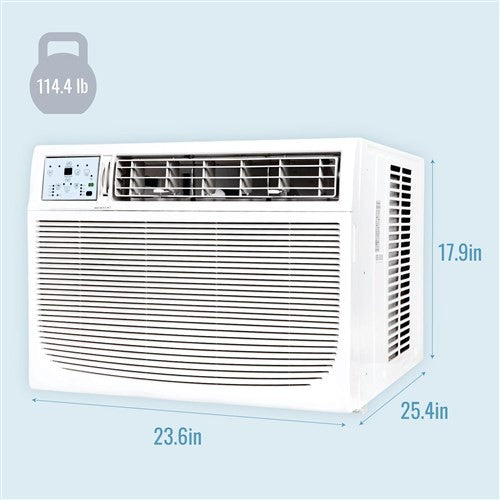

    Dimensions

    • Depth (in.)
      25.4
    • Depth (with front cover) (in.)
      25.4
    • Height (in.)
      17.9
    • Height (with front cover) (in.)
      17.9
    • Maximum Window Width (in)
      40.5
    • Minimum Window Height (in.)
      18.5
    • Minimum Window Width (in)
      28.0
    • Weight (lbs.)
      Cooling Only: 102.3
      With Heat: 117.5
    • Width (in.)
      23.6
    • Width (with front cover) (in.)
      23.6

    Additional Features

    • Additional Features
      Cooling Only: Programmable Timer, Remote Control, Installation Kit Included, Air Filter, Sleep Mode, Auto-Restart
      With Heat: Programmable Timer, Remote Control, Installation Kit Included, Air Filter, Dehumidifier Mode, Sleep Mode, Auto-Restart

    Warranty

    • Manufacturer's Warranty
      1-Year Warranty
