Ruck Air Movement 10-In. Prime EVO EC 1312 CFM Mixed Flow Inline Duct Fan
Ruck Air Movement 10-In. Prime EVO EC 1312 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 10-inch Prime EVO EC Mixed Flow Inline Duct Fan
- Mounting Bracket
- Owner's Manual
Info & Guides
Info & Guides
Ruck Air Movement 10-In. Prime EVO EC 1312 CFM Mixed Flow Inline Du...
Description
Description

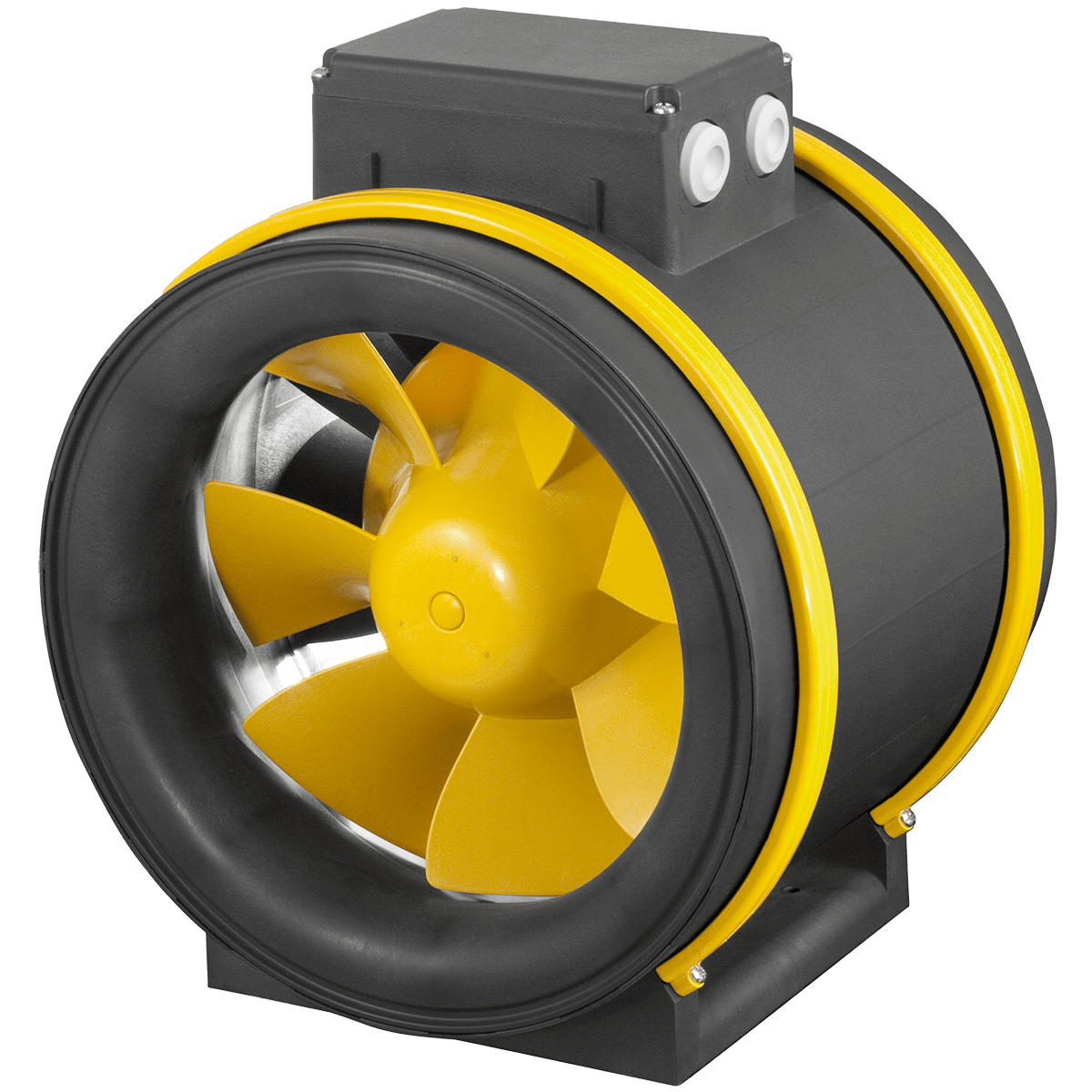

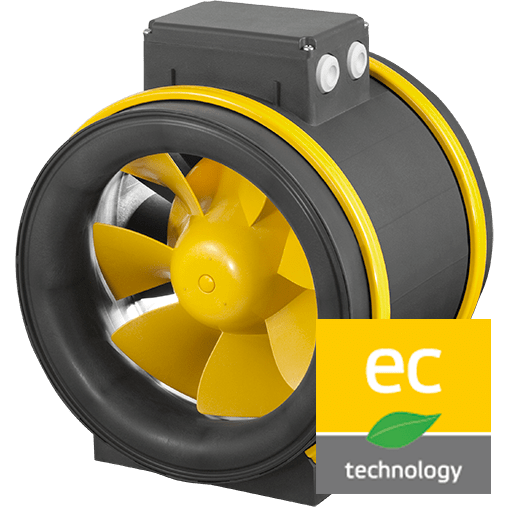

The Ruck 10-inch Prime EVO EC Mixed Flow Inline Duct Fan boasts a powerful EC motor with the highest efficiency. Designed with 3D shaped impeller blades for top aerodynamic operation.
Manufactured in Germany, this fan is ETL-listed and costs less to operate than traditional centrifugal fans.
Efficient Ventilation
Pulling only 3.5 amps at maximum operation, the Prime EVO EC fan can run at as much as 3870 RPM, producing up to 1312 CFM.
Features & Highlights
- 10-inch Duct Fan
- 3D Shaped Impeller Blades
- Corrosion Resistant Plastic Housing
- 0-10V Speed Control
- IP30 Motor
- IP44 Terminal Box
- Minimum Operating Temperature of -22° Fahrenheit (-30° C)
- Maximum Operating Temperature of 140° Fahrenheit (60° C)
- Included Mounting Bracket
- Motor is protected in the Hub
Summary
The Ruck Air Movement Prime EVO EC Mixed Flow Inline Duct Fan is available in this 10-inch duct size. Equipped with corrosion-resistant housing, 0-10V speed control, and aerodynamic design. Also available in 6-inch, 8-inch, 12-inch, 14-inch, and 16-inch duct sizes.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)68.0
-
TypeLow Noise Inline Duct Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorBlack
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)1312.0
-
Amperage (Amps)3.5
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)298
-
Depth (in.)11.26
-
Depth (with front cover) (in.)11.26
-
Duct Diameter (in.)10.0
-
Height (in.)14.02
-
Height (with front cover) (in.)14.02
-
Weight (lbs.)12.57
-
Width (in.)8.9
-
Width (with front cover) (in.)8.9
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
- JJosephVerified BuyerReviewingRuck Air Movement 10-In. Prime EVO EC 1312 CFM Mixed Flow Inline Duct FanI recommend this productRated 5 out of 5 stars1 year agoGreat little fan
Installed as part of a kitchen range hood install. The fan itself is high quality. The housing and empeller are plastic, but they don't feel cheap. This version I purchased is a bit odd because it came with an on/off switch and plug-in, but I was easily able to wire it to a external EC potentiometer and a hardwired power source (for context, I'm a DIYer). You'll likely want to know about the fan noise. It's very quiet to start. When you start cranking it up (say 20-30%), there is a higher pitched hum that is noticeable. However, this isn't a big issue for us since the motor is housed in another room in an enclosed space (but keep that in mind - they do have a silenced version but is considerably larger because its housed in a steel tube). As you crank up the speed, the loudest part of the system is actually the wind being sucked through the range hood baffles (and not the motor itself). Very powerful EC motor. Generally, if you're on the fence about EC, I would make the jump. Having ""infinite"" control over the fan makes a huge difference. I also learned the hard way but AC motors will generate a loud electrical hum when you are throttling the speed down from 100% just by the nature of how AC motors work. I did a bit of research and the company is based in Germany and its primary market is the EU and UK, so you wouldn't necessarily hear a whole lot about Ruck. The US website is also a bit lacking so there's probably a lot more you can find at at www.ruck.eu (you'll need…
