Ruck Air Movement 16-In. Prime EVO EC 3354 CFM Mixed Flow Inline Duct Fan

SKU: ru14531  |  Model: 147779
$1,413.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.


Add extended protection plan. (Select one)

learn more

A 2-year major appliance warranty for products less than $1,500.

learn more

A 4-year major appliance warranty for products less than $1,500.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Warranty

What's In The Box?

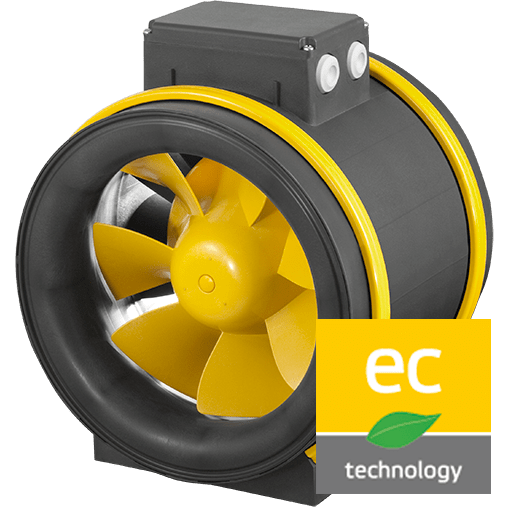

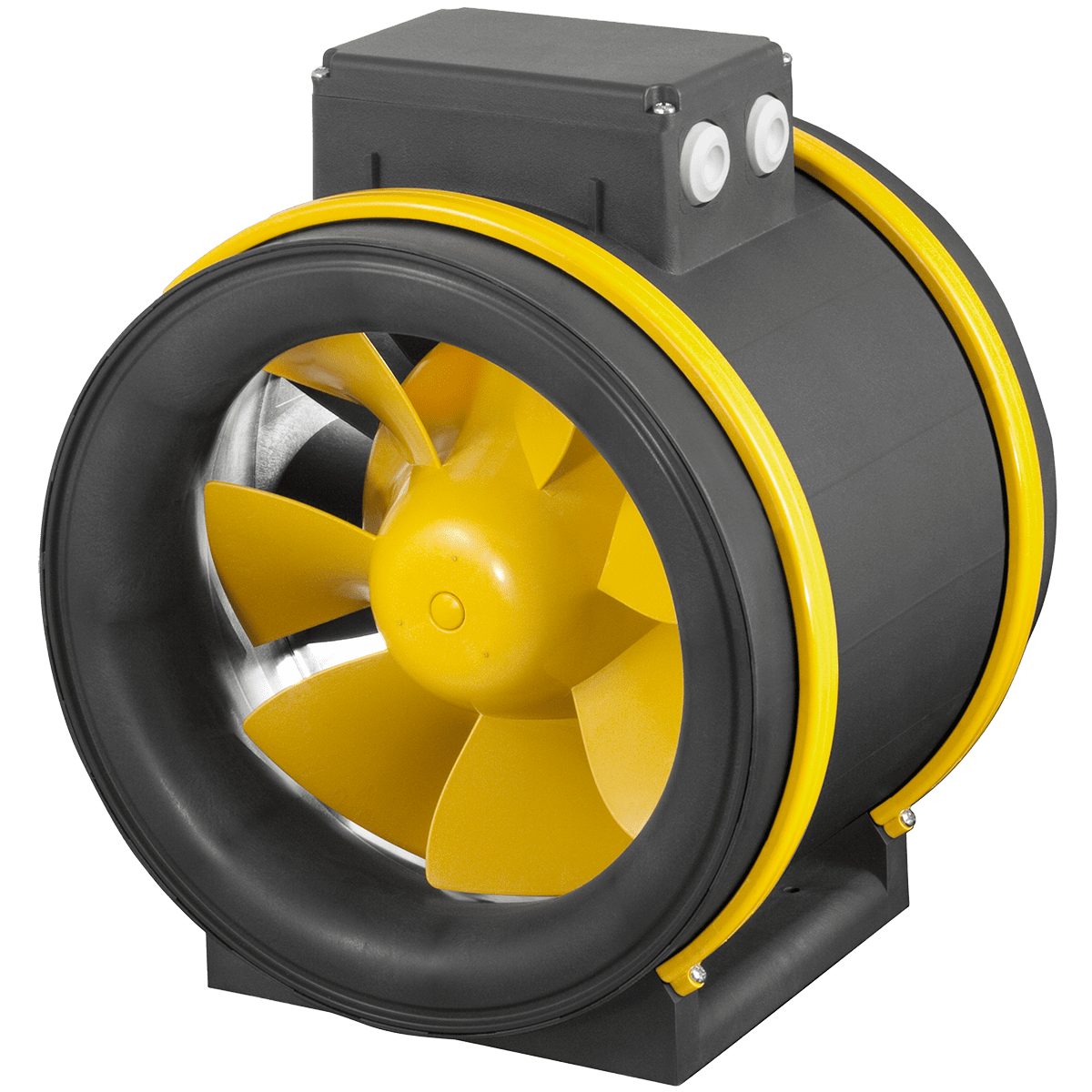

  • Ruck Air Movement 16-inch Prime EVO EC Mixed Flow Inline Duct Fan
  • Mounting Bracket
  • Owner's Manual

Info & Guides

Description

The Ruck 16-inch Prime EVO EC Mixed Flow Inline Duct Fan boasts a powerful EC motor with the highest efficiency. Designed with 3D shaped impeller blades for top aerodynamic operation.

Manufactured in Germany, this fan is ETL-listed and costs less to operate than traditional centrifugal fans.

Efficient, Silent Ventilation

Pulling only 3.4 amps at maximum operation, the Prime EVO EC fan can run at as much as 2290 RPM, producing up to 3354 CFM.

Features & Highlights

  • 16-inch Duct Fan
  • 3D Shaped Impeller Blades
  • Corrosion Resistant Plastic Housing
  • 0-10V Speed Control
  • IP20 Motor
  • Minimum Operating Temperature of -22° Fahrenheit (-30° C)
  • Maximum Operating Temperature of 140° Fahrenheit (60° C)
  • Included Mounting Bracket
  • Motor is protected in the Hub

Summary

The Ruck Air Movement Prime EVO EC Mixed Flow Inline Duct Fan is available in this 16-inch duct size. Equipped with corrosion-resistant housing, 0-10V speed control, and aerodynamic design. Also available in 6-inch, 8-inch, 10-inch, 12-inch, and 14-inch duct sizes.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      80.0
    • Type
      Low Noise Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      UL, CSA
    • Color
      Black
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      3354.0

    Power

    • Amperage (Amps)
      3.4
    • Power Supply
      Hardwired
    • Voltage (V)
      220-240
    • Watts (W)
      729

    Dimensions

    • Depth (in.)
      14.37
    • Depth (with front cover) (in.)
      14.37
    • Duct Diameter (in.)
      16.0
    • Height (in.)
      19.29
    • Height (with front cover) (in.)
      19.29
    • Weight (lbs.)
      25.58
    • Width (in.)
      19.29
    • Width (with front cover) (in.)
      19.29

    Additional Features

    • Additional Features
      Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      3-Year Warranty
