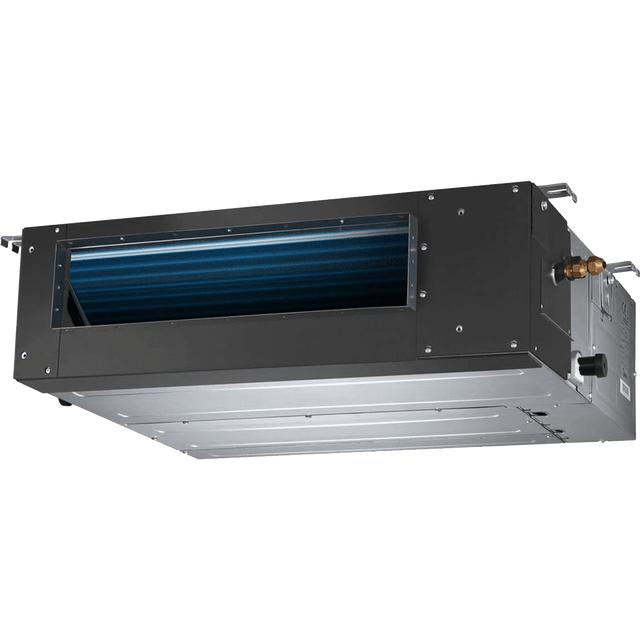

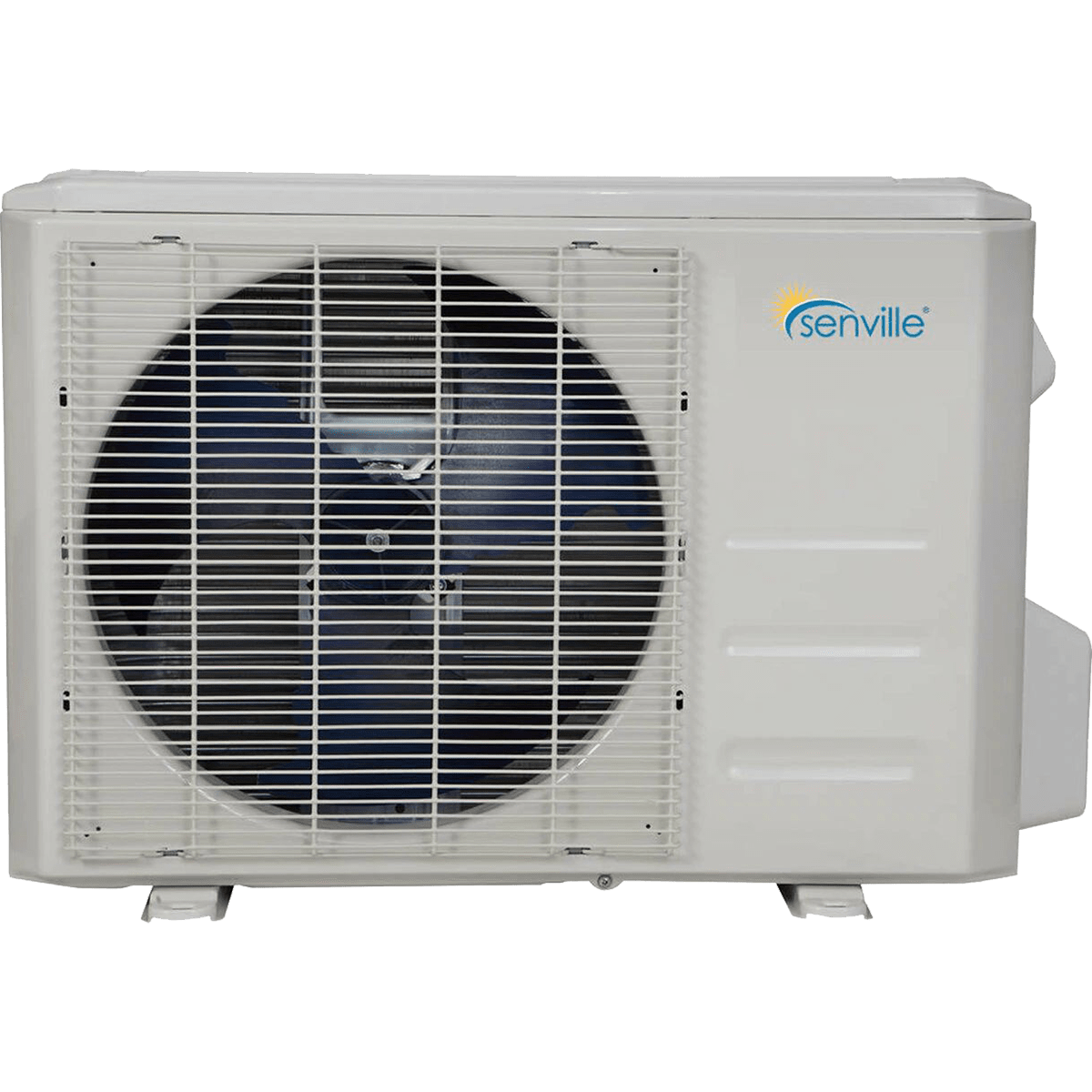

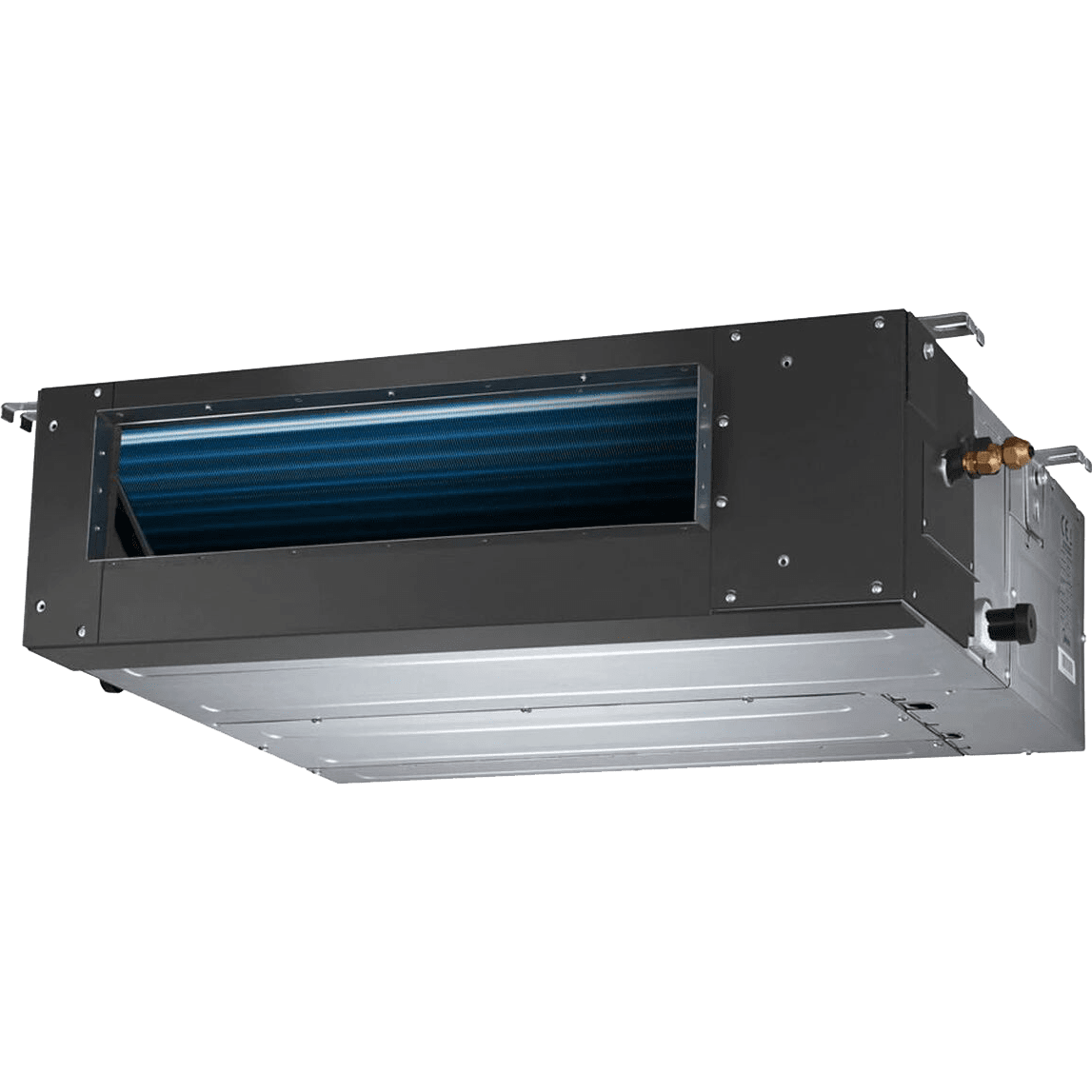

Senville 24,000 BTU Concealed Mini Split Heat Pump
Senville 24,000 BTU Concealed Mini Split Heat Pump is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Senville 24,000 BTU Concealed Mini Split Heat Pump
- Owner's Manual
- Installation Manual
- Remote Control Manual
- Remote Control
- Installation Kit
Info & Guides
Info & Guides
Description
Description
For the ultimate in year-round comfort, choose the powerful Senville 24,000 BTU Concealed Mini Split Heat Pump. This efficient ductless system is capable of cooling and heating rooms as large as 1,400 square feet making it perfect for large residential spaces as well as light commercial applications. Its concealed design means that only the front grille is visible in your room, making it a perfect comfort solution for heavily used areas.
Energy Star Rated Comfort
With a Seasonal Energy Efficiency Ratio (SEER) of 20.6, this Energy Star-rated Senville concealed mini split helps to reduce your routine cooling and heating costs. It’s also designed with a variable inverter compressor that graduates the compressor speed, conserving energy when compared with other air conditioners that turn on and off.
Large Area Comfort Every Day of the Year
One of the popular features of the Senville 24,000 BTU Concealed Mini Split is its ability to create a comfortable indoor environment every day of the year. With multiple operating modes, you have the perfect temperature all year long.
- Cool Mode: Up to 24,000 BTUs of cooling power fight back against rising summer temperatures.
- Heat Mode: Engage this mode for comfortable warmth on even the coldest days.
- Dry Mode: When your room starts to feel a little stuffy, this mini-split can remove excess moisture from the air.
- Fan Mode: Three different fan speeds are great for circulating air and conserving energy when cooling or heating isn’t needed.
Why Choose a Concealed Mini Split?
Concealed mini splits, like the Senville SENA-24HF-ID-16, are the perfect choice for home and business owners who desire a more discreet cooling and heating solution. Unlike other mini-split options, the Senville Concealed Mini Split is designed so that most of its major components are installed behind a wall, ceiling, attic, or crawl space, leaving the system almost completely out of sight.
Additional Features
- Installation Materials: This unit comes with a 16-foot line set that’s pre-charged and features all the necessary piping for installation.
- Maintenance Made Easy: Its onboard diagnostics provide routine maintenance reminders and keep you alerted to any potential issues.
- Long Warranty: Has a 10-year compressor warranty and 5-year warranty on all other parts.
- Cleaner Air: Its silver ion anti-microbial filter removes allergens and irritants from the air.
- Swing Function: Use its vertical swing function to easily distribute air throughout your space.
- Low Ambient Temps: For sensitive areas where cooling is needed even in the heart of winter, this mini split can cool even when outside temperatures are as low as -22 degrees Fahrenheit.
- Follow Me Function: Found on the remote control, this feature allows it to operate as a remote thermostat for optimal temperature control.
Summary
Cool the largest of living spaces, and even light commercial spaces, with ease when you choose the Senville SENA-24HF-IDQ16 Concealed Mini Split.
What Customers Love
- Concealed Design: Its concealed design allows this mini split to deliver powerful cooling and heating without being an eyesore.
- Easy to Operate: The included remote control and multiple operating modes make it easy to find the perfect temperate in any season.
Things to Consider
- Additional Line Set Length: This unit comes with a standard 16-foot line set. For additional line set length, consider the compatible Senville PJX-3-15 50 Ft. Insulated Line Set.
Specifications
Specifications
-
AHRI Estimated Annual Cooling Cost158
-
AHRI Estimated Annual Heating Cost441
-
Energy Efficiency Ratio (EER)12.5
-
Mounting TypeConcealed
-
Number of Speeds3
-
Total Cooling Capacity (BTUs)24000
-
Total Heating Capacity (BTUs)24000
-
California Residents⚠ WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationsUL
-
ColorGray, White
-
Compressor TypeInverter
-
Heat ModeYes
-
Installation TypeProfessional Installation
-
Maximum Cubic Feet per Minute (CFM) (CFM)776.0
-
Maximum Indoor Noise Level (dB)44
-
Maximum Operating Temperature - Cooling (degrees F)90
-
Maximum Operating Temperature - Heating (degrees F)86
-
Minimum Operating Temperature - Cooling (degrees F)62
-
Minimum Operating Temperature - Heating (degrees F)32
-
Number of Zones1
-
Recommended Coverage Area (sq. ft.)1400
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)27800
-
Zone Heating Capacity (BTUs)32200
-
Maximum Cooling Amperage (Amps)8.52
-
Maximum Cooling Wattage (W)1920
-
Maximum Heating Amperage (Amps)8.19
-
Maximum Heating Wattage (W)1846
-
Voltage (V)208-230
-
Included Line Length (ft.)16
-
Indoor Unit Depth (in.)30
-
Indoor Unit Height (in.)10
-
Indoor Unit Width (in.)43
-
Maximum Line Length (ft.)50
-
Outdoor Unit Depth (in.)10.83
-
Outdoor Unit Height (in.)21.26
-
Outdoor Unit Width (in.)33.86
-
Additional FeaturesRemote Control, Energy Star, Automatic Oscillation, Air Filter, Line Set Included, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's Warranty
10 Year Compressor / 5 Year Parts Warranty
