Description

The S&P SWF-200 8-inch Sidewall Fan provides reliable ventilation performance in high static pressure applications. This fan is installed on an exterior wall and should be used in cases where traditional inline fans are incompatible due to space constraints.

Manufactured using high-grade galvanized steel and a baked enamel coating, the SWF-200 offers durability and resilience against the elements. This system connects directly to 8-inch round ductwork and keeps fan noise to a minimum, thanks to the exterior installation.

Top Features

High Static Pressure: The SWF-200 delivers an efficient airflow of up to 368 CFM in ducted systems with static pressure up to 1.5-inch w.g.

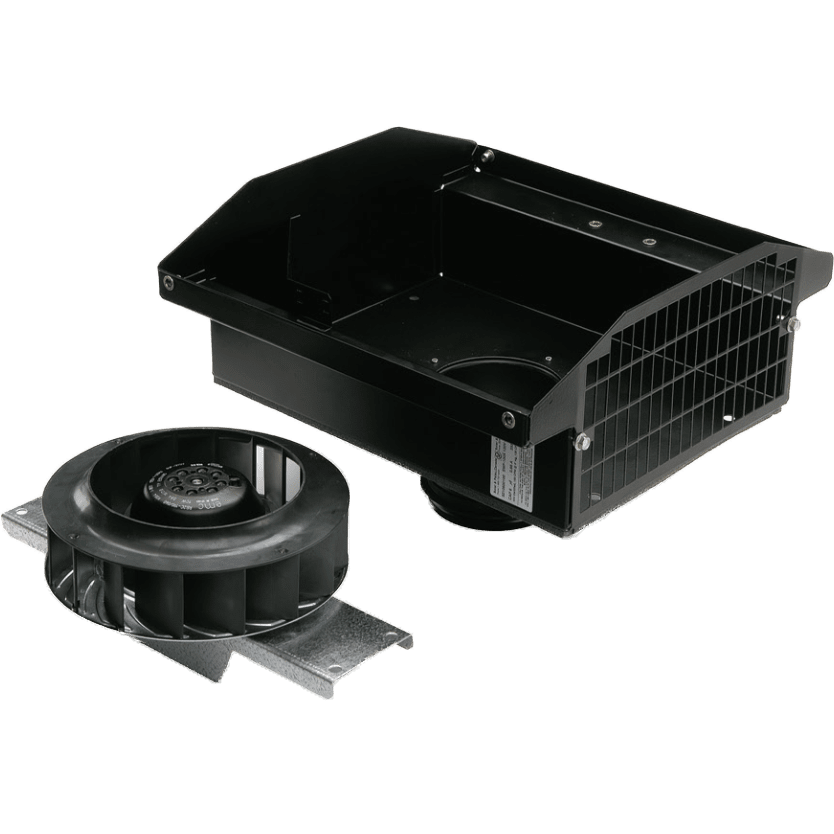

Easy Maintenance: The removable top allows convenient access to the motor for cleaning and inspection.
Durable Construction: The exterior housing is outdoor rated and made from high-grade galvanized steel with a baked enamel coating for long-lasting performance.
Efficient Performance: The non-overloading backward-inclined wheel is designed for optimal efficiency at higher static pressures.

Additional Features

Speed Controllable: It is compatible with voltage or frequency control regulators for adjustable speed settings.
Built-in Backdraft Damper: The built-in backdraft damper prevents debris and insects from entering the ductwork.
Pre-wired Terminal Box: The pre-wired terminal box simplifies the electrical connection process, making installation straightforward.
Large Grill Opening: A large grill opening facilitates the easy passing of lint and other materials, reducing clogging and maintenance needs.
Powerful Motor: The SWF series has an enclosed permanent split capacitor external rotor motor, which allows it to operate even using airflows with a high moisture, lint, and dust content.
Thermal Protection: It has an automatic reset type thermal overload protection for added safety.

Sylvane’s Expert Take

Contractors, builders, and end users will appreciate the power and flexibility of S&P’s SWF-200 8-inch Sidewall Fan. This powerful exhaust fan is easy to install on exterior walls, quick to maintain, and provides a durable and space-saving ventilation solution.

Durable Housing: This fan's exterior housing can withstand the elements and is made of outdoor-rated galvanized steel with a baked enamel coating.

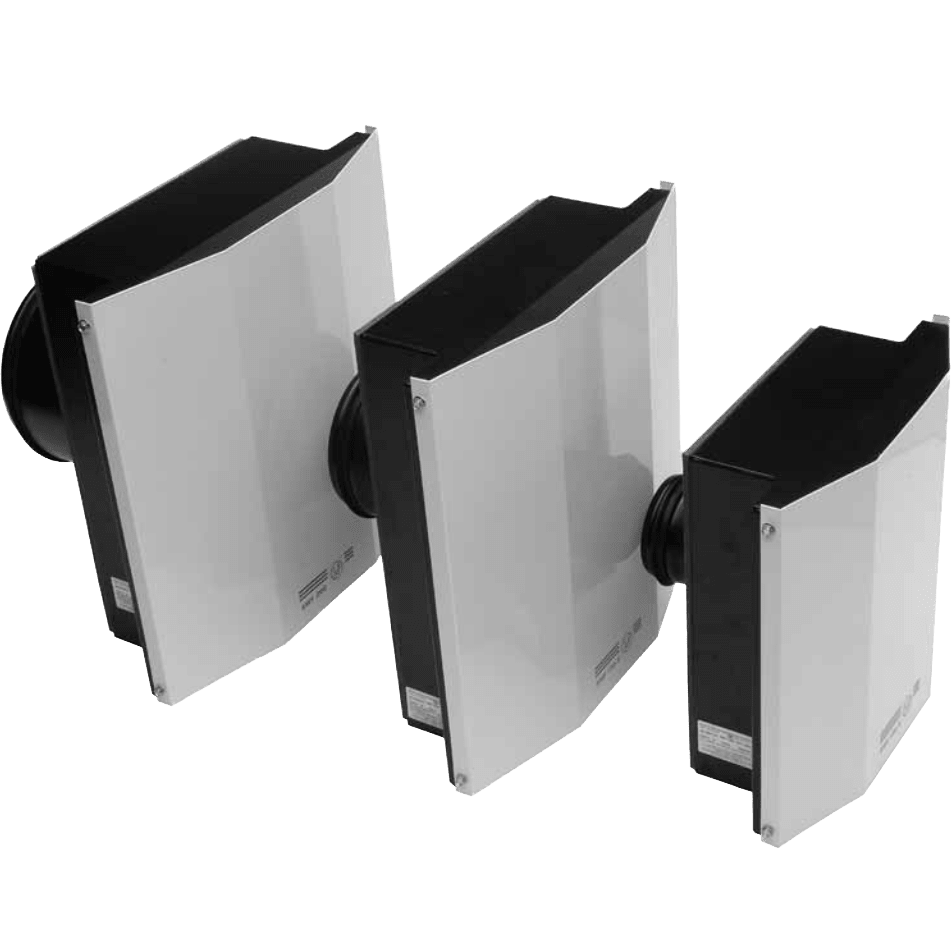

Other Sizes: Customers should also consider the SWF-100(X) and SWF-150(X) Sidewall Fan.

Specifications

Key Specifications

Number of Speeds

1
Type

Sidewall Exhaust Fan

General

Application

Residential, Ducting
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

UL, cUL, HVI, cULus
Color

White
Controls

Manual
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

416.0
