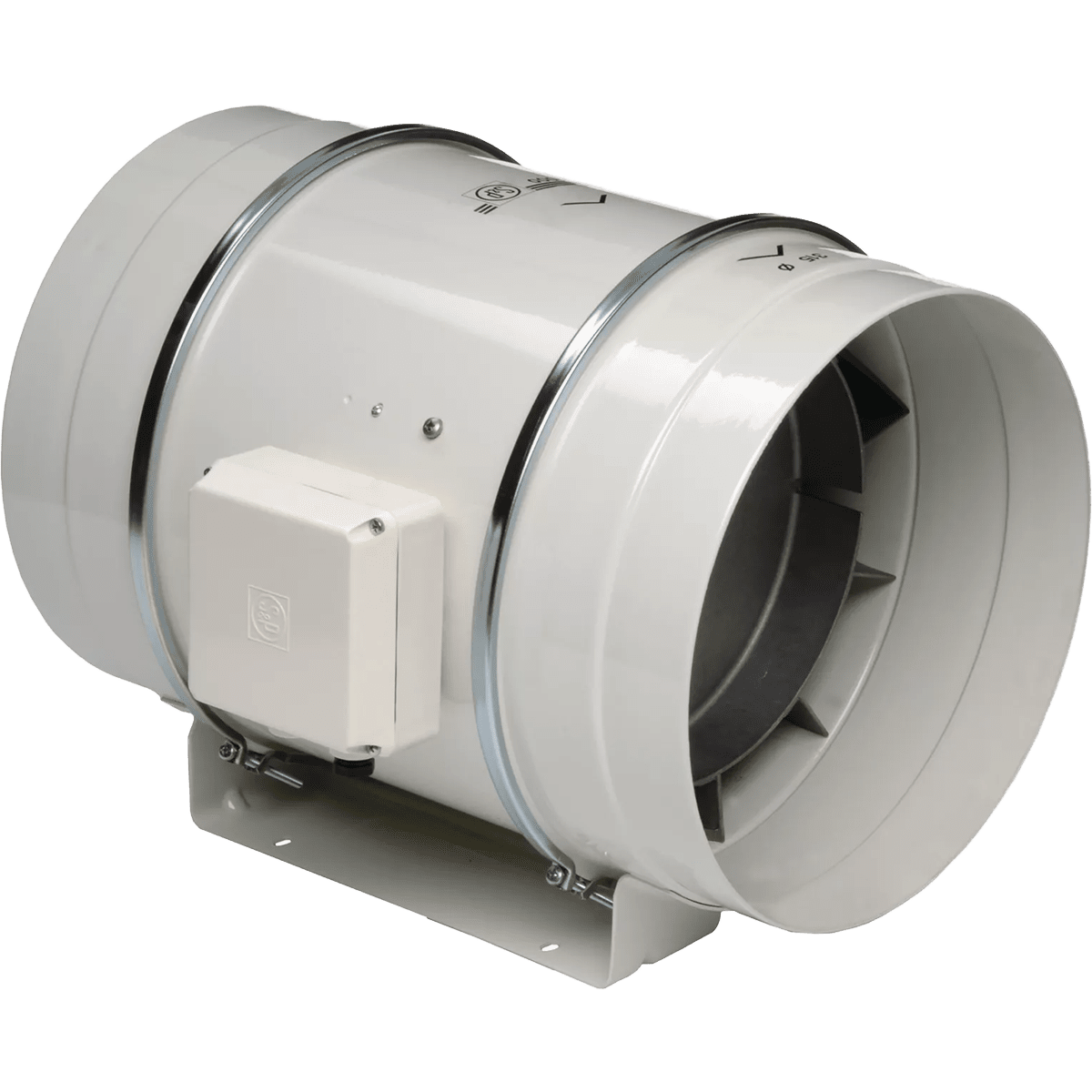

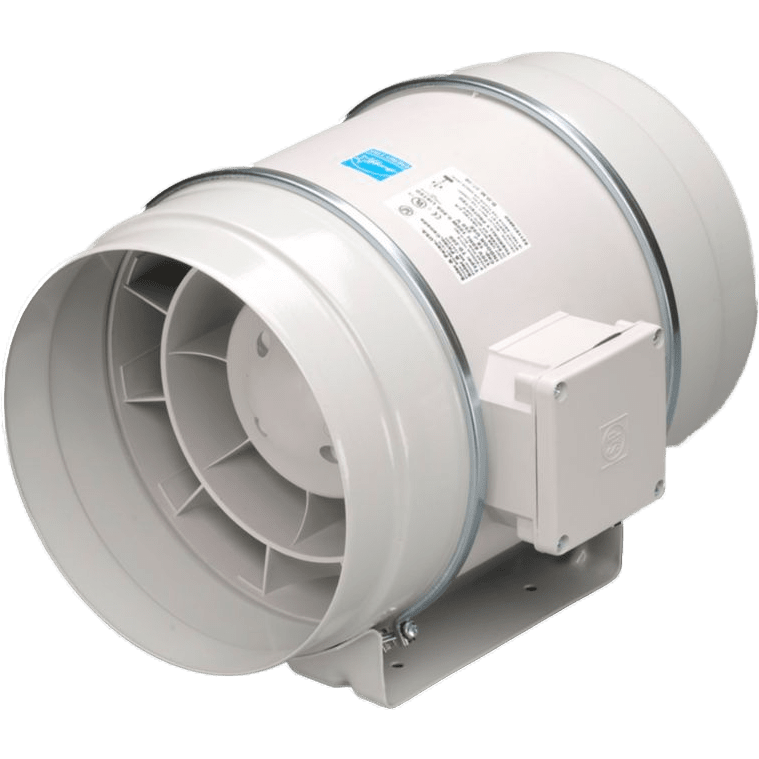

S&P TD-250 10-inch Mixed Flow Inline Duct Fan

Name: S&P TD-250 10-inch Mixed Flow Inline Duct Fan
Brand: S&P
Price: 468.0 USD
Availability: InStock

SKU: sp15738 | Model: TD-250

$468.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $39.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $500.

2-Year Replacement Extended Warranty - $49.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Fan Housing and Motor Warranty

What's In The Box?

S&P TD-250 Inline Duct Fan
Mounting Brackets and Hardware
Installation and Operation Manual

Info & Guides

Description

The S&P TD-250 10-inch Mixed Flow Inline Duct Fan is perfect for small- to medium-sized applications requiring high airflow and static pressure. It features a mixed-flow impeller and an innovative removable body design.

The TD-250 is designed to seamlessly integrate into existing HVAC systems, offering professional contractors and installers flexibility and efficiency during ventilation setup.

Top Features

Dual Speed Motor: The dual-speed motor provides airflow at high or low speeds, providing between 612 and 815 CFM at 0.0 inches w.g. It can produce an airflow in static pressure conditions up to 1.5 inches w.g.
Compact Design: The TD-250 model is a lightweight and compact solution, making it great for installations in tight spaces like ceiling voids, cabinets, and other constrained environments.

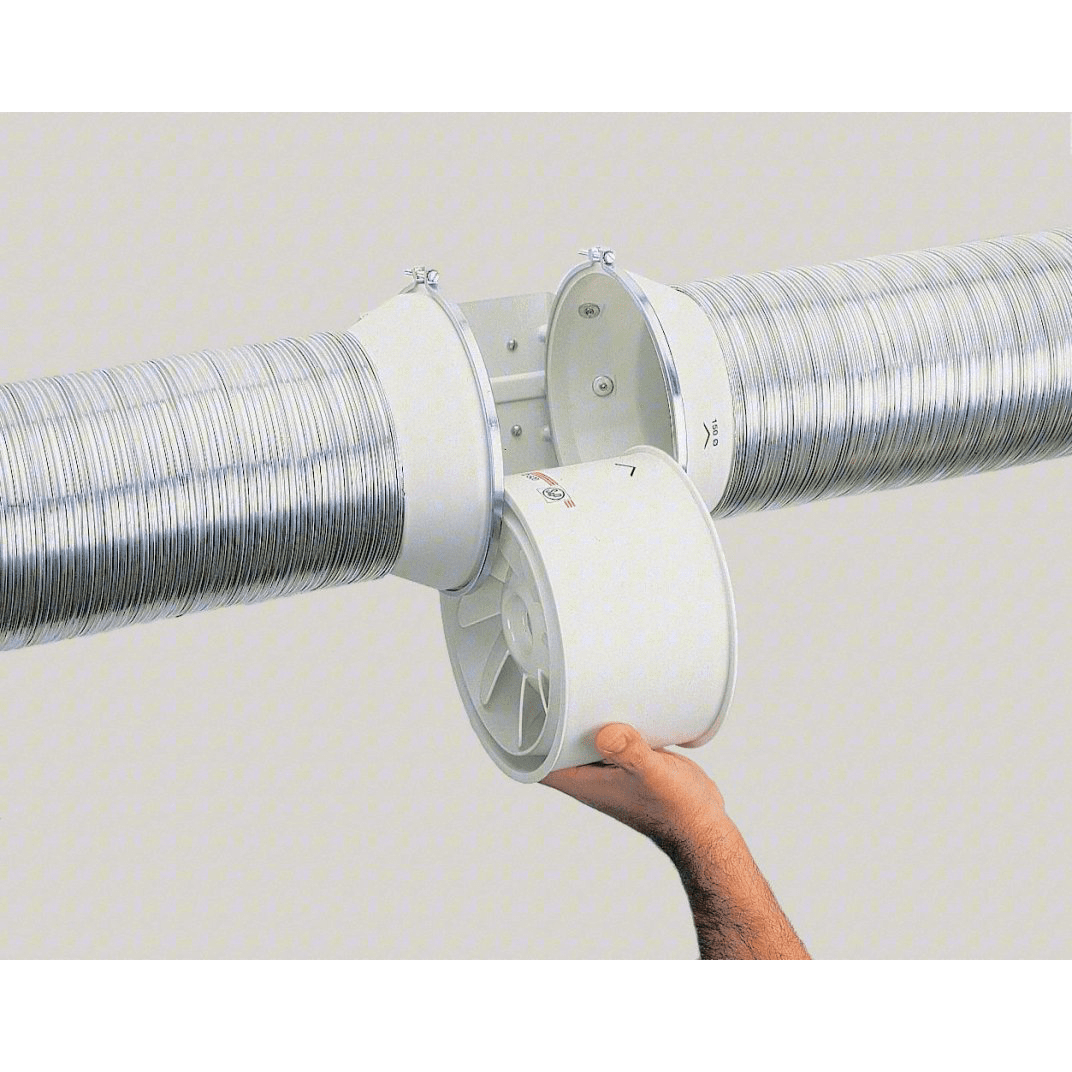

Removable Body: The motor-impeller assembly can be fitted or removed without disturbing the ducting, simplifying maintenance and reducing downtime.
Safety and Durability: This fan is built to last with IP44-rated protection, safety thermal overload protection, and housed in a tough epoxy-polyester coated metal casing.
Mixed Flow Impeller: This model has a mixed flow impeller to deliver an exceptional airflow-to-pressure ratio.
Energy Efficiency: All models in this series are Energy Star qualified, reflecting their superior energy efficiency and cost-effectiveness in operation.

Additional Features

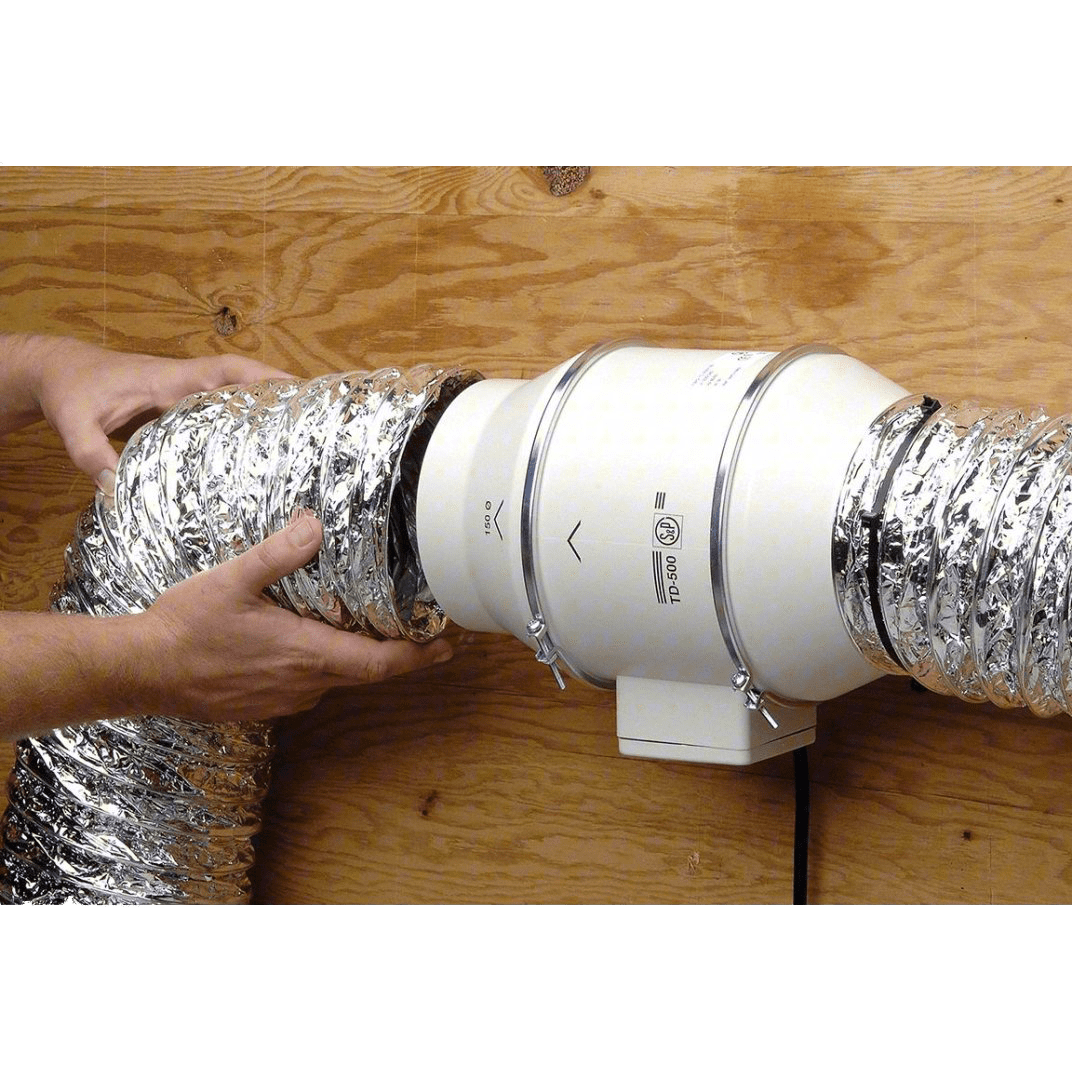

Installation Flexibility: The TD-250 can be installed in any orientation and fits 10-inch round ducts.
Certified Performance: These models are AMCA-certified for air performance and have UL and cUL listings, ensuring compliance with industry standards.
Quiet Operation: Designed to minimize in-duct and radiated noise, these fans are ideal for applications where noise reduction is critical.

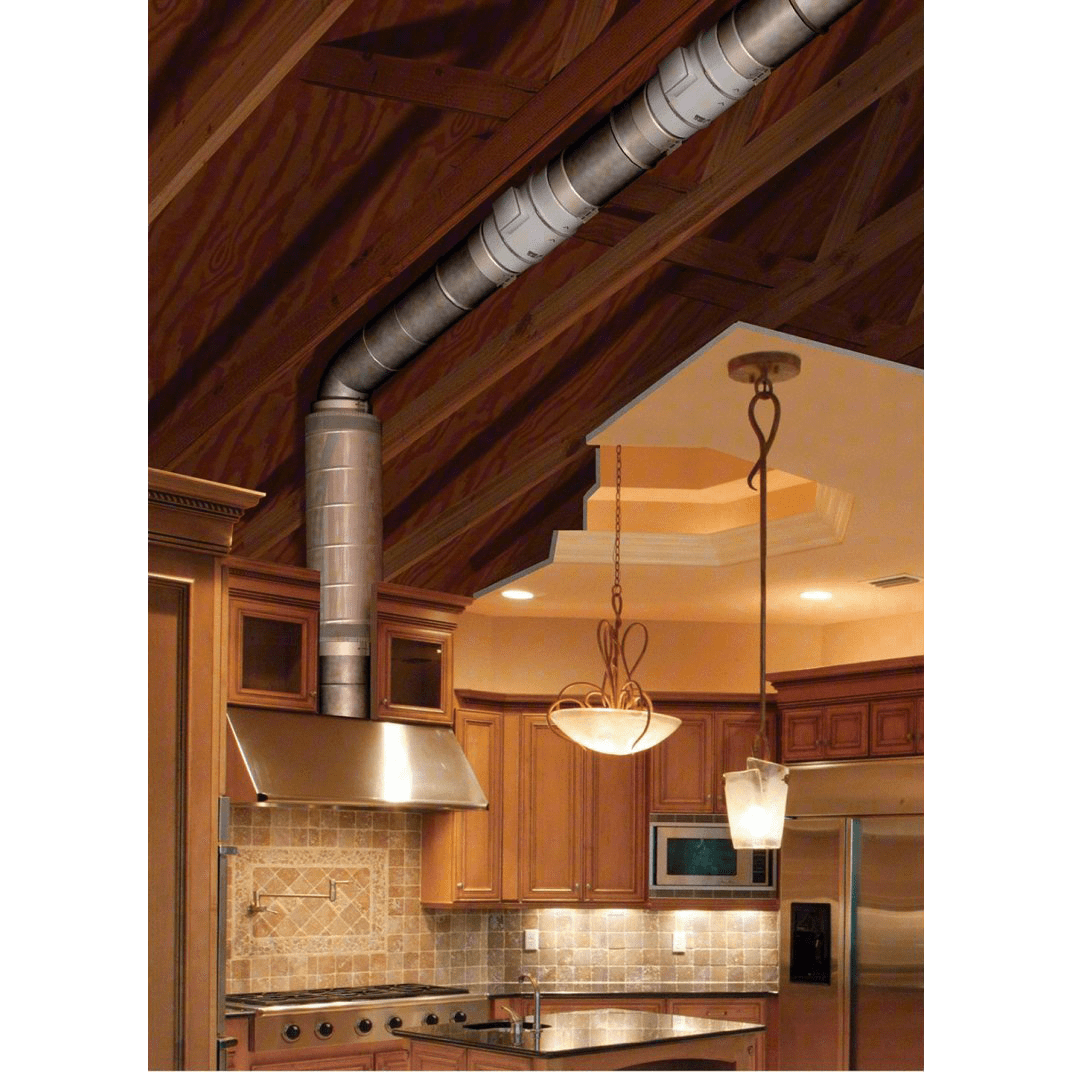

Various Applications: This fan series excels in residential and commercial kitchen, bathroom, and general ventilation applications.
Easy Electrical Connection: These units operate on a standard 120 VAC 60 Hz power supply and feature straightforward wiring requirements.

Sylvane’s Expert Take

The S&P TD-250 Inline Duct Fan offers users powerful ventilation airflow and a superior design for tight spaces. It offers airflows of up to 754 CFM.

Silent Operation: This model maximizes airflow performance while maintaining minimal noise levels.

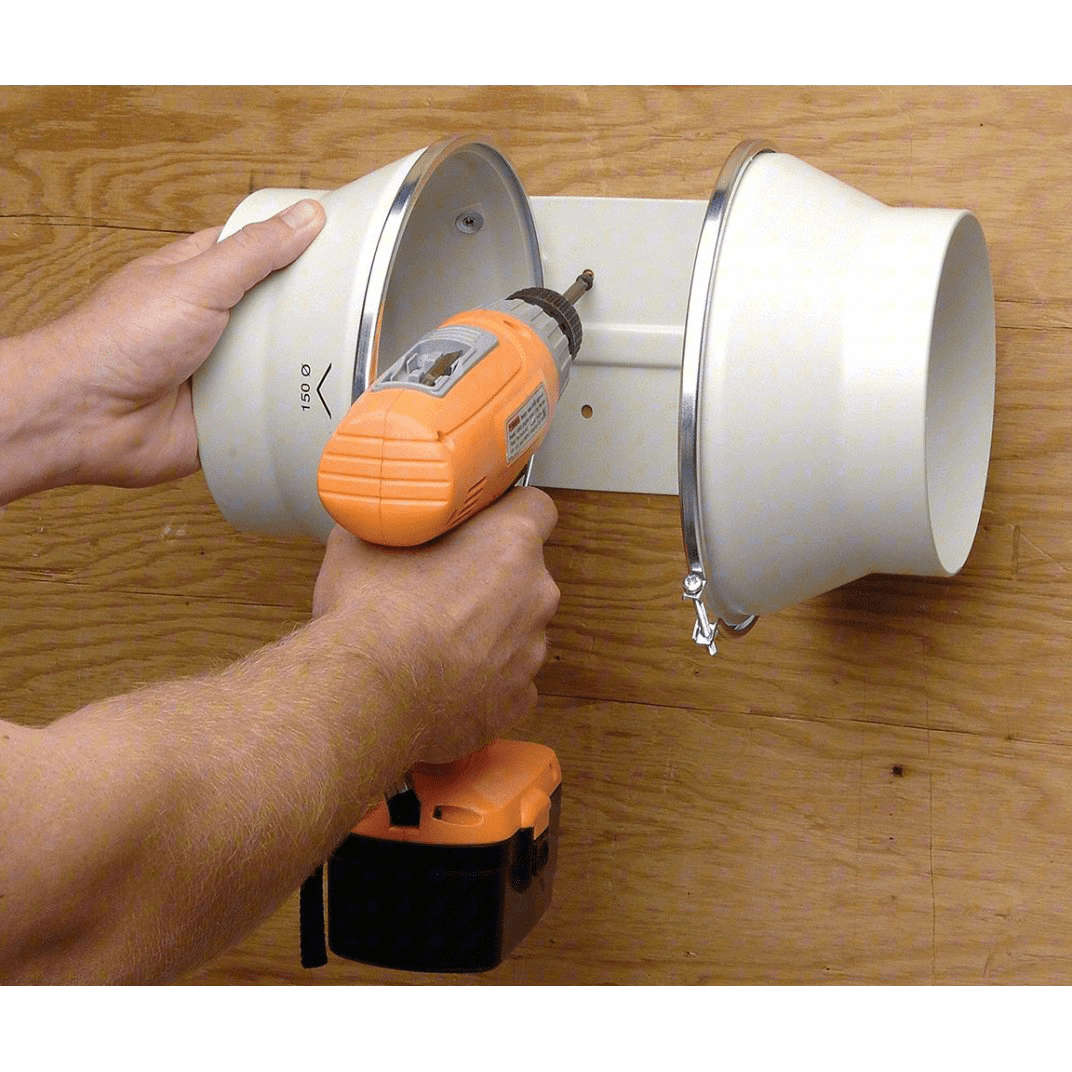

Removable Design: The unique support bracket design will allow the motor and impeller assembly to be fitted or removed without dismantling adjacent ducting, making installation and maintenance easy.

Specifications

Key Specifications

Number of Speeds

Variable
Type

Mixed Flow Inline Duct Fan

General

Application

Ducting, Residential, Commercial/Industrial
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

UL, cUL, HVI, cULus
Color

White
Controls

Electronic
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

754.0
