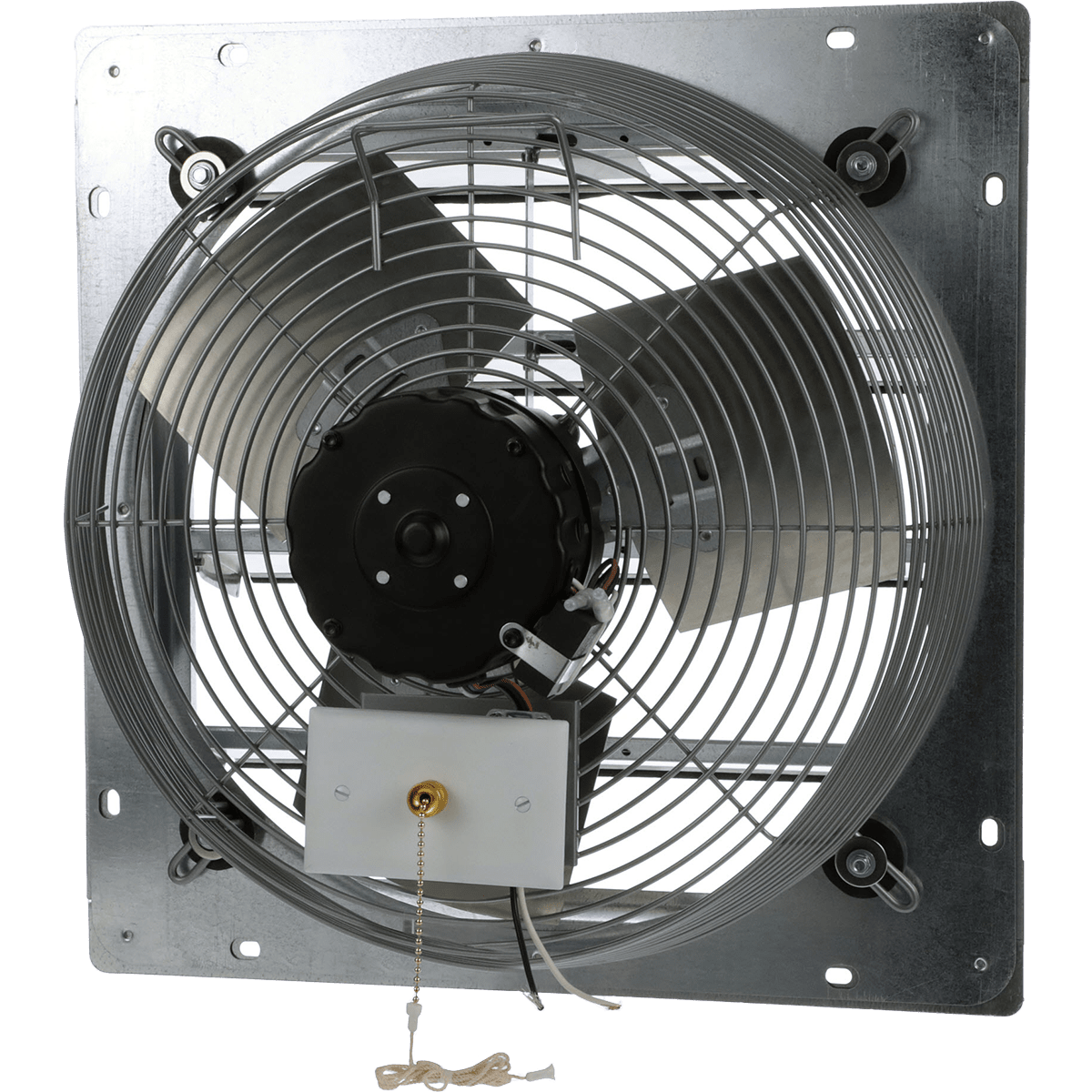

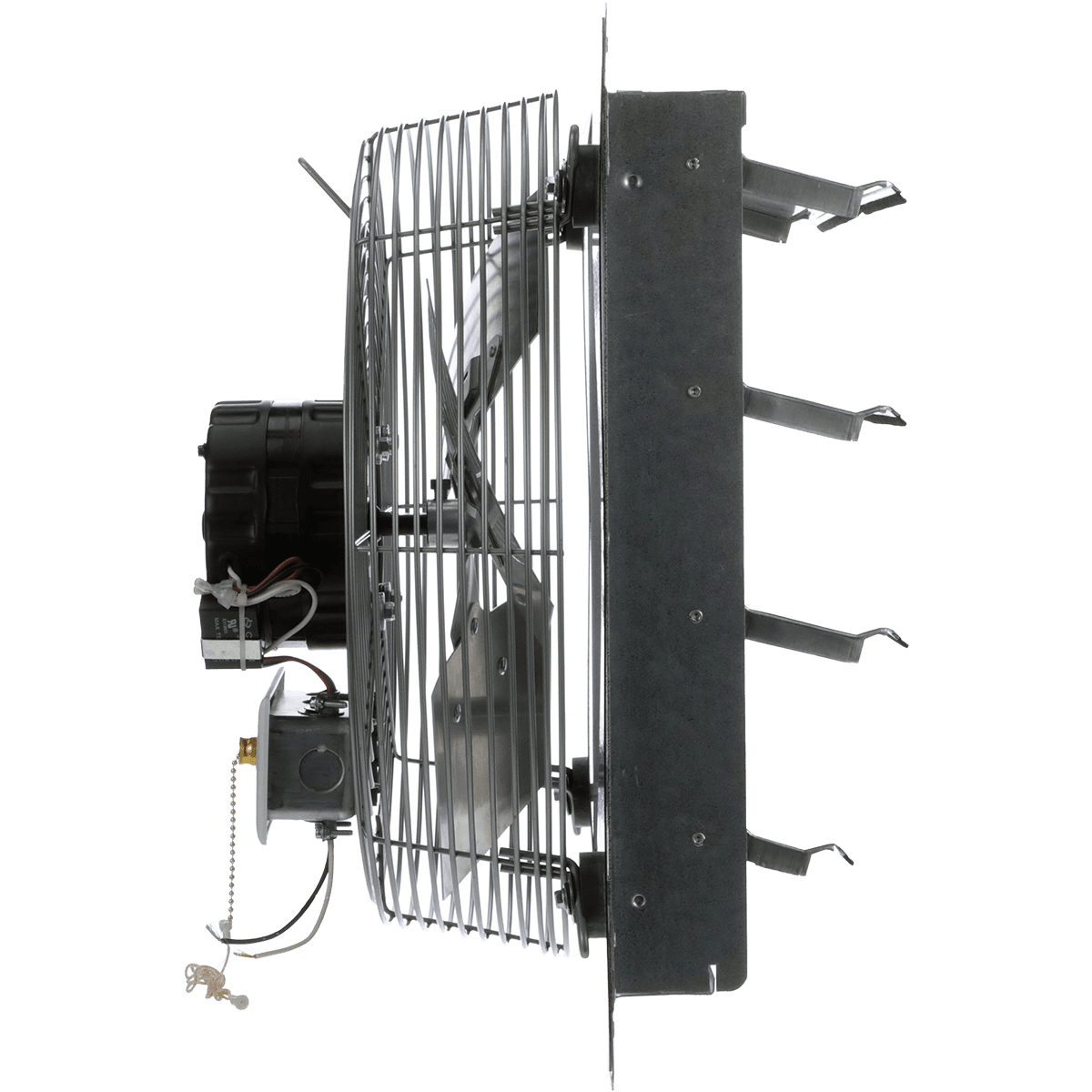

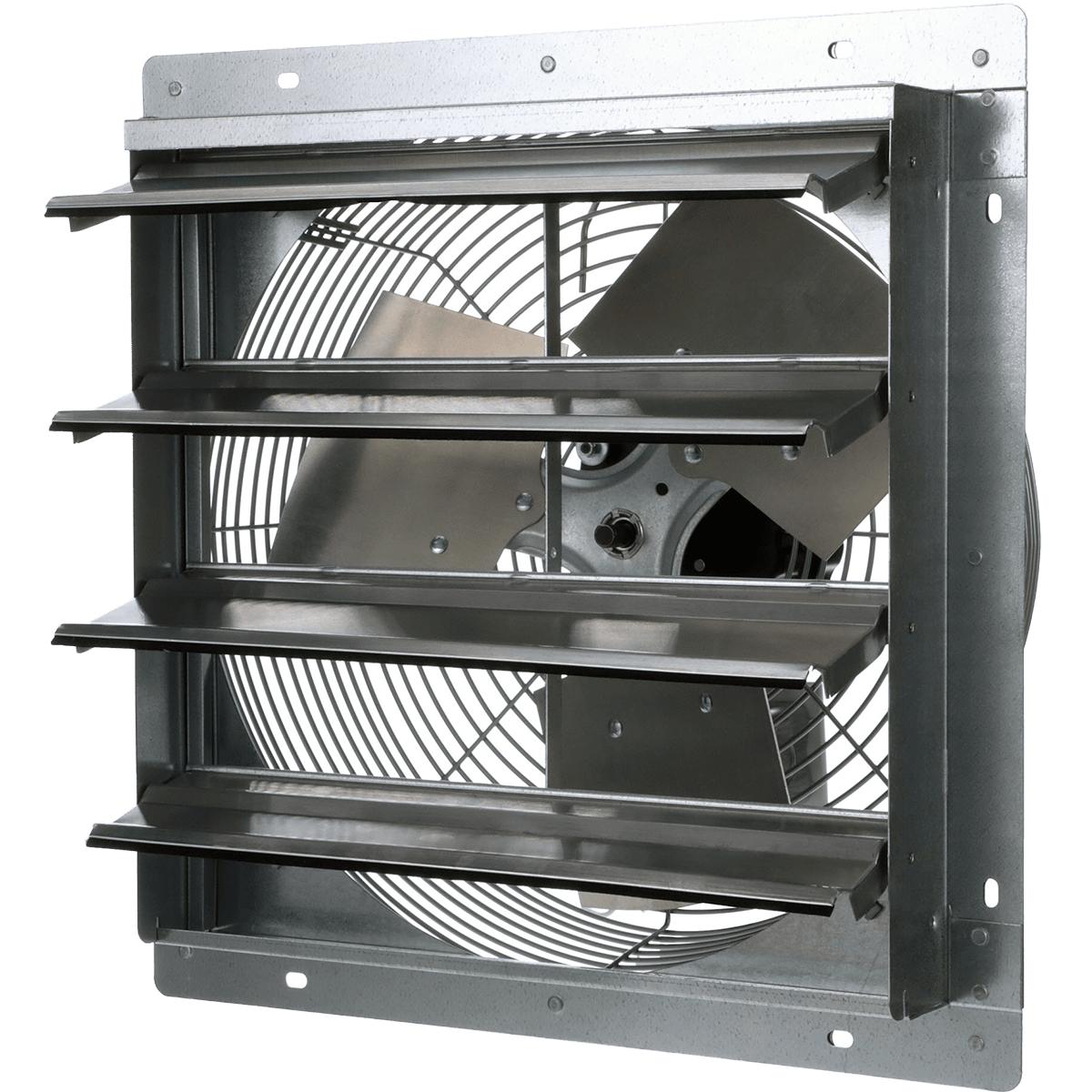

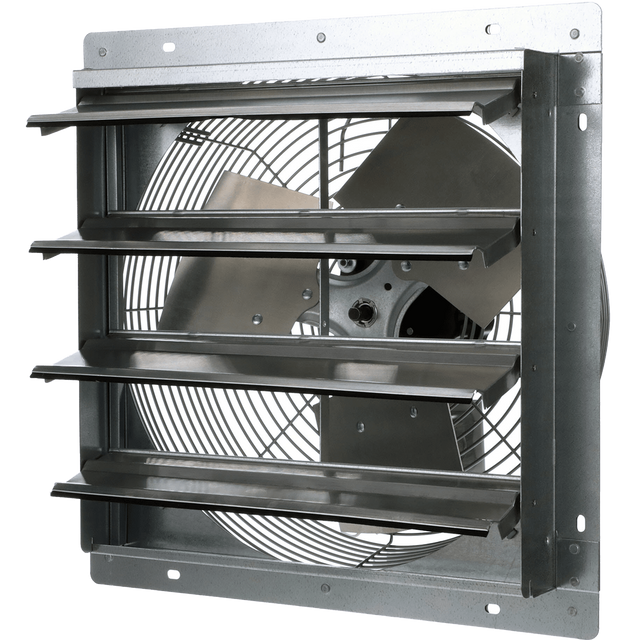

TPI CE16DS 16-In. 3-Speed 1/8 HP Direct Drive Shutter Mounted Exhaust Fan

Name: TPI CE16DS 16-In. 3-Speed 1/8 HP Direct Drive Shutter Mounted Exhaust Fan
Brand: TPI
Price: 439.0 USD
Availability: InStock

SKU: tp13500 | Model: CE 16-DS

$439.00

FREE shipping on orders over $45!

In Stock Usually ships in 10 business days.

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $39.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $500.

2-Year Replacement Extended Warranty - $49.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

TPI CE16DS 16-In. 3-Speed 1/8 HP Direct Drive Shutter Mounted Exhaust Fan
Owner's Manual
No-Cord Junction Box

Description

Built for use in the toughest of environments, the TPI 16-In. 3-Speed 1/8 HP Direct Drive Shutter Mounted Exhaust Fan is a commercial-grade ventilation solution. Featuring multiple fan speeds, it provides an airflow of up to 2,100 CFM for effective ventilation in industrial applications. There's no need for external framing or shutters since this unit installs from inside the wall.

Key Features Of The TPI CE16DS

High-Capacity Performance: It's a 3-speed, 1/8 horsepower fan with a performance of up to 1,660 RPMs.
Three Speeds: Choose from three fan speeds - Low (1,700 CFM), Medium (1,900 CFM), or High (2,100 CFM).
Pull Chain: Use the pull chain to easily select from this fan's speed settings.
Designed For Safety: Its durable 16-inch aluminum fan blades are protected by steel spiral wire guards.
Enclosed Motor: Has a low-maintenance design thanks to its completely closed and permanently lubricated split capacitor motor
Easy Installation: Can be installed from inside the wall, eliminating the need for external framing or shutters.
Hardwired Design: This unit uses a 120-volt, single-phase electrical connection. A no-cord junction box is provided for direct wiring.
Made In The USA: It's made in the U.S.A. with domestic and foreign components.

Overall Dimensions

Height: 19.125 inches
Width: 19.125 inches
Depth: 7.18 inches

Summary

Keep your commercial building more comfortable and feeling better with this 16-inch shutter exhaust fan from TPI.

Specifications

Key Specifications

Number of Speeds

3
Type

Shutter Exhaust Fan

General

Application

Residential, Garage/Workshop, Basement, Crawlspace, Commercial/Industrial, Attic
California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Color

Gray
Controls

Toggle Switch
Housing Material

Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

2100.0
Maximum RPM

1660

Power

Amperage (Amps)

2.1
Power Supply

Hardwired
Voltage (V)

110-120

Dimensions

Ceiling or Wall Cutout Length (in.)

16.5
Ceiling or Wall Cutout Width (in.)

16.5
Depth (in.)

7.18
Depth (with front cover) (in.)

7.18
Height (in.)

19.125
Height (with front cover) (in.)

19.125
Shutter Fan Size (in.)

16
Weight (lbs.)

18
Width (in.)

19.125
Width (with front cover) (in.)

19.125

Warranty

Manufacturer's Warranty

1-Year Limited Warranty
