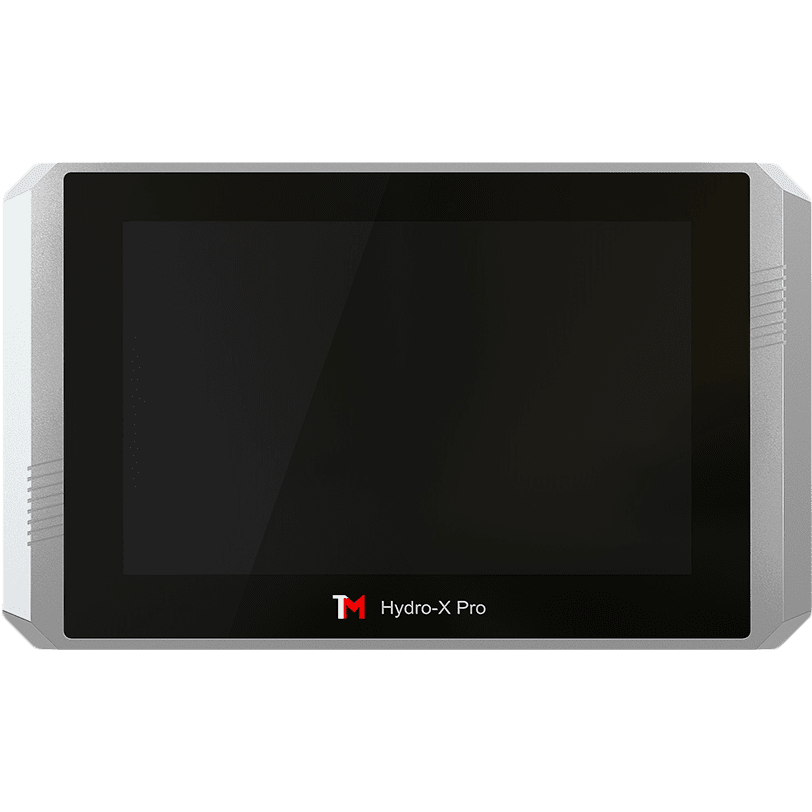

TrolMaster Hydro-X Pro Environment Control System w/ 4-in-1 Sensor
TrolMaster Hydro-X Pro Environment Control System w/ 4-in-1 Sensor is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

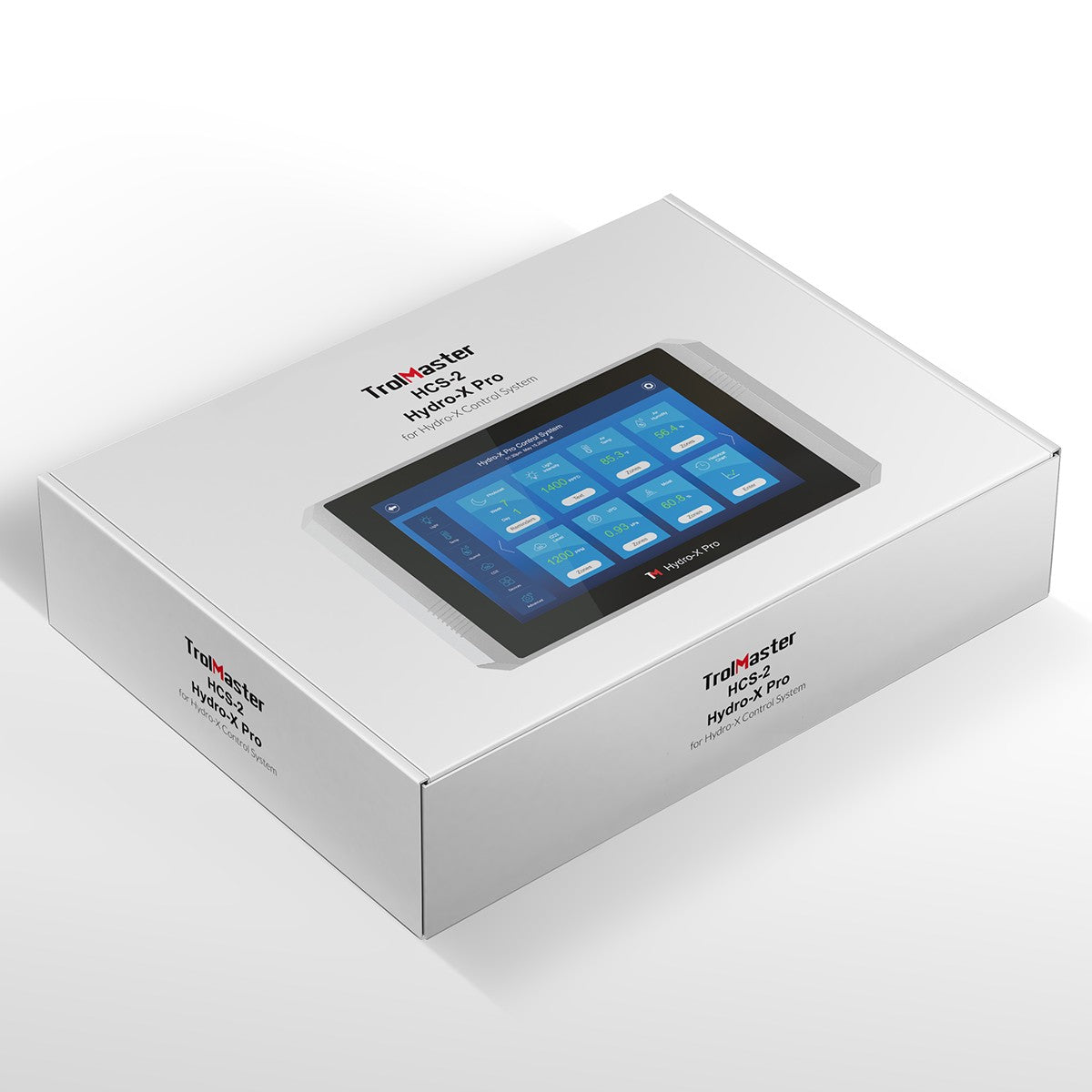

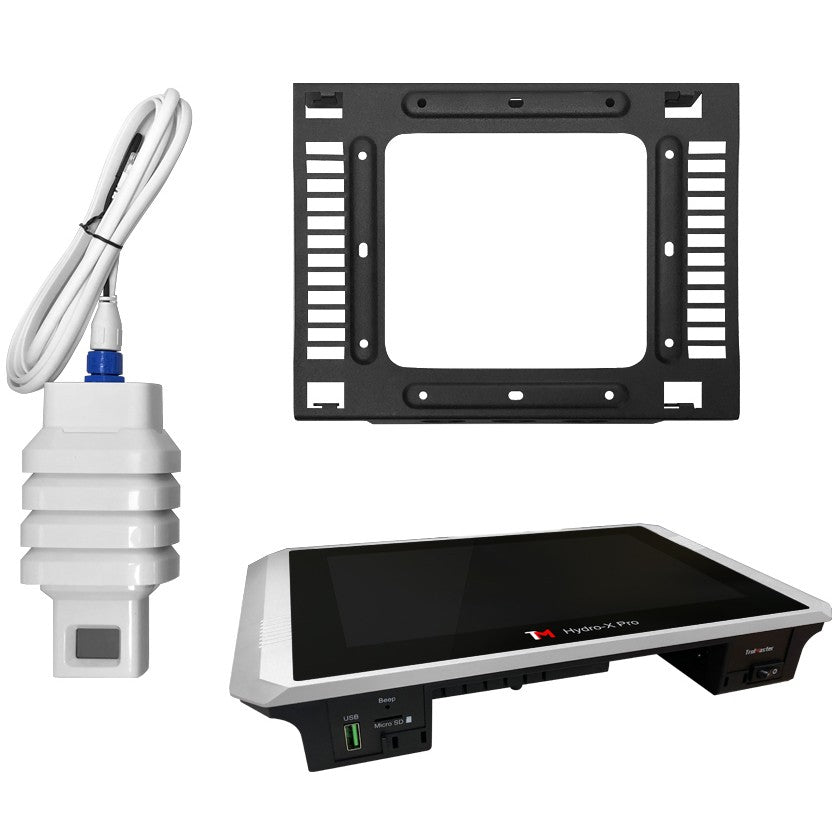

What's In The Box?
What's In The Box?
- TrolMaster Hydro-X Pro Environment Control System
- MBS-Pro Sensor
- Mounting Plate

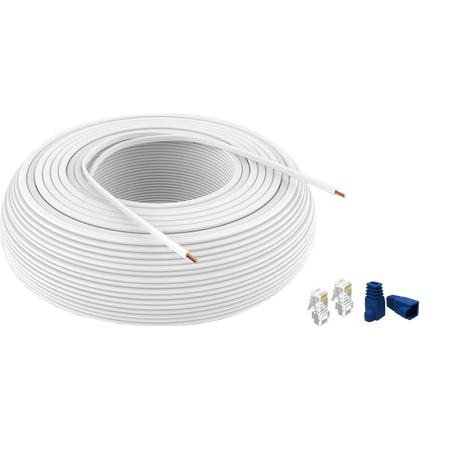

- RJ12 Cable Set
- Owner's Manual
Info & Guides
Info & Guides

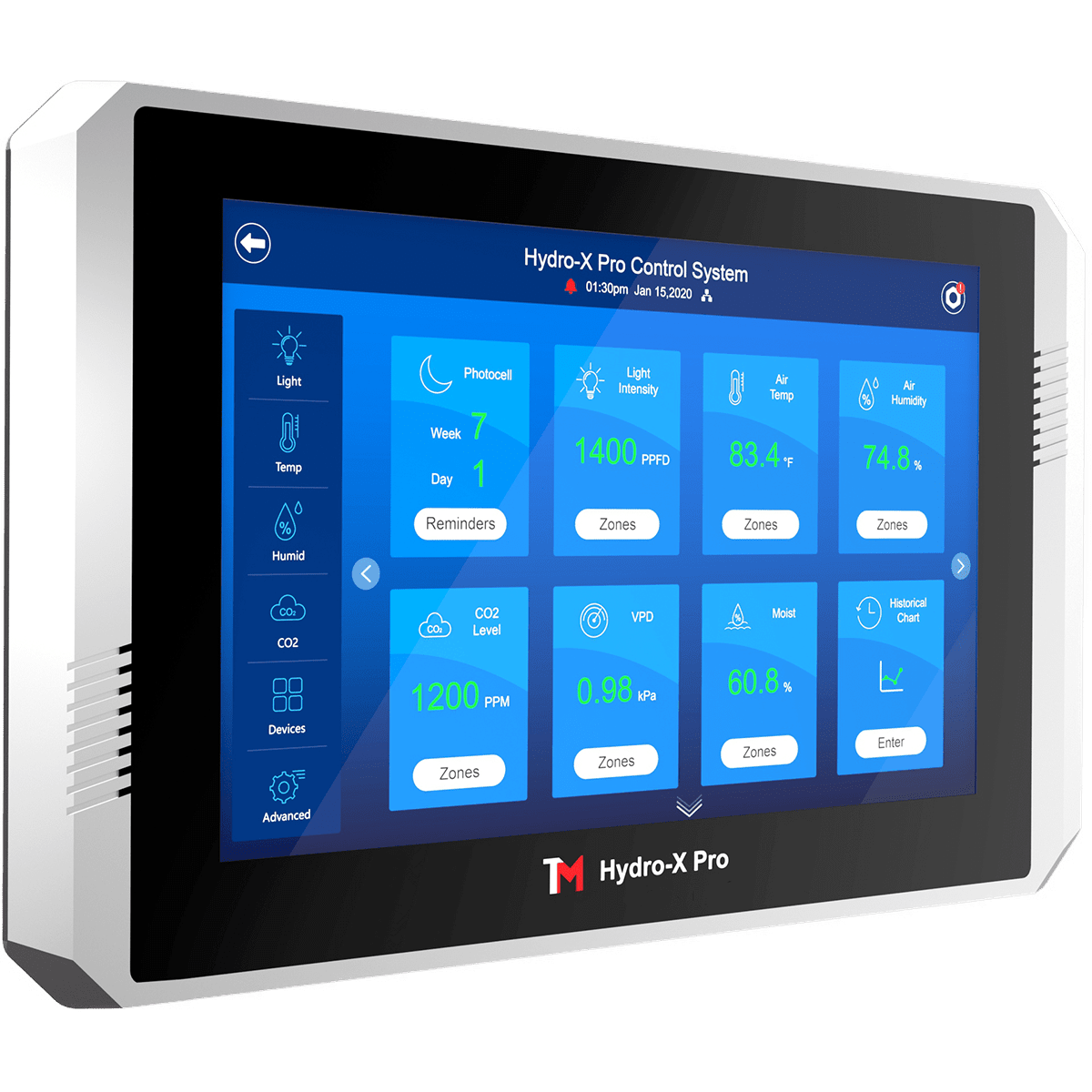

TrolMaster Hydro-X Pro Environment Control System w/ 4-in-1 Sensor
Description
Description

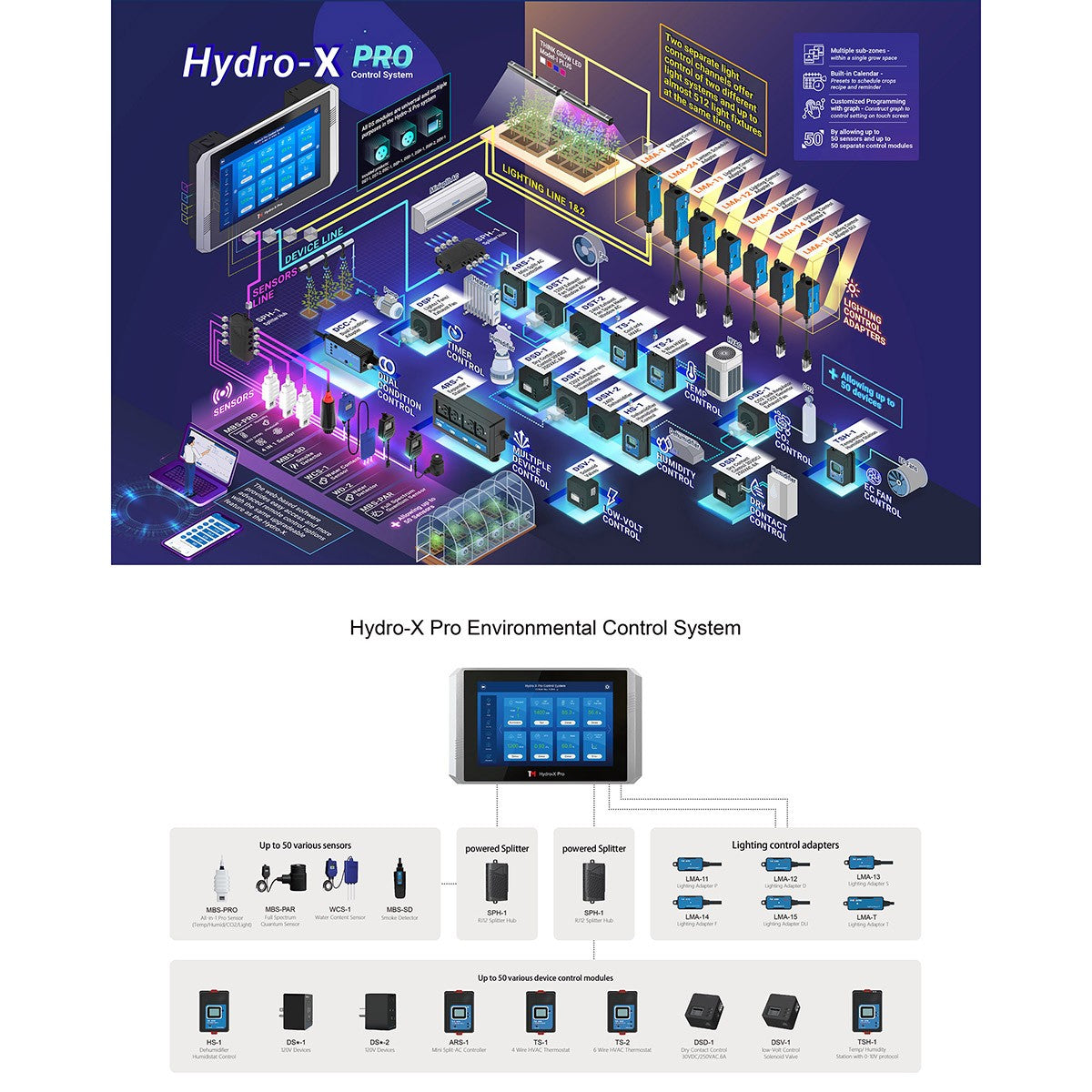

Designed to be a single room controller for up to 50 sensors and 50 separate control modules, the TrolMaster Hydro-X Pro Environment Control System features a 4-in-1 sensor.
Web-based software provides greater flexibility for plug-in modules to be applied to whatever you desire.
Customized Programming

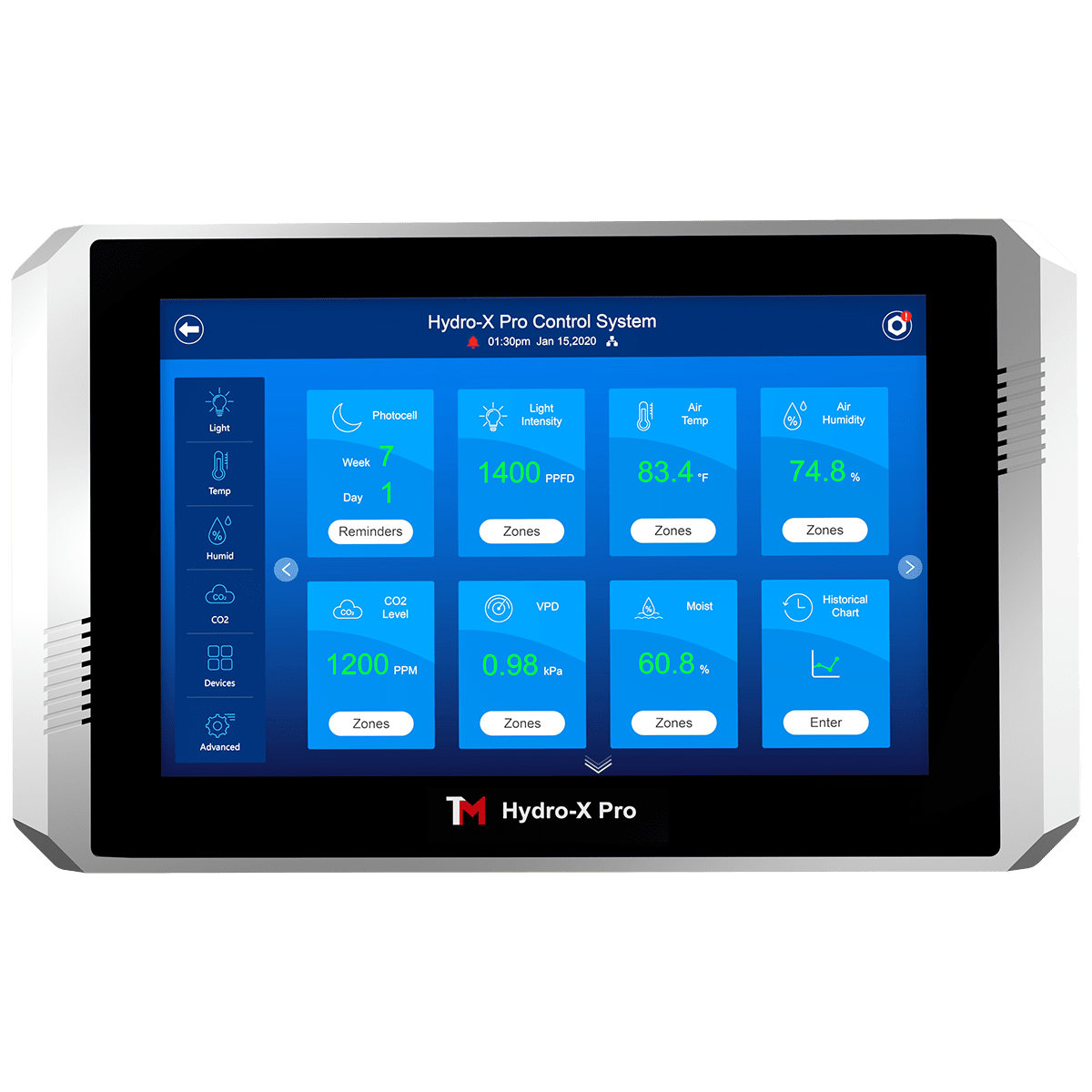

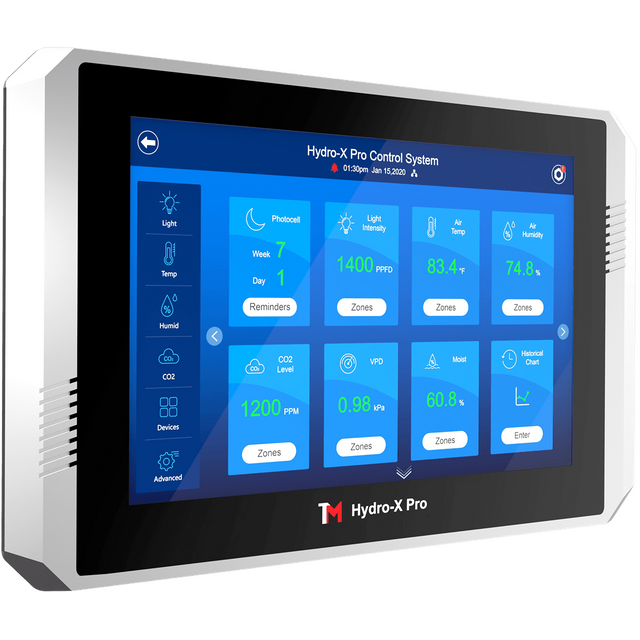

The Hydro-X Pro allows an almost limitless degree of control. Each variable can be controlled independently to closely simulate natural conditions or customization of the environment. The touch-screen displays and easy-to-read and construct graph for complete control.
- Built-in Calendar: This includes presets allows you to schedule an entire crop’s “recipe” for lighting, temperature, humidity, and CO2.
- Timers: Specify multi-week crop schedules with reminders for critical tasks.
- Group Control: Control up to 10 groups of lighting control for ThinkGrow LEDs and customize a combination of settings.
- Multiple Sub-zone Control: Create sub-zones for a complete balanced growing environment.
- Ramp Up/Down: Set parameters for gradual increase or decrease to avoid sudden changes which more closely mimics the natural environment.
Information Storage & Sharing
The Hydro-X Pro controller acquires and stores data and can be shared over multiple devices. The 4-in-1 sensor measures air temperature, humidity CO2 (PPM), and has a photocell for day/night operation. User-defined settings can be saved and loaded into multiple Hydro-X Pro units.
Used with the TrolMaster App, you can receive notifications with separate day/night limits. You can also upload a personalized screensaver using the USB port, and receive updates for life-time improvements.
Lighting Control
They Hydro-X Pro can control almost all horticultural lighting systems including LED, HID, Fluorescent, and traditional by selecting one of 6 LMA series lighting adapters. Two separate control channels allow for using two different lighting systems with separate setpoints.
The LMA-T adapter can be used with ThinkGrow LED grow lights to control 4 different spectrums (PLUS series) and to adjust the light spectrum according to specific plant needs.
Additional Features
- DLI Control & Monitoring: Daily Light Integral (DLI) control is used to calculate the precise PPFD of light needed to enhance growth rates and flowering, as well as to save energy.
- Cloud Effect: The HCS-2 can simulate natural cloud movements to mimic the outdoor environment, reducing plant stress while saving power.
- Growing Media Moisture Level: Monitor the level of water or nutrients in the growing medium with an optional water sensor.
- Spray Mode: Using this mode automatically reduces, or shuts down, the power to lights, fans, and other equipment during foliar spraying, then increases power to the initial setting after a set time.
- Multiple Activation Conditions: Each module can be programmed with multiple conditions for unlimited control options.
Summary
The TrolMaster Hydro-X Pro Environment Control System features web-based program for nearly unlimited settings and control of commercial growing systems. Design and program your growing spaces with up to 50 sensors and 50 separate control modules.
What Customers Love
- Ultimate Design: Create groups and sub-zones for a complete and balanced growing environment by assigning specific sensors to control specific device modules.
- Calendar Control: Preset customized multi-week crop schedules and program reminders and alerts for critical task.
Something to Consider
- Other Control: Additional modules can be used to control devices like fans, pumps, HVAC, or mini-split AC’s. Detect potential problems such as smoke, water leakage, and abnormal moisture levels of the growing medium.
Specifications
Specifications
-
Growing Product TypeController
-
System ControlsLighting
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Maximum Amperage (Amps)0.2
-
Voltage (V)110-120, 220-240
-
Depth (in.)14.96
-
Depth (with front cover) (in.)14.96
-
Height (in.)3.35
-
Height (with front cover) (in.)3.35
-
Weight (lbs.)6.57
-
Width (in.)10.63
-
Width (with front cover) (in.)10.63
-
Additional FeaturesAlert, Wi-Fi Capable, CO2 Integration Statistics, Light Integration Statistics, Growth Stage Schedules, Applicable for Indoor Growing
-
Manufacturer's Warranty3-Year Warranty
