TrolMaster Aqua-X Pro Controller
TrolMaster Aqua-X Pro Controller is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

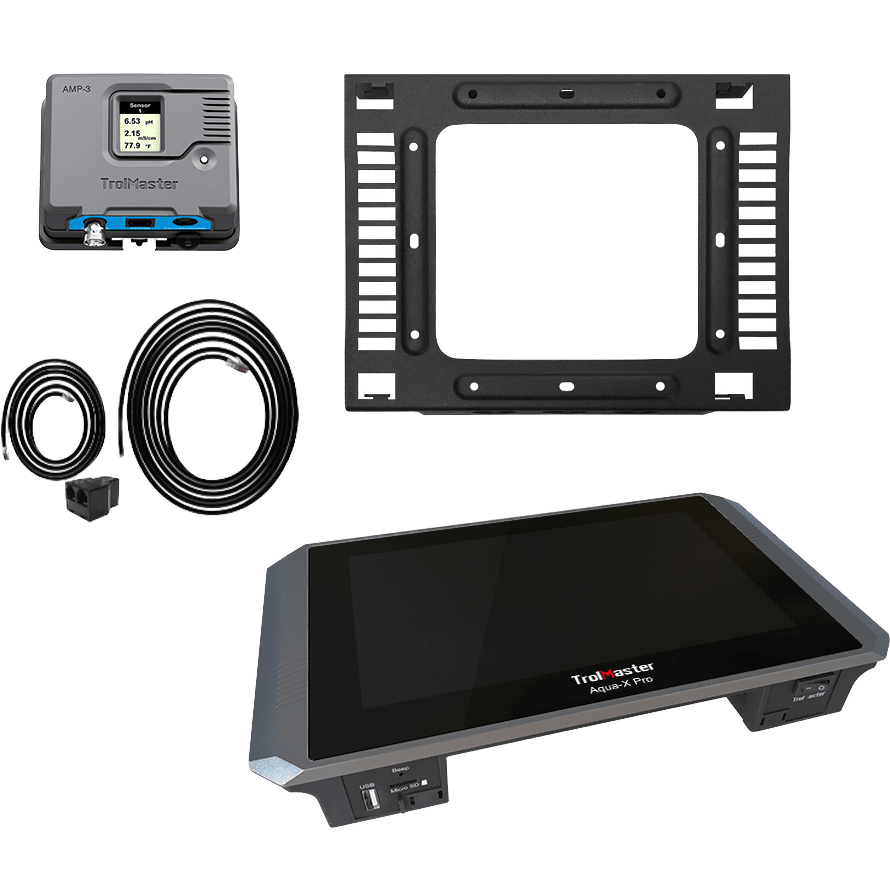

What's In The Box?
What's In The Box?
- TrolMaster Aqua-X Pro Controller
- Owner's Manual
- AMP-3 Sensor Board
- RJ12 Cable Set
- Mounting Plate

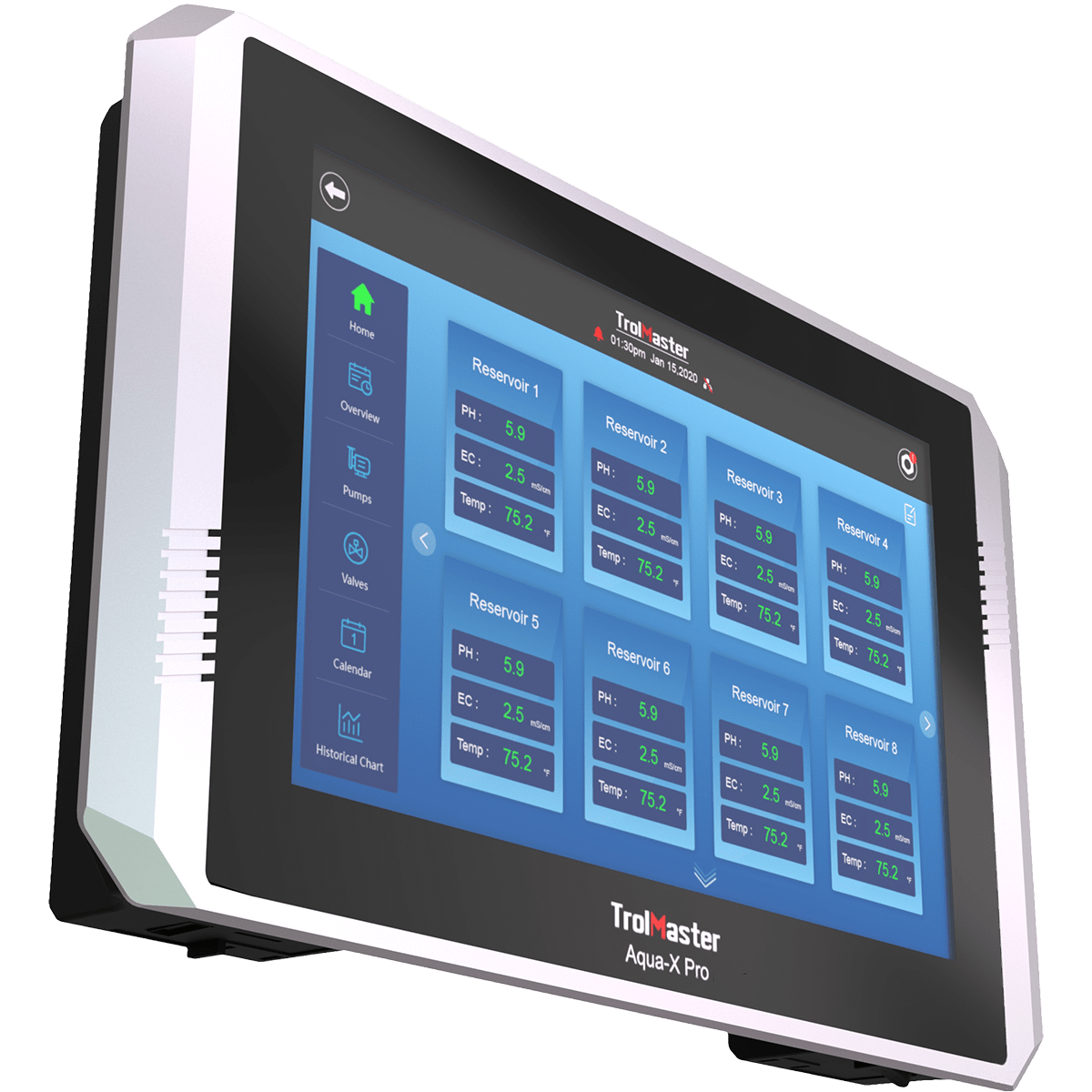

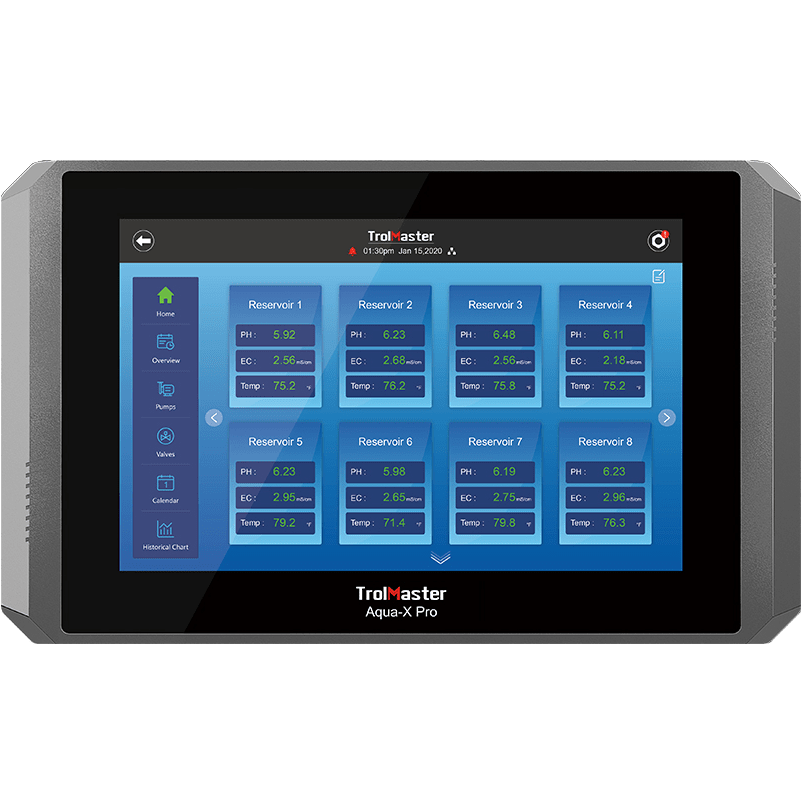

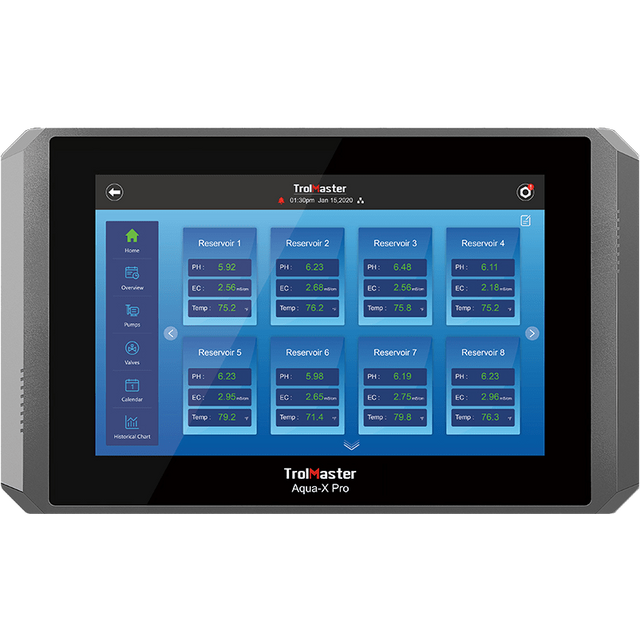

TrolMaster Aqua-X Pro Controller
Description
Description
A professional-grade irrigation control system, the TrolMaster Aqua-X Pro Controller is designed to control up to 30 separate irrigation zone. It works with 24-volt solenoid valves or 120-volt pumps. This system monitors pH/EC and water temperatures and can monitor moisture level when using up to eight connected optional water content sensors.
Irrigation Control
With its fully modular designed system, the TrolMaster NFS-2 is designed to control up to 30 irrigation zones. Use it with select controllers to control the following:
- Solenoid Valves: Up to six solenoid valves can be controlled by connecting five TrolMaster OA6-24 Aqua Control Boards to the system. Provides for 30 individually controlled outputs.
- Submersible Pumps: Connect the TrolMaster OA6-110 control board to control up to six small 110-volt submersible pumps or solenoid valves.
- Irrigation Pumps: When you connect the TrolMaster DSP-1 Device Station, it'll work like a multi-function irrigation timer.
Advanced Features of The Aqua-X Pro
- Multi-Zone Monitoring: Using the included AMP-3 Sensor Board, you can monitor up to 50 stock water tanks or inline dosing systems.
- Feed on Demand: The Aqua-X Pro can automatically water your plants based on that water content reading when used with WCS-1 or WCS-2 sensors.

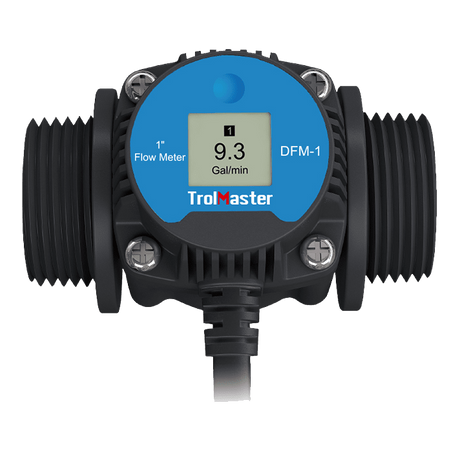

- Feed By Volume: Use a TrolMaster DFM-1 and the Aqua-X Pro to have accurate measurements of water or a nutrient solution flowing through a fluid pipe.
Additional Features
- Mobile App: Get real-time data and notifications when you connect the controller to the TrolMaster app (iTunes, Google Play).
- Internet Monitoring: The TrolMaster NFS-2 also offers a free web-based software program that allows remote control and monitoring through the internet with any desktop, laptop, smartphone or tablet.
- Control Lines: There are two control lines in the TrolMaster NFS-2 -a pump line and valve line, which can link with device modules.

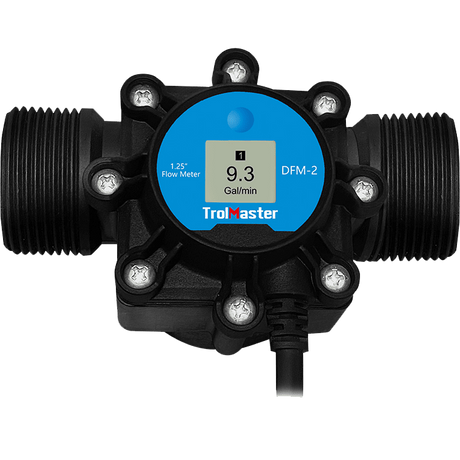

- Water Monitoring: Use TrolMaster DFM-1 and DFM-2 digital flow meters to measure the amount of liquid flowing through a fluid pipe.
Summary
This multi-functional controller can control multiple irrigation solenoids, pumps, and water sensors.
What Customers Love
- Total Irrigation Control: The TrolMaster NFS-2 is designed to control up to 30 irrigation zones.
- On-The-Go Monitoring: Get real-time data and notifications when you connect the controller to the TrolMaster app (iTunes, Google Play).
Specifications
Specifications
-
Growing Product TypeController
-
System ControlsIrrigation, pH Level, Temperature
-
Compatible Wireless DevicesApp
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Voltage (V)110-120, 220-240
-
Depth (in.)1.99
-
Depth (with front cover) (in.)1.99
-
Height (in.)7.4
-
Height (with front cover) (in.)7.4
-
Weight (lbs.)2
-
Width (in.)12.21
-
Width (with front cover) (in.)12.21
-
Additional FeaturesAlert, Wi-Fi Capable, Applicable for Indoor Growing
-
Manufacturer's Warranty3-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
