Fantech FIT 120E Series Low Profile 127 CFM Energy Recovery Ventilator
Fantech FIT 120E Series Low Profile 127 CFM Energy Recovery Ventilator - w/ Shut-off Damper - Hardwired is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech FIT 120E Series Low Profile Energy Recovery Ventilator
- Mechanical Shutoff Damper (FIT 120E-D and FIT 120E-D-HC only)
- Electrostatic Air Filters (2)
- MERV 3 Filter (1)
- Ceiling Mounting Bracket
- Metal Collars with Rubber Gaskets
- Owner’s Manual
Fantech FIT 120E Series Low Profile 127 CFM Energy Recovery Ventilator
Description
Description

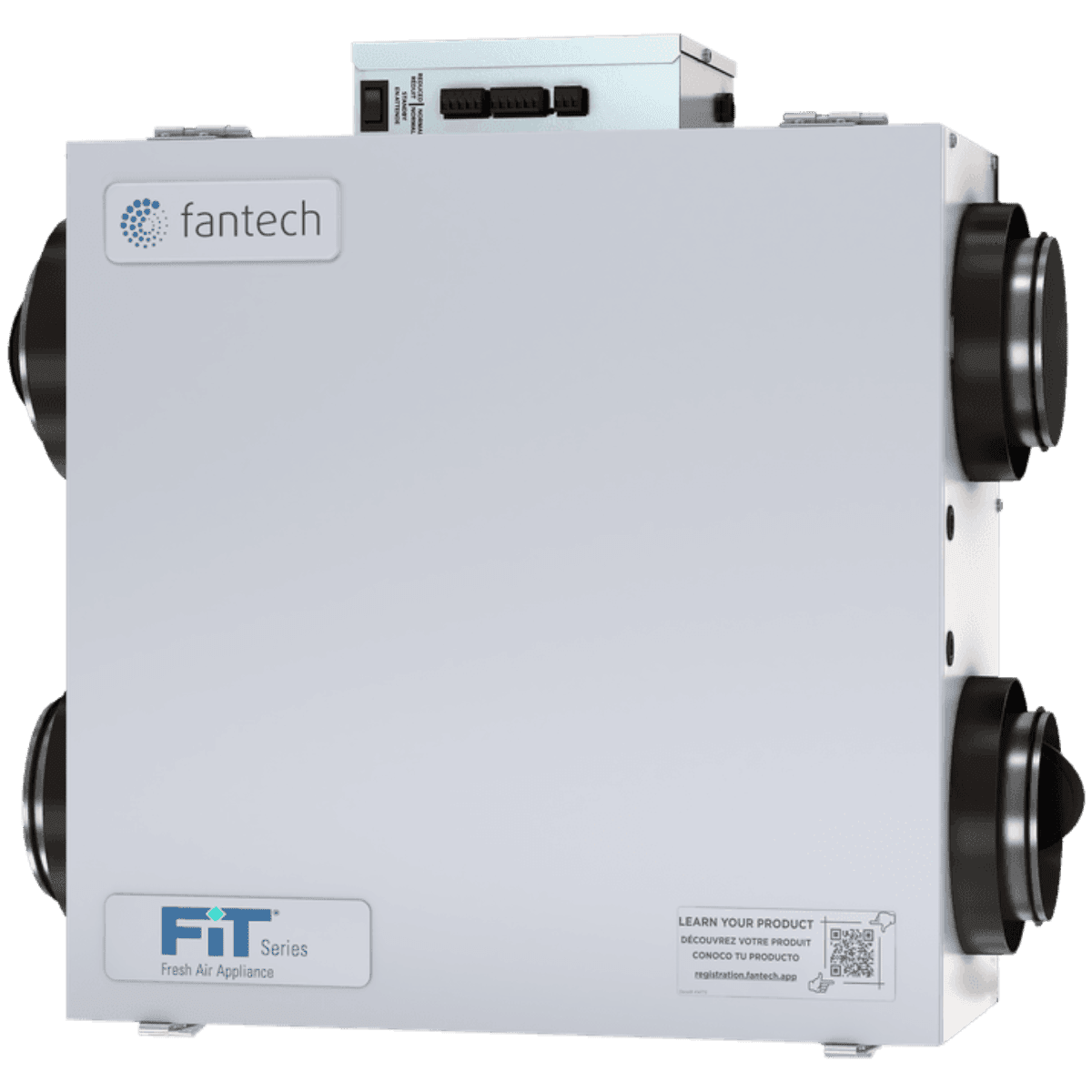

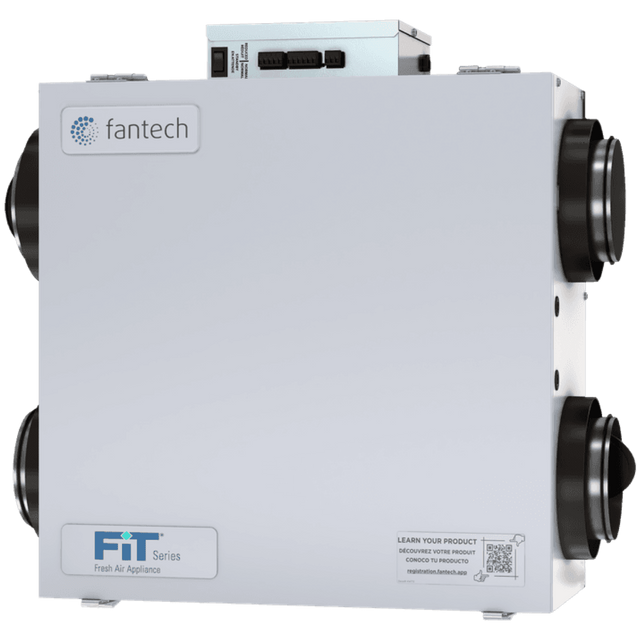

The Fantech FIT 120E Series Ceiling or Wall-Mounted Energy Recovery Ventilator is designed to improve indoor air quality, specifically in multi-family applications where space is limited. This versatile system has an airflow capacity of up to 127 CFM and has a compact profile measuring just 8.75 inches in height and a 10-inch installed depth.
The Fantech FIT 120E Series features an energy recovery core that effectively transfers heat and moisture from the outgoing air to the incoming fresh air, minimizing the energy needed to maintain a comfortable indoor environment year-round.
Key Features and Benefits of the Fantech FIT 120E Series

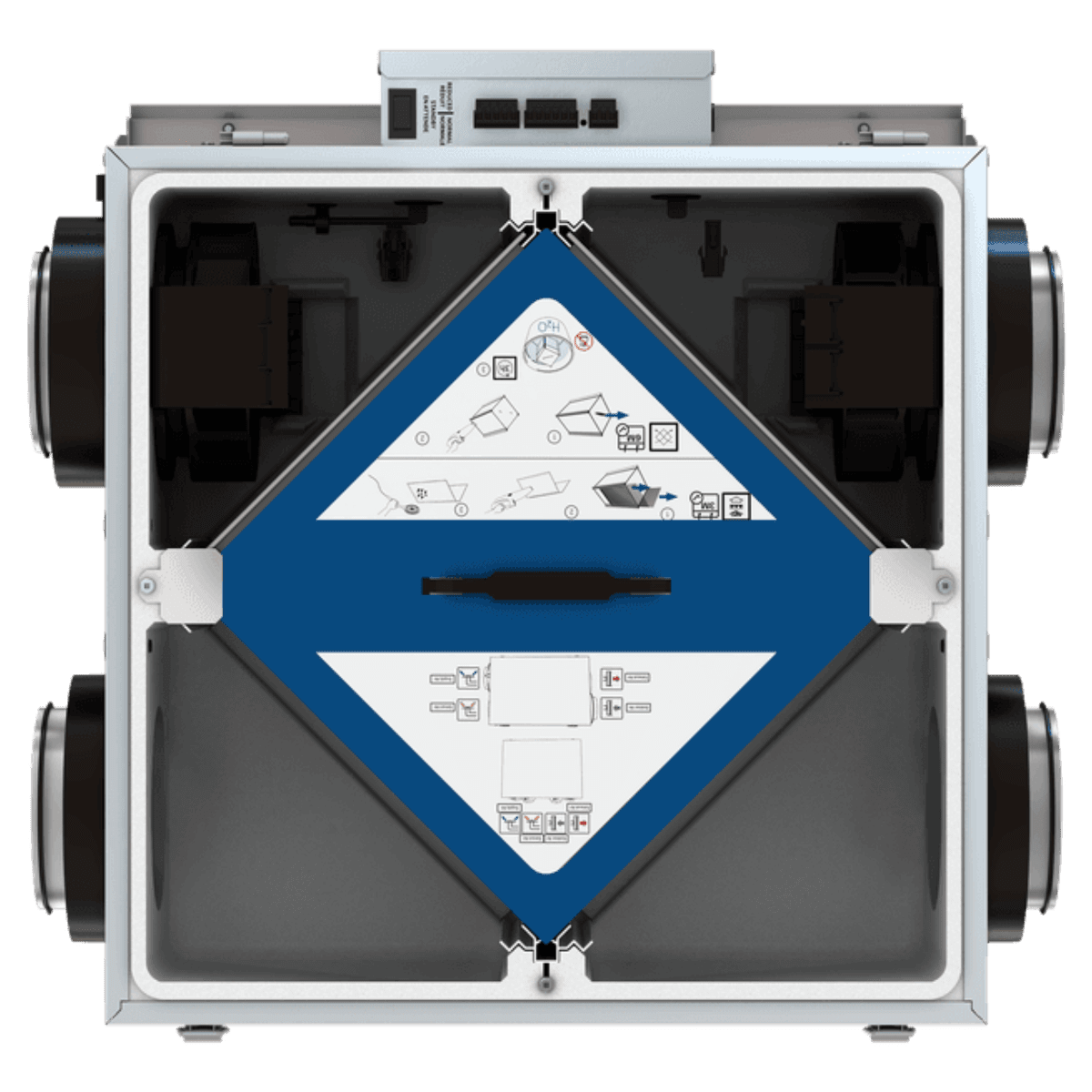

- Energy Recovery Core: Incorporates an energy recovery core made of a durable polymeric transfer media that facilitates water vapor transport. This core exhibits high humidity permeability and is freeze-tolerant and water washable.
- Frost Prevention Mechanism: When the outdoor air temperature reaches 14 degrees F or lower, the appliance automatically engages a preset frost prevention sequence where the supply blower halts operation while the exhaust blower switches to high speed, maximizing the effectiveness of the frost prevention method. Normal operation resumes after the sequence is completed.
- Drain-Free Design: Requires no drain installation. Moisture in the incoming air is simply transferred to the outgoing air during the circulation process.

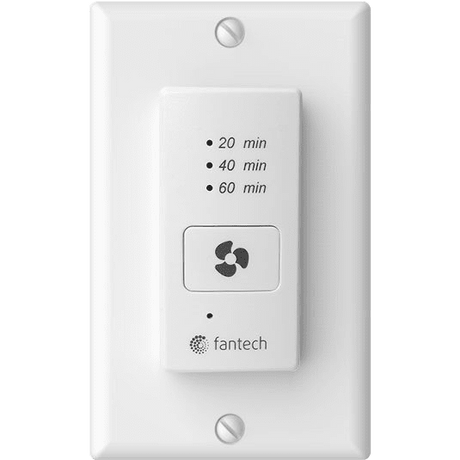

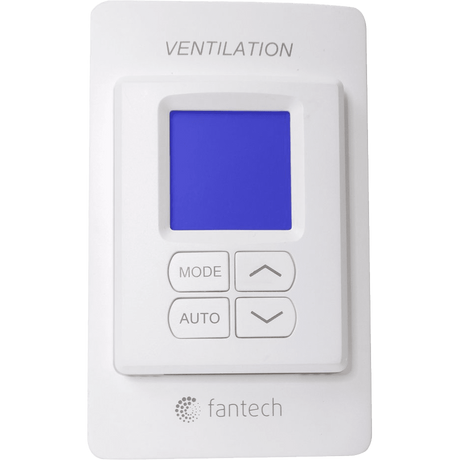

- Customizable Airflow Control: This fresh air appliance offers multi-speed operation from 40 to 127 CFM at 0.4 inches w.g. according to your specific space requirements. The settings can be easily managed through the external electrical box, or a separate wall control.

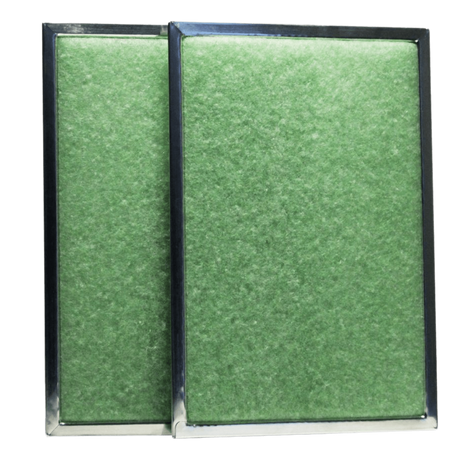

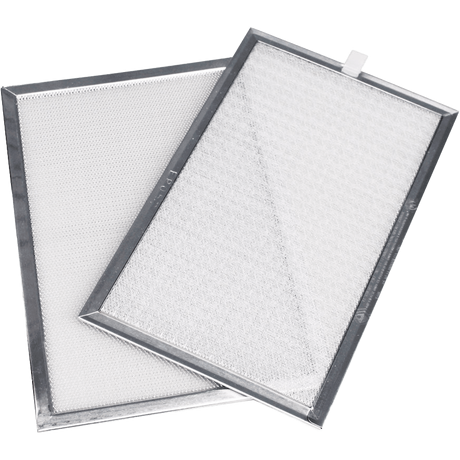

- Included Air Filters: The ERV comes with two washable, UL900-certified, electrostatic panel-type air filters to effectively eliminate impurities from the indoor air. A MERV3 filter is also included, with the option to upgrade to a MERV 8 filter.
- Convenient and Secure Duct Connections: The metal collars with rubber gaskets ensure the 5-inch side port duct connections are tightly sealed for a seamless integration with your existing ductwork.
Choose the Best Model
With multiple configurations available, including plug-only or hardwired connections, you can select the right Fantech FIT 120E setup for your space. There are mirrored versions of the FIT 120E should you need to install in a mirrored floor plan. You can also select units with an EC motor, available in standard or mirrored configurations for Energy Star efficiency.
- ERV Only (FIT 120E or FIT 120E-HC): The Fit 120E is perfect for condos and apartments without a mechanical room and requiring installation above a false ceiling. This model is available with a 3-foot-long power cord (ERV Plug) or a hardwired connection (ERV Hardwired).

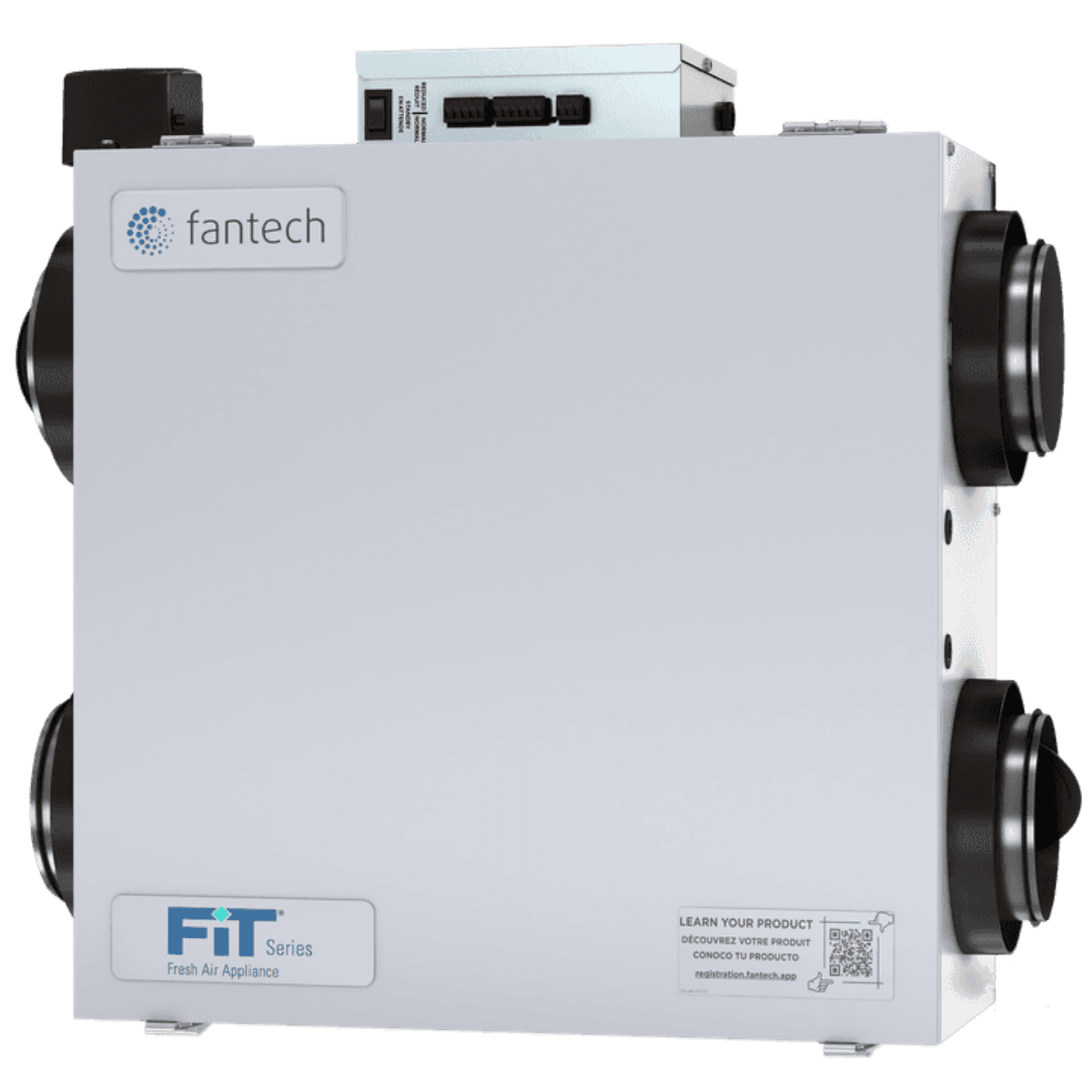

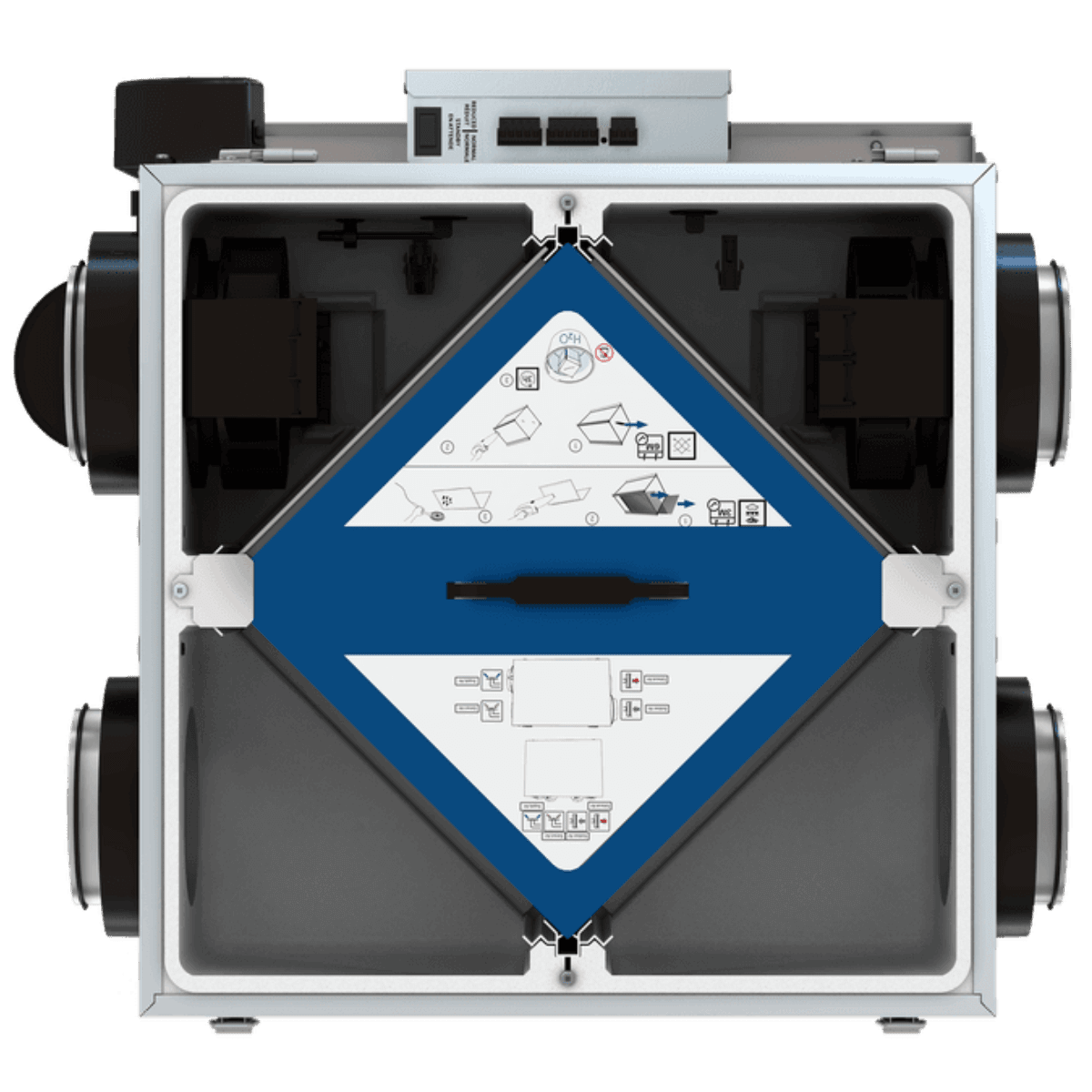

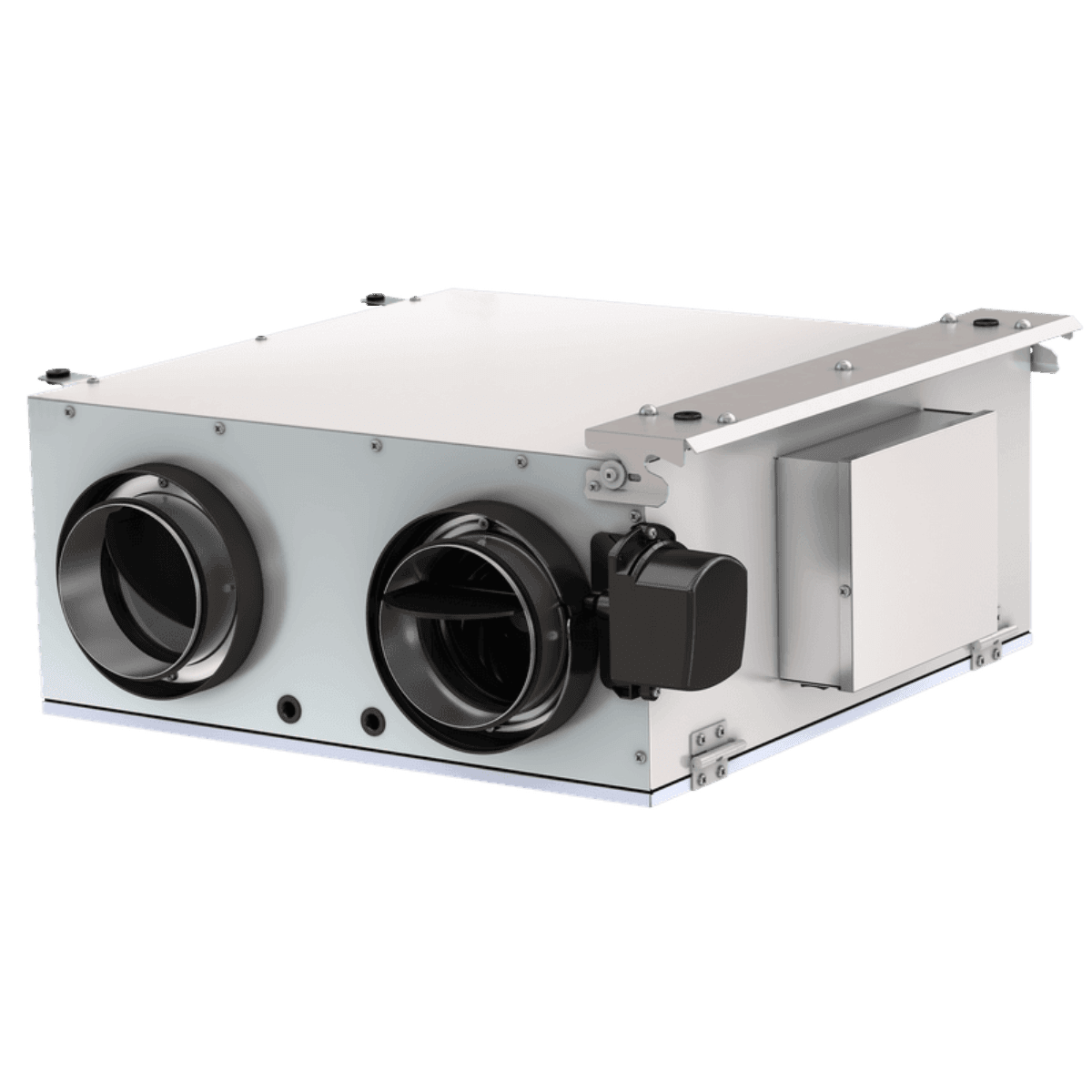

- ERV with Shut-Off Damper (FIT 120E-D or FIT 120E-D-HC): The integrated mechanical shutoff damper in this model ensures that during standby or defrost mode, the supply ductwork doesn't allow outside air to be drawn back into the space. It includes a 3-foot-long power cord (ERV with Shut-Off Damper - Plug) or a hardwired connection (ERV with Shut-Off Damper - Hardwired).
Sylvane's Expert Take

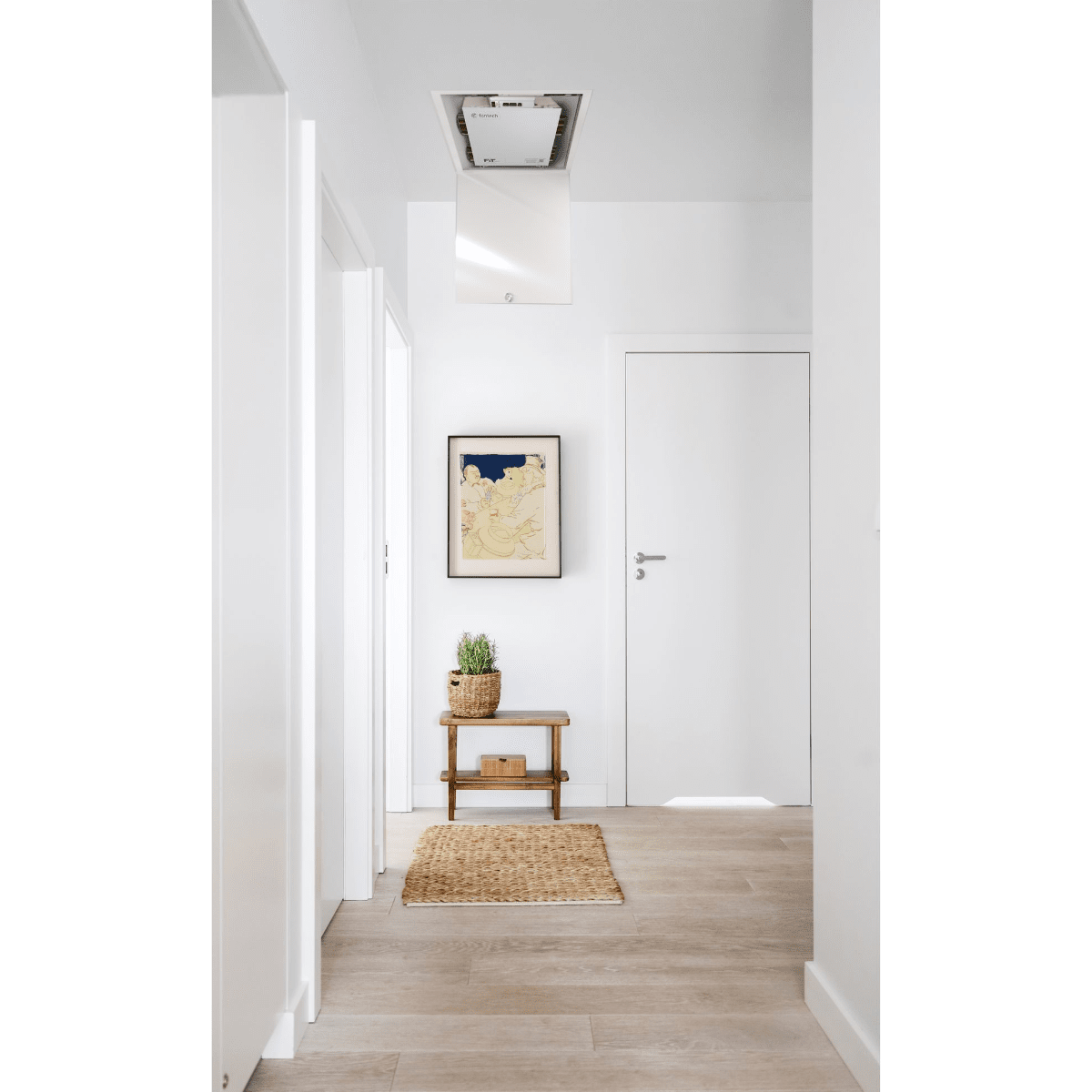

Increase energy efficiency and comfort year-round in a multi-family home by installing this compact ERV in the ceiling or wall. Its slim profile and included ceiling bracket make it easy to install with a minimal footprint, lending much-needed versatility to different home layouts. The HVI and CS code-compliant design is certified to provide high-quality indoor air.
This ERV brings a continuous supply of fresh air while exhausting an equal amount of contaminated air out to provide year-round efficiency and comfort.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)40.0
-
Mounting TypeCeiling, Wall
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
CertificationsCSA, HVI
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)127.0
-
Amperage (Amps)1.4
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)120
-
Depth (in.)25.124.625.124.6
-
Depth (with front cover) (in.)25.124.625.124.6
-
Duct Diameter (in.)5.0
-
Height (in.)23.2
-
Height (with front cover) (in.)23.2
-
Weight (lbs.)32.633.532.633.5
-
Width (in.)10.0
-
Width (with front cover) (in.)10.0
-
Manufacturer's Warranty7-Year Limited Motor Warranty, 5-Year Limited Energy Recovery Core and Electrical Parts Warranty
