Aprilaire Ventilation Control Kit
Aprilaire Ventilation Control Kit is backordered and will ship as soon as it is back in stock.
Save! Shop this product Open-Box & Used
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

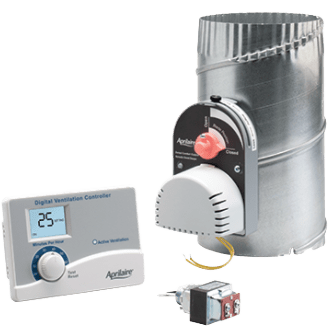

What's In The Box?
What's In The Box?
- Remote Controller (8120A)
- Aprilaire normally closed damper
- Aprilaire 24VAC transformer
- Outdoor temperature sensor
- Owner’s Manual
Info & Guides
Info & Guides

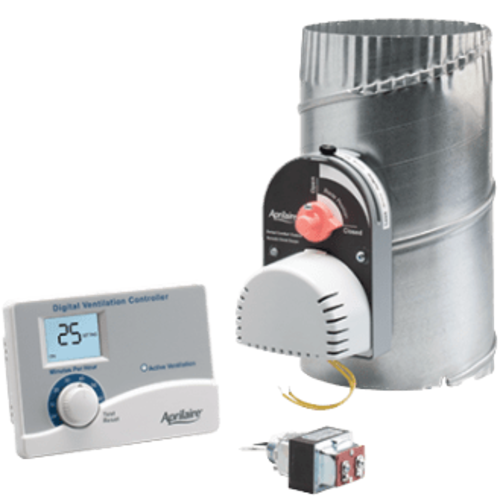

Aprilaire Ventilation Control Kit
Description
Description
Keep indoor air fresh while eliminating stale air with the Aprilaire 8126A. This easy-to-install damper kit is suitable for areas in mild to humid climates.
How Does It Work?
The Aprilaire Ventilation Controller decides when and how long to ventilate based on its continuous monitoring of indoor relative humidity, outdoor temperature, and user-friendly settings. This makes it energy-efficient.
- Provide fresh air only when needed.
- Never allow air that’s too hot, too cold, or too humid.
- Provide an energy-efficient way to get fresh air in your home.
- Will not ventilate if the outdoor air raises the indoor relative humidity above 55%.
What's Included
The Aprilaire 8126A integrates outside fresh air into air conditioner and furnace systems, as well as electric heat pump systems. Other features include:
- Aprilaire digital ventilation controller
- Aprilaire's normally closed damper
- Aprilaire 24VAC transformer
- Outdoor temperature sensor
Whole Home Benefits
Enjoy the benefits of a home with positive, clean air. Some featured benefits include:
- Reduces Indoor Pollutants: Adds positive pressure to the home, pushing out pollutants such as allergens, mold spores, radon, and VOCs.
- Whole Home Ventilation System: Introduces fresh air to tightly built homes for improved indoor air quality (IAQ).
- Cost-Effective System: An inexpensive air quality unit that works with your home’s HVAC system.
- Energy Efficiency: Monitors indoor humidity and outdoor temperatures for energy-efficient operation.
Summary
Push out contaminants while infusing your home with controlled ventilation with the Aprilaire Model 8126A Ventilation Control Kit.
What Customer's Love
- Inexpensive System: The Aprilaire 8126A is an affordable whole-house ventilation alternative to H/ERV systems.
Things to Consider
- Filter System: This motorized damper opens for outside air to enter the return system on the plenum and filters the outdoor air through the home's HVAC filter.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)2.5
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)200.0
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)6
-
Depth (in.)41.0
-
Depth (with front cover) (in.)41.0
-
Duct Diameter (in.)6.0
-
Height (in.)23.25
-
Height (with front cover) (in.)23.25
-
Weight (lbs.)87
-
Width (in.)15.25
-
Width (with front cover) (in.)15.25
-
Additional FeaturesHumidity Sensor
-
Manufacturer's Warranty5-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
-
-
-
-
-
14% off -
-
- JTJim t. H. c.ReviewingAprilaire Ventilation Control KitRated 3 out of 5 stars4 years agoExcessive condensation back-flow inside vent ducting.
How can I prevent extreme back-flow condensation from the coil leading back into the duct pipe. (Even when I have it turned off. And, yes, I've taped it all off.)
