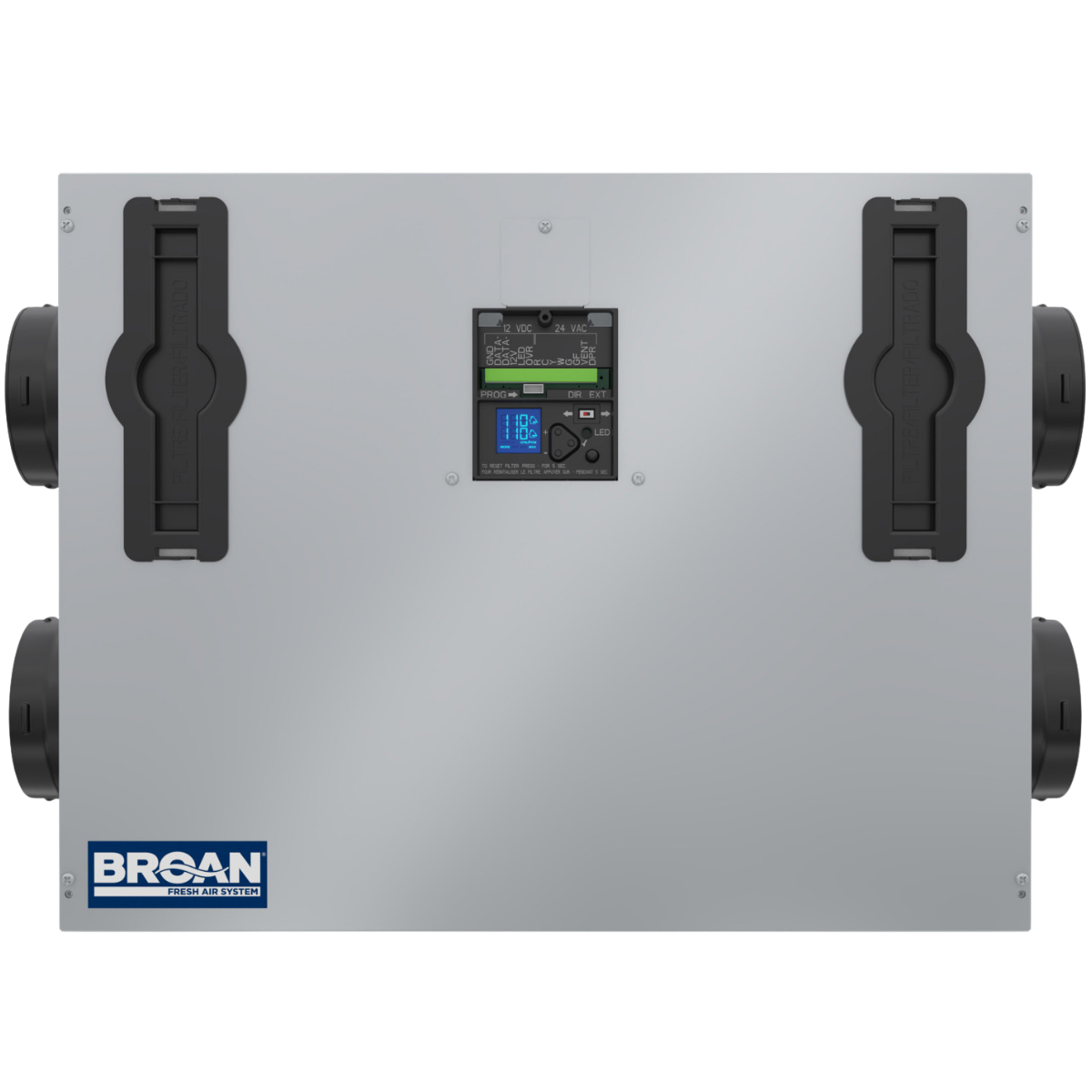

Broan EDGE BLP120E80NS 120 CFM Energy Recovery Ventilator

SKU: bn19257 | Model: BLP120E80NS-HW

$849⁰⁰

Power Supply

Hardwired Power Cord

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Parts and Core Limited Warranty

What's In The Box?

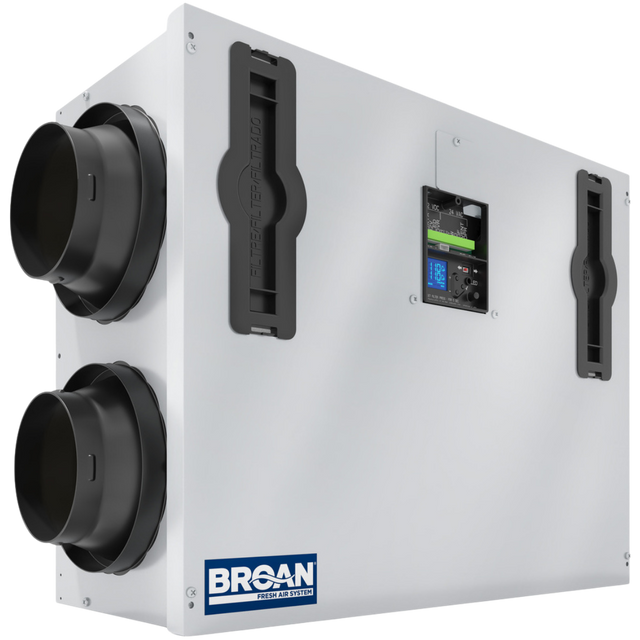

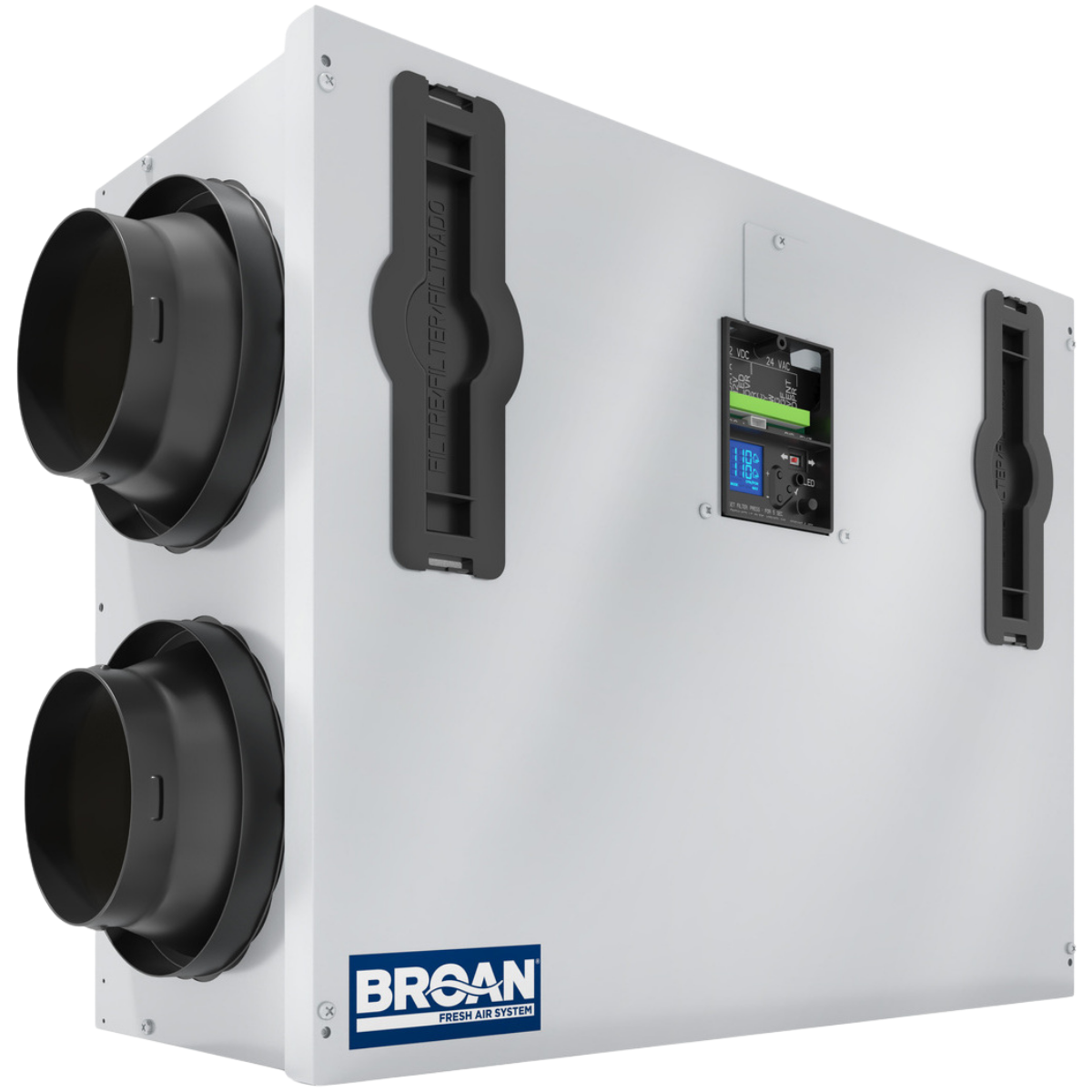

Broan EDGE BLP120E80NS 120 CFM Energy Recovery Ventilator
Air Filter
Owner's Manual, Guides, and Other Documents

Info & Guides

Description

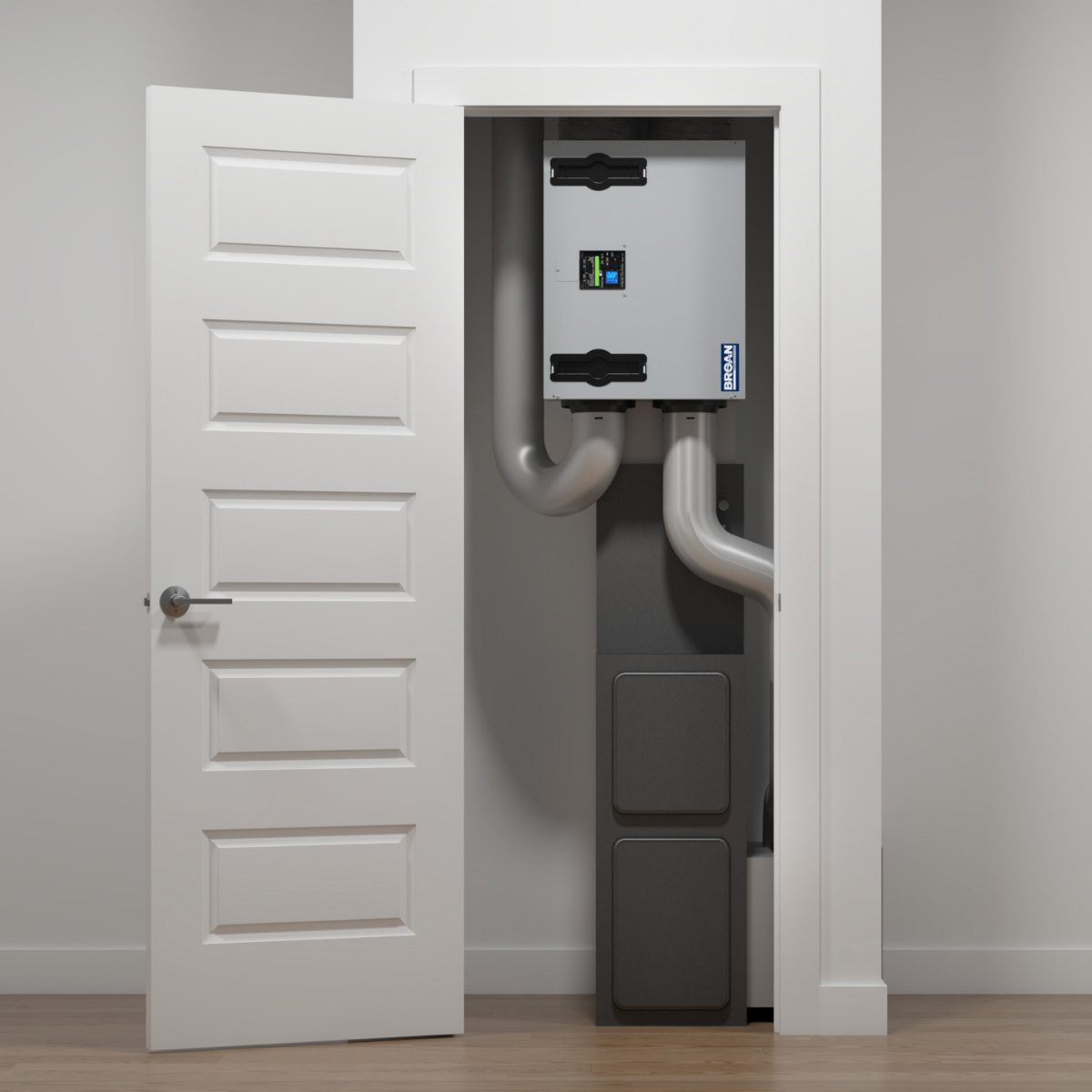

Mirrored floor plans normally require two different ventilators. The Broan EDGE BLP120E80NS 120 CFM Energy Recovery Ventilator features a flippable integrated selection switch that swaps the airflow configuration in the direction you need it. This ERV is the first Vertically-Mountable Low-Profile ERV, making it easy to integrate fresh air units into tightly stacked mechanical closets.

This ERV was developed for all types of climate conditions, and it holds its commissioned airflow from installation to inspection with its auto-balancing and self-adjusting VIRTUO Technology. Mount it horizontally or vertically, on a wall or a ceiling, connecting to the 4-inch side ports.

Key Features and Benefits of the Broan EDGE BLP120E80NS 120 CFM Energy Recovery Ventilator

VIRTUO Technology: Auto-balancing, self-adjusting airflow control saves time on installation and keeps supply and exhaust matched over time.
Variable Airflow: ECM PMSM motors run at variable speed across a wide range, so you set ventilation to your home's requirement instead of a fixed speed.

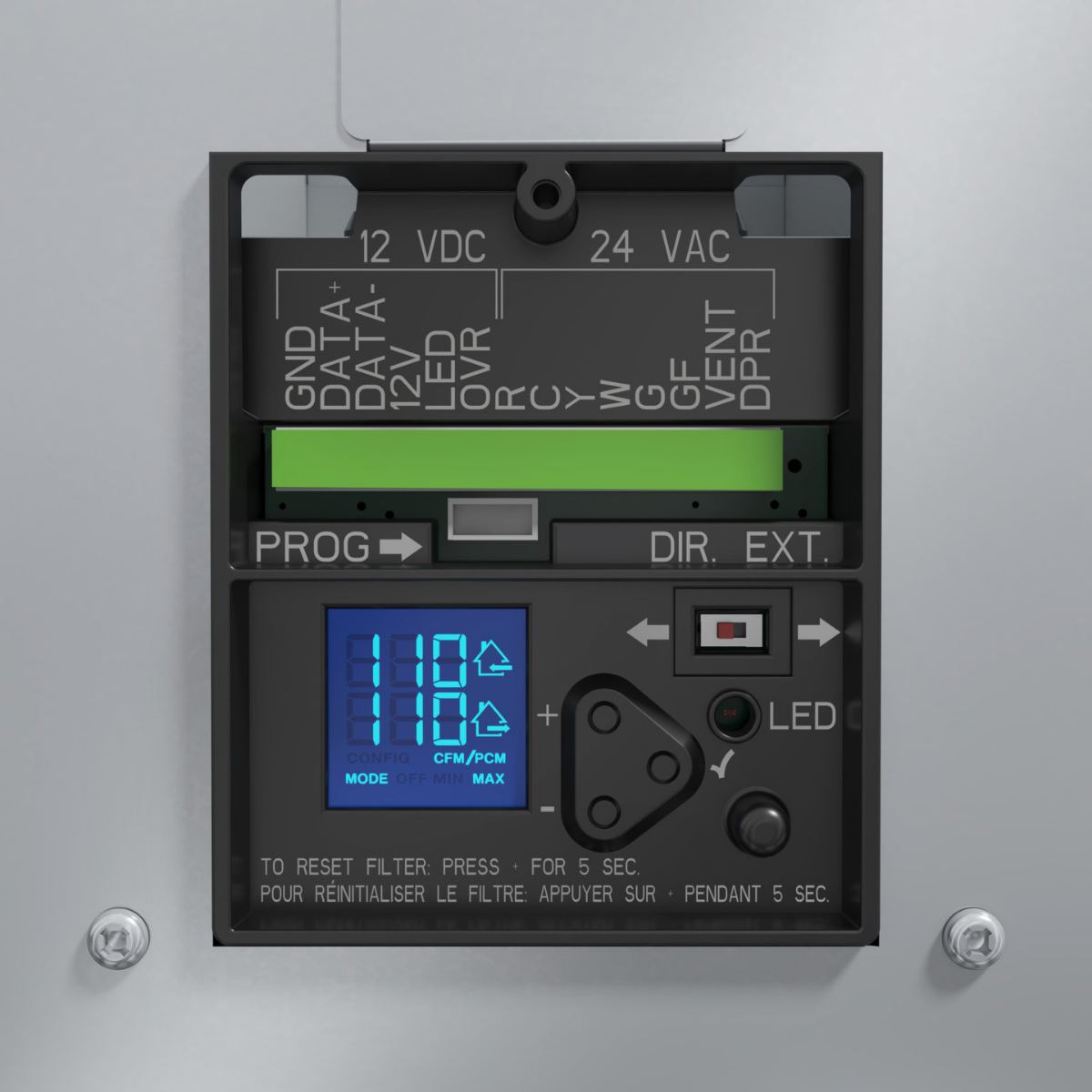

Integrated LCD: The electronic display lets you select airflow in 1 CFM increments and shows live CFM and watt readings, so you can see what the ventilator is actually doing.
Flip-Switch Configuration: A single integrated switch reverses the airflow configuration, which means one model handles both sides of a mirrored floor plan.
TrueCFM Performance: Guaranteed airflow from installation to inspection, so your commissioning paperwork matches the numbers you designed around.

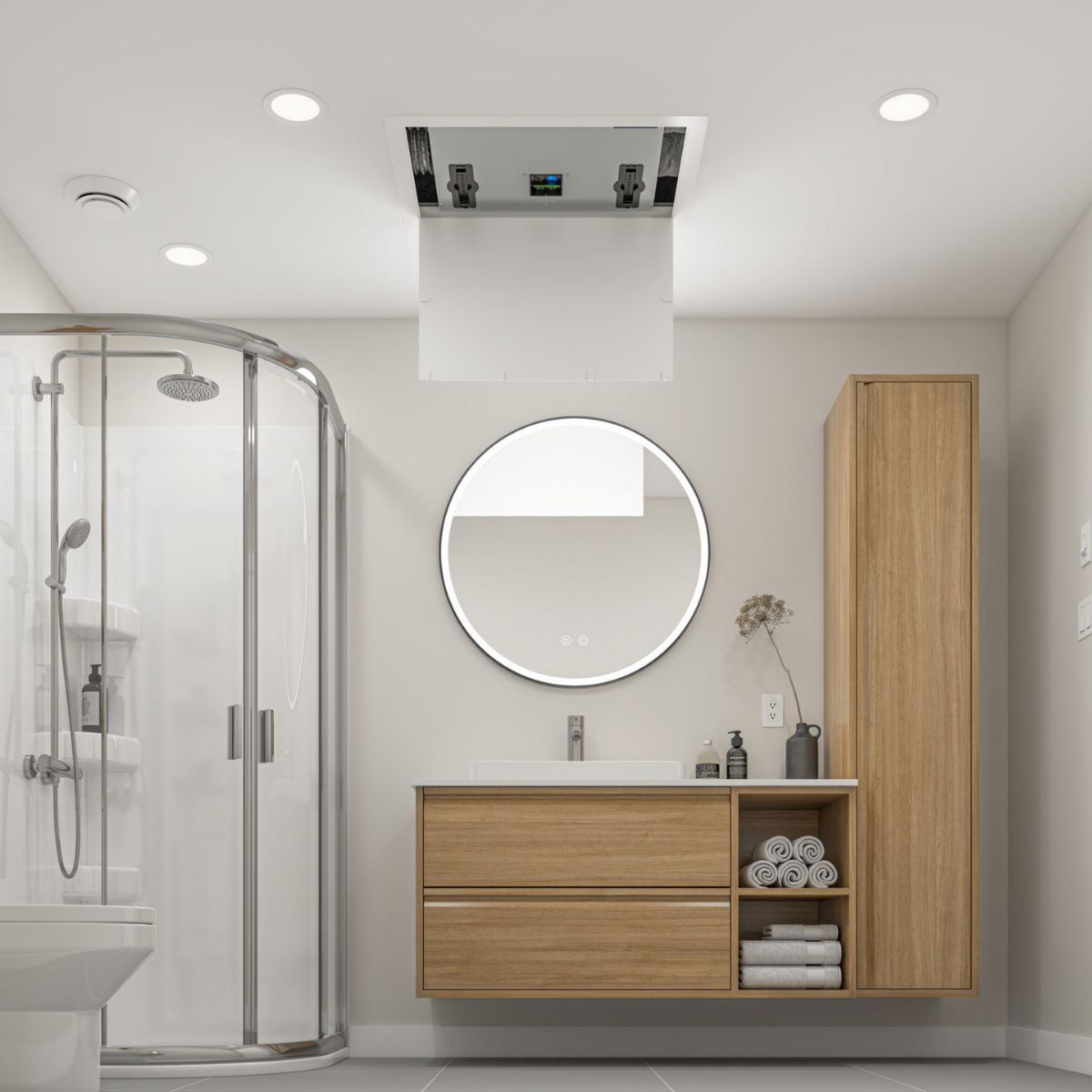

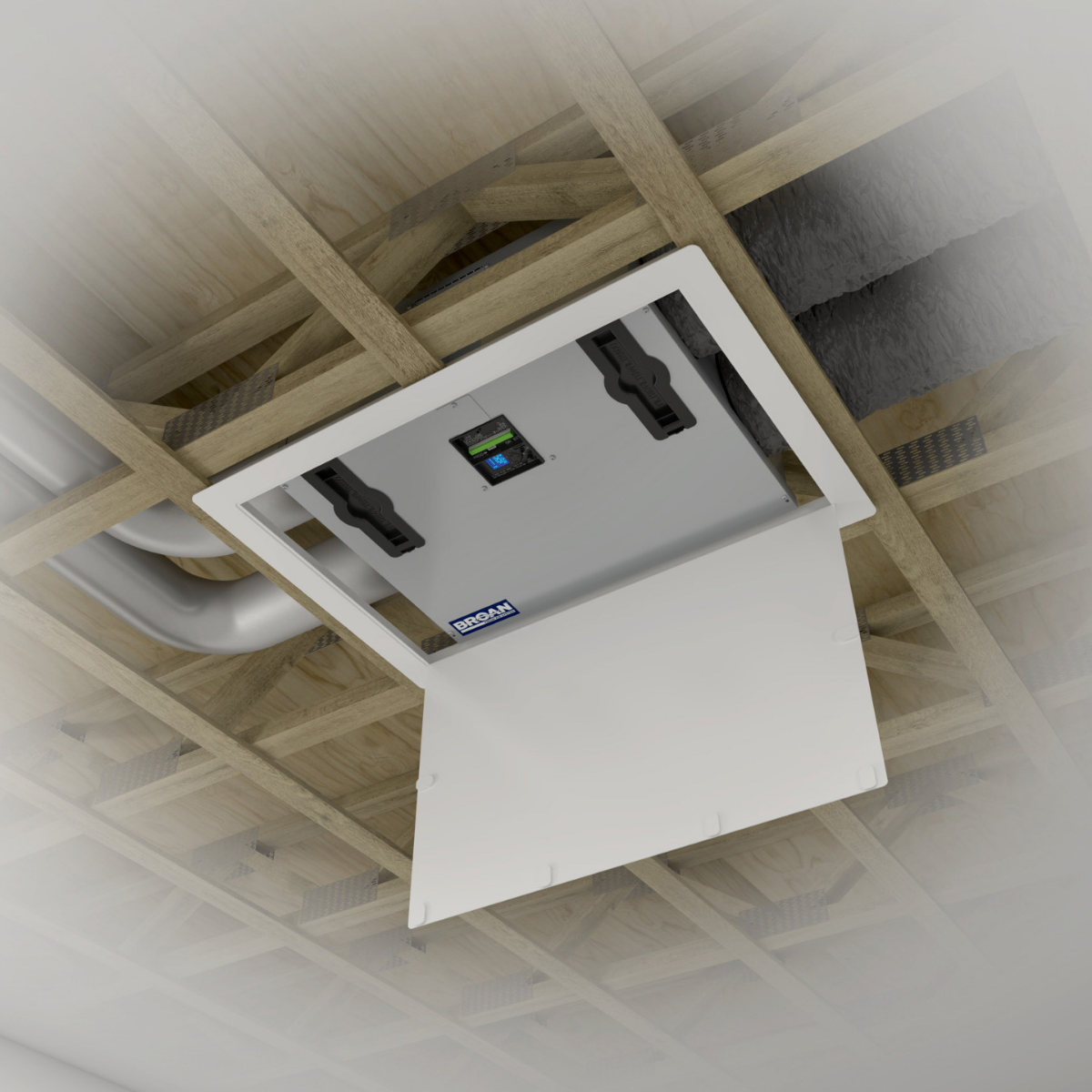

Dual Mounting: Ceiling and wall mounting in horizontal or vertical orientation gives you customizable installation in retrofits and new builds alike.
Duct Ports: Side-located 4-inch connections to residential ductwork.

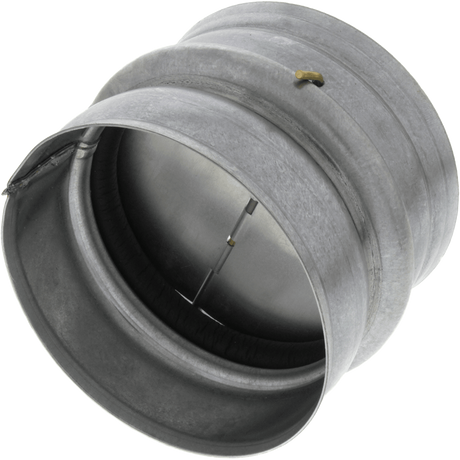

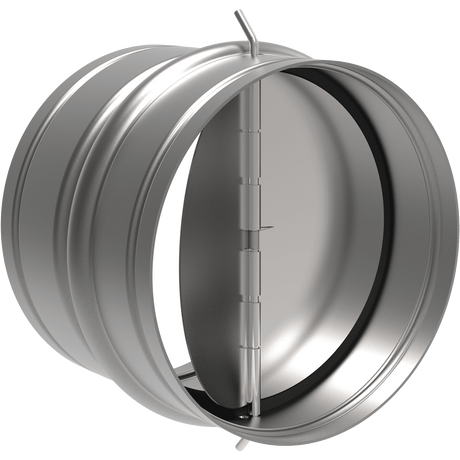

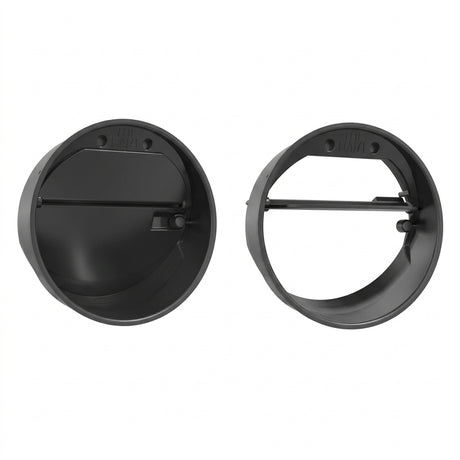

Optional Backdraft Dampers: Optional magnetic normally closed dampers VBACKDRAFT4 sold separately prevent unconditioned air from leaking backward into your home when the ventilation system is turned off.
Low Draw: It's rated at 150 watts and 2.4 amps maximum on a 110 to 120 volt supply, giving you the electrical specifications for circuit planning.
Easy Filter Access: You can reach the filters for maintenance without opening the door, which shortens routine service visits.
Certified Ratings: HVI-certified airflow and California Title 24 compliance mean the performance numbers are third-party tested and code-ready in California.

Choose Your Power Supply

Both versions share the same cabinet, core, and controls; the difference is how you bring power to them, and the airflow each one tops out at.

Hardwired (BLP120E80NS-HW): Wired directly into your electrical system for a clean, permanent installation, with continuous airflow from 30 to 125 CFM at 0.2 inches water gauge, so you can set the ventilation rate to suit your home's needs.
Power Cord (BLP120E80NS-PC): Plugs into a nearby outlet for faster hookup where no junction box exists, with continuous airflow from 30 to 131 CFM at 0.2 inches water gauge, so you can set the ventilation rate to suit your home's needs.

Sylvane's Expert Take

Specify this ERV for tightly sealed residential homes that need steady fresh-air exchange without throwing away conditioned air. Its compact footprint suits mechanical closets, while horizontal or vertical mounting lets you place it on a wall or ceiling in a mirrored or unmirrored floor plan. VIRTUO Technology self-adjusts to keep the airflow balanced after commissioning. If airflow accuracy and a fast hookup matter on your project, this is the ventilator to write into the plan.

Specifications

Key Specifications

Minimum Cubic Feet per Minute (CFM) (CFM)

30.0
Mounting Type

Wall, Ceiling
Number of Speeds

Variable
Port Location

Side
Type

ERV-Air Supply Fan

General

Application

Residential
Certifications

HVI, California Title 24
Color

Gray
Controls

Electronic
Maximum Cubic Feet per Minute (CFM) (CFM)

125.0
