Ebac CD425-D Dehumidifier
Ebac CD425-D Dehumidifier - CD425 220V is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ebac CD425-D Dehumidifier
- Drainage Accessories (see above chart for details)
- Owner's Manual

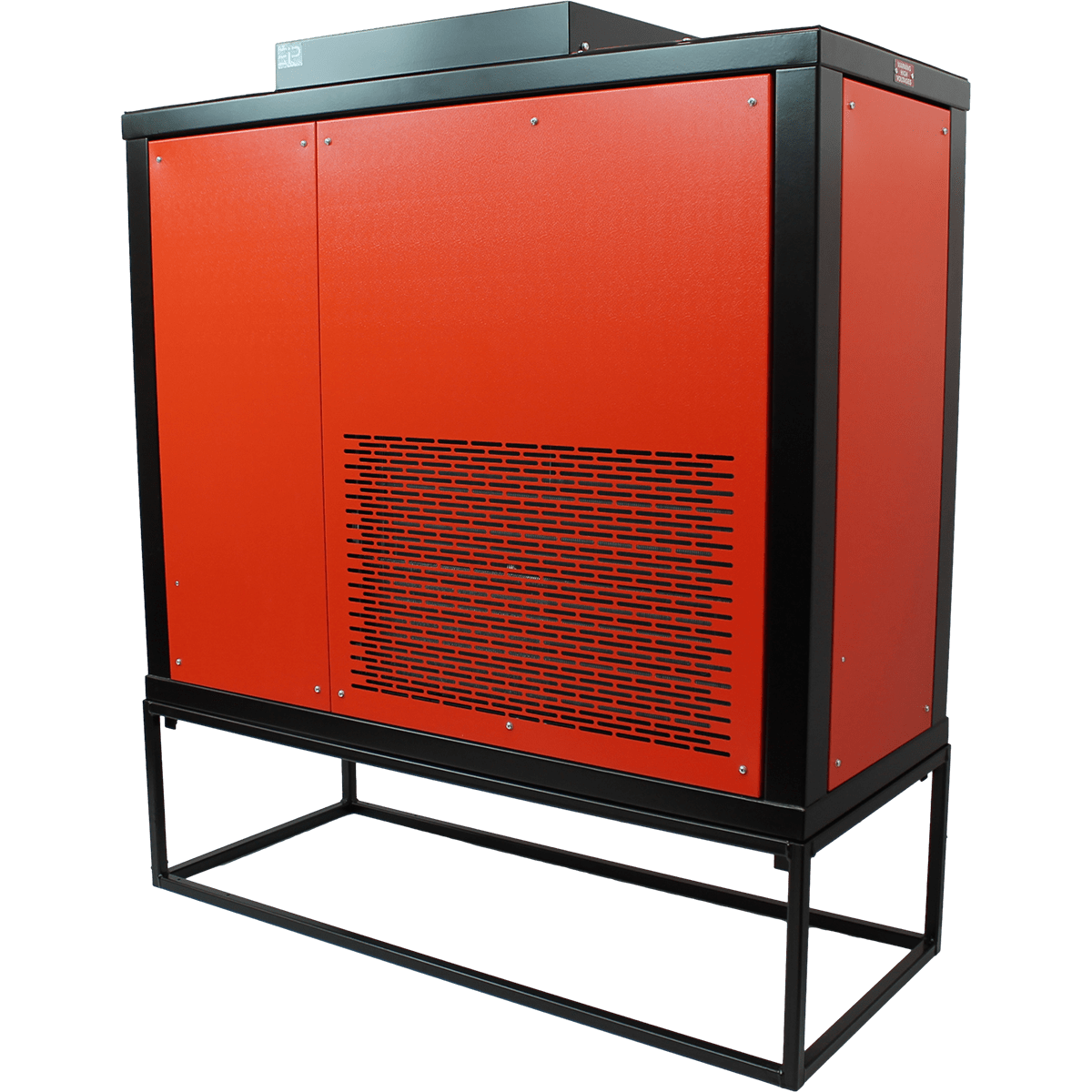

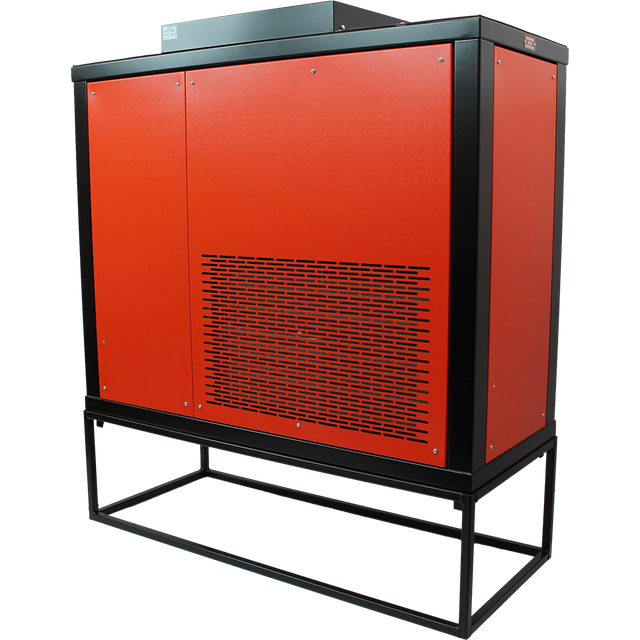

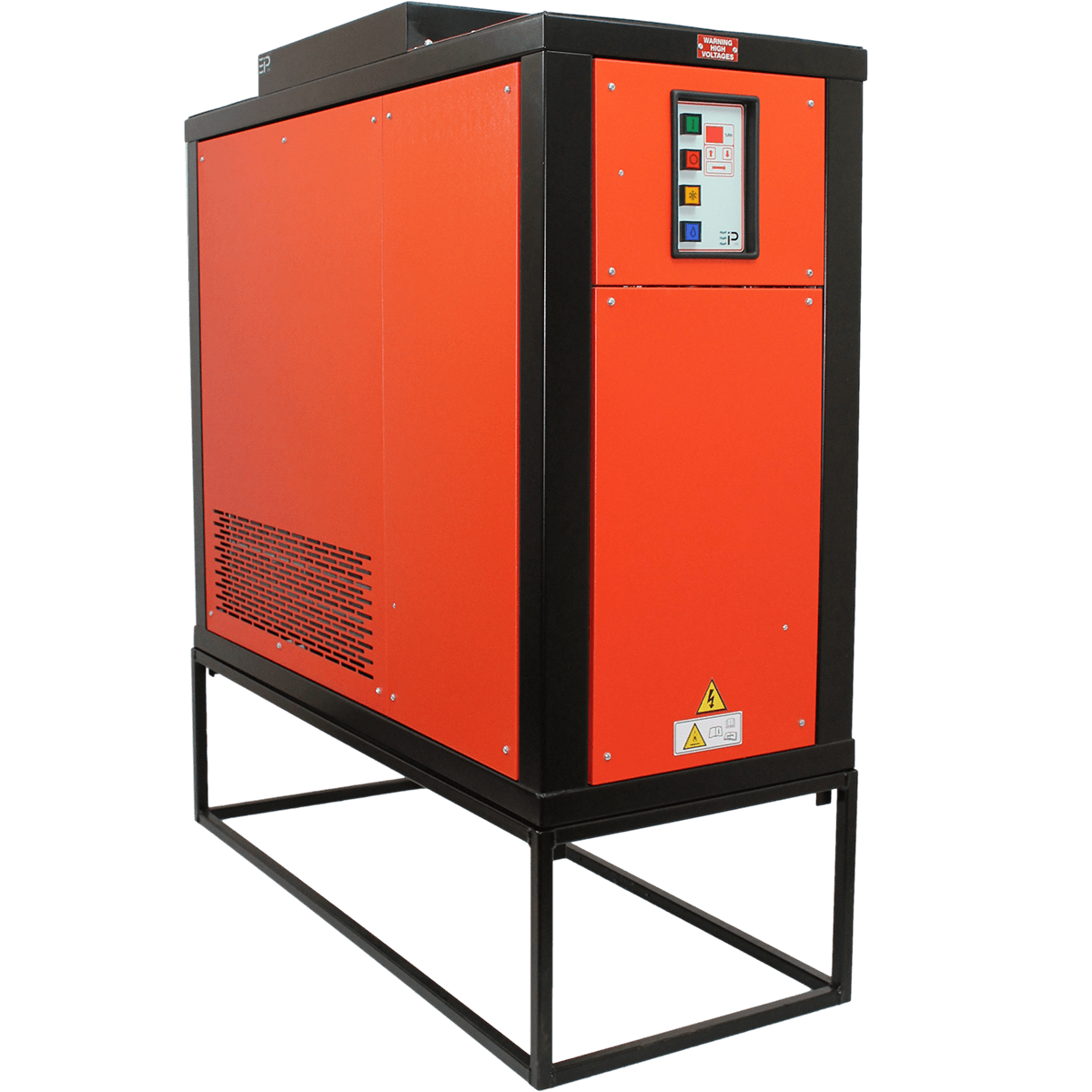

Ebac CD425-D Dehumidifier
Description
Description
Rugged and reliable, the Ebac CD425-D Dehumidifier is truly a diamond of a dehumidifier amidst the rough demands of industrial and commercial environments. This heavy-duty unit provides powerful humidity control in large warehouses, factories, offices, stadiums, laboratories, oil rigs, pumping stations, ships, and many other large-scale applications.
Use a single CD425-D unit or a series of units to build a dehumidifying system at any scale and take the burden off of your costly HVAC system. These dehumidifiers are also ductable to suit the needs of your application.
Four Models Available
Four Ebac CD425-D models are available with the option of an internal condensate pump, varying draining accessories, and 2 voltage options.
| Model # | Internal Condensate Pump | Included Draining Accessories | Voltage | Amp Current |
| Ebac CD425-D (10146BR-US) | No | 2 Jubilee Clips, 2 drain hoses (9.8 ft., 0.62 in. I/D) | 220 V | 16 Amps |
| Ebac CD425-D (10147BR-US) | Yes | 1 Quick Release Hose Coupling, PVC Tube (25.5 ft., 0.375 in. I/D) | 220 V | 16 Amps |
| Ebac CD425-D (10148BR-US) | No | 2 Jubilee Clips, 2 drain hoses (9.8 ft., 0.62 in. I/D) | 440 V | 8 Amps |
| Ebac CD425-D (10149BR-US) | Yes | 1 Quick Release Hose Coupling, PVC Tube (25.5 ft., 0.375 in. I/D) | 440 V | 8 Amps |
Large Capacity Moisture Removal
The Ebac CD425-D Dehumidifiers all have extreme capacities rated to meet the needs of large environments with severely humid conditions. Each unit condenses and removes up to 50 gallons of water vapor per day in extreme conditions.
Plus, they can remove an impressive 285 pints of moisture per day in AHAM conditions (80 degrees F, 60% relative humidity). Each dehumidifier also operates optimally in temperatures ranging from 33 degrees F to 95 degrees F.
Low Temperature Operation
These versatile dehumidifiers include Ebac's signature reverse cycle "Hot Gas" defrost system to make low temperature dehumidifying possible. With this system, each unit quickly melts away frost in temperatures below 33 degrees F.
Normal operation resumes with little downtime, making "set it and forget it" operation a reality. The CD425-D is especially ideal in areas that experience wide temperature fluctuations such as crawl spaces, remote pump stations, pipe galleries, and mechanical equipment storage areas.

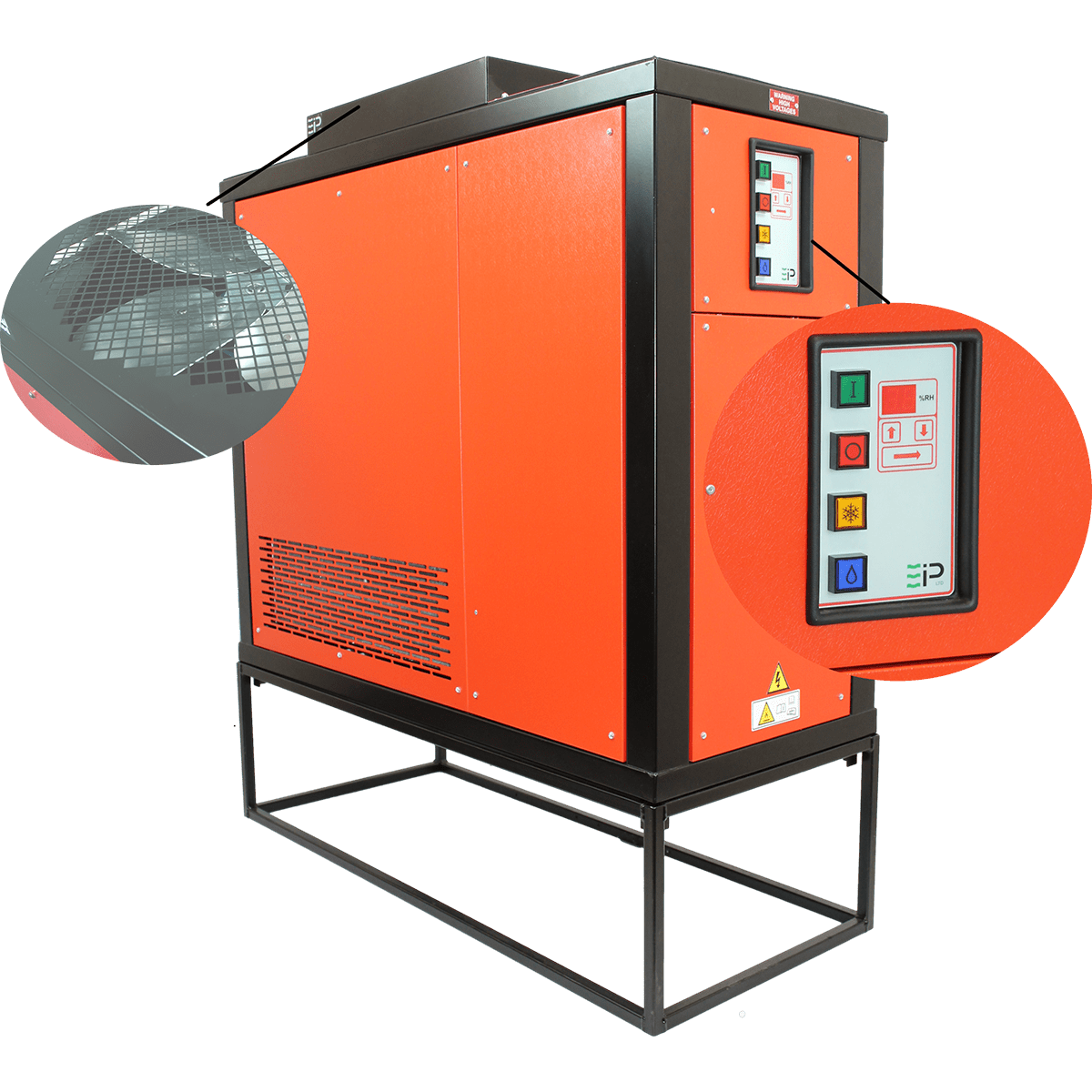

Additional Features
- Adjustable Humidistat: Automatically maintain your desired humidity level.
- Gravity Drain Capable: Models 1018110 and 1018150 are gravity drain-capable and include the necessary accessories.
- Internal Condensate Pump: Pump included on 10147BR-US & 10149BR-US models.
- Rugged Construction: Heavy-gauge all-steel housing with baked epoxy-coated and coatings stave off abrasion and corrosion.

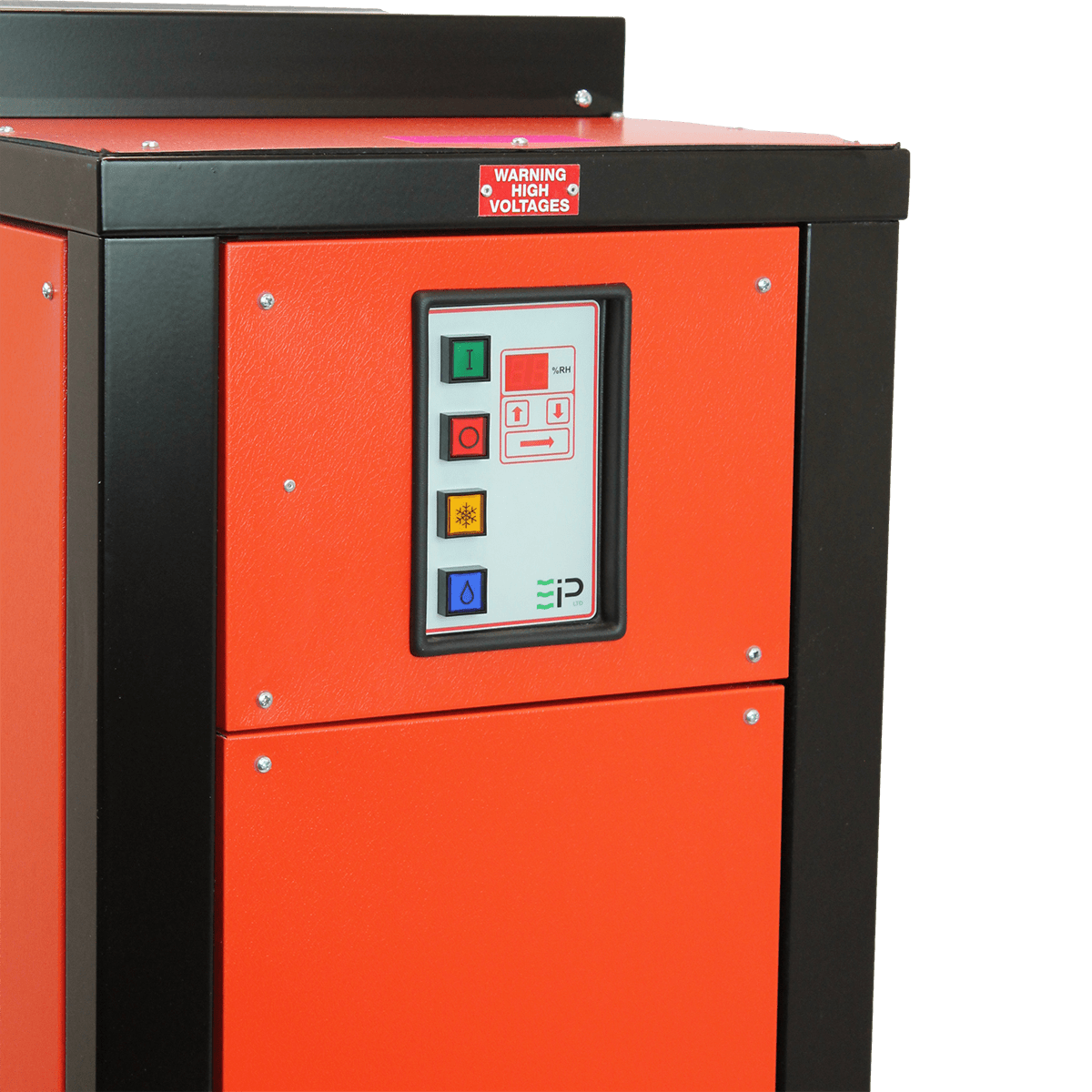

- System Status Lights: Keep you informed of operation.
Summary
Use one or multiple Ebac CD425D Dehumidifier models for rugged and high-capacity moisture removal in extreme conditions.
Specifications
Specifications
-
Internal Condensate PumpNoYesNoYes
-
Manufacturer-Suggested Room Size (sq. ft.)10000
-
Number of Speeds1
-
Pint Capacity (pints)285.0
-
Sylvane's Suggested
Room Size (sq. ft.)10000 -
ColorRed
-
ControlsElectronic
-
Drain Hose Length (ft.)9.825.69.825.5
-
Lowest Operating Temperature (degrees)33
-
Maximum Cubic Feet per Minute (CFM) (CFM)1750.0
-
Maximum Noise Level (dB)69
-
Number of Filters1
-
Recommended ForWarehouse, Water Damage Restoration
-
Refrigerant TypeR-407C
-
Maximum Amperage (Amps)16
-
Maximum Wattage (W)3680
-
Power SupplyPlug
-
Voltage (V)220-240220-240440-480440-480
-
Depth (in.)19.0
-
Depth (with front cover) (in.)19.0
-
Height (in.)47.0
-
Height (with front cover) (in.)47.0
-
Weight (lbs.)353
-
Width (in.)43.0
-
Width (with front cover) (in.)43.0
-
Additional FeaturesContinuous Drain Capable, Drain Hose Included, Humidistat, Automatic Defrost, Ductable, Auto-Restart
-
Manufacturer's Warranty1-Year Unconditional Warranty; 3-Year Warranty on Compressor, Condenser, and Evaporator
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
