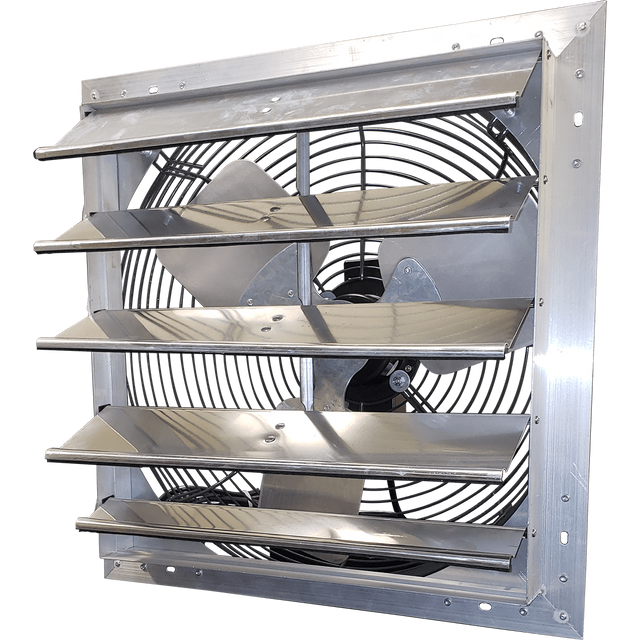

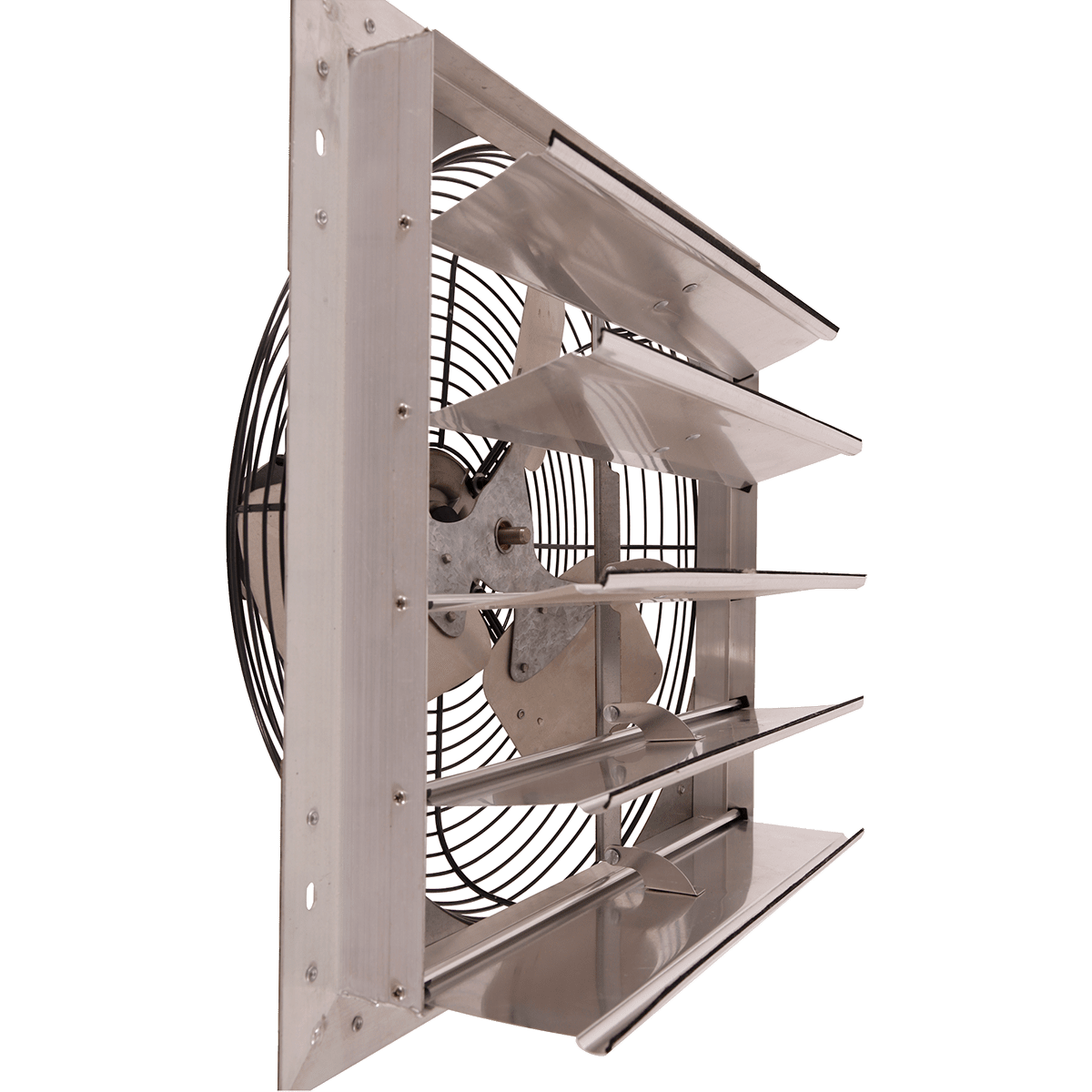

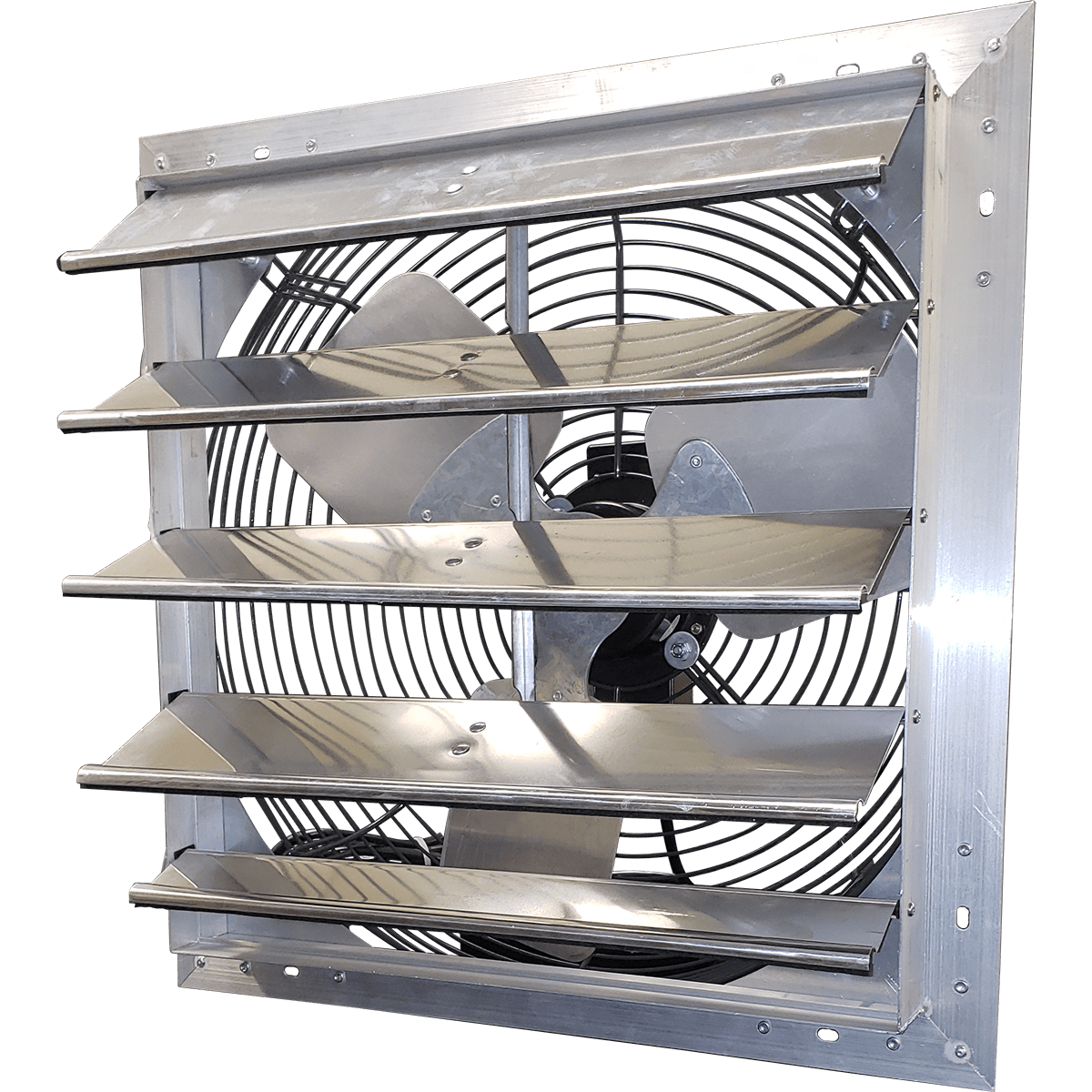

Hessaire 18 Inch Shutter Mounted Exhaust Fan

SKU: he8836  |  Model: 18SF6V75C
5.0
Rated 5.0 out of 5 stars
1 Review
$17800
Need something now? Consider this:
Canarm 18-in. SD Series Shutter Mounted Exhaust Fan
Fan Power

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

1-Year Warranty

What's In The Box?
  • Hessaire 18 Inch Exhaust Fan
  • Nine-Foot Power Cord
  • Owner's Manual

Info & Guides

Description

A hot, stale garage,restaurant back room, warehouse or barn needs that air pushed outdoors, not just stirred around. The Hessaire 18 Inch Shutter Mounted Exhaust Fan mounts in a wall opening and exhausts heat and moisture directly outside, along with odors. It arrives fully assembled with a pre-wired 9 ft. cord, so you can plug it in as soon as it's mounted.

Key Features and Benefits of the Hessaire 18 Inch Shutter Mounted Exhaust Fan

  • Sealed TEAO Motor: A totally enclosed air over (TEAO) motor keeps out dust and moisture, so it holds up in dusty garage and kitchen air.
  • UL 705 Certified: The fan carries UL 705 certification, so you know it is rated for safe operation in your garage or business.
  • Thermal Protection: Built-in thermal cutoff protection cuts power if the motor locks up, which protects the fan from overheating.
  • Galvanized Steel Housing: Durable steel and aluminum construction with a galvanized steel housing resists corrosion, so the fan stands up to humid, demanding conditions.
  • Sealed Ball Bearings: Permanently sealed ball bearings never need lubrication, so you never have to oil the motor.
  • Plug-In Power: A pre-wired 9-foot grounded cord runs on standard 110 to 120-volt power with manual controls, so you can skip hardwiring.
  • Installation Footprint: The 18 inch fans require an 18.5 x 18.5-inch wall cutout.
  • Fully Assembled: Ships ready to mount, so your installation time goes into framing the opening, not putting parts together.
  • OSHA-Compliant Guard: OSHA-compliant wire guard spacing supports efficient airflow and helps the fan last longer.

Multiple Speed Options

You can choose from two Horsepower options depending on how much air your space needs to move.

  • 1/10 HP Variable Speed Fan: This option moves up to 1,785 CFM and suits spaces up to 400 square feet, with a 7.4-sone rating, and overall dimensions of 12"D x 21"W x 21"H.
  • 1/4 HP Variable Speed Fan: The more powerful 1/4 HP variable-speed model raises airflow to 3,130 CFM for spaces up to 800 square feet at a maximum 7.3 sones with overall dimensions of 15"D x 21"W x 21"H.

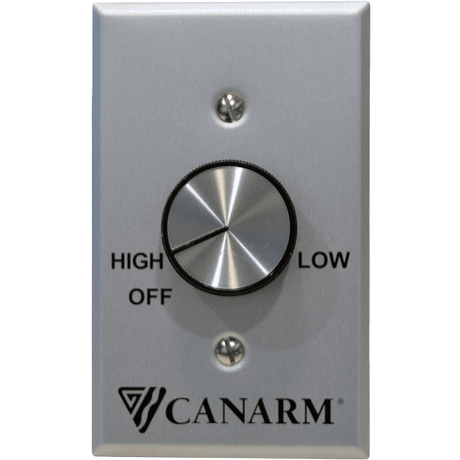

Note: For variable speed operation, a variable-speed controller is required, and must be installed by an electrician.

Sylvane's Expert Take

If you have a residential or commercial space that traps heat and fumes, this Hessaire fan is a solid fit for the wall. Pick by square footage. The 1/10 HP model handles up to 400 square feet , while the 1/4 HP model covers up to 800 square feet.

The sealed TEAO motor matters most in greasy or dusty air. Whichever speed you choose, the fan arrives assembled and starts working the day you plug it in.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      1/10 HP Variable Speed: 7.4
      1/4 HP Variable Speed: 7.3
    • Type
      Shutter Exhaust Fan

    General

    • Application
      Garage/Workshop, Commercial/Industrial
    • Certifications
      UL
    • Color
      Gray
    • Controls
      Manual
    • Housing Material
      Galvanized Steel
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1/10 HP Variable Speed: 1785.0
      1/4 HP Variable Speed: 3130.0
    • Maximum RPM
      1075
    • Recommended Coverage Area (sq. ft.)
      1/10 HP Variable Speed: 400
      1/4 HP Variable Speed: 800
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      1/10 HP Variable Speed: 1.0
      1/4 HP Variable Speed: 2.8
    • Power Supply
      Plug-In
    • Voltage (V)
      110-120
    • Watts (W)
      1/10 HP Variable Speed: 180
      1/4 HP Variable Speed: 322

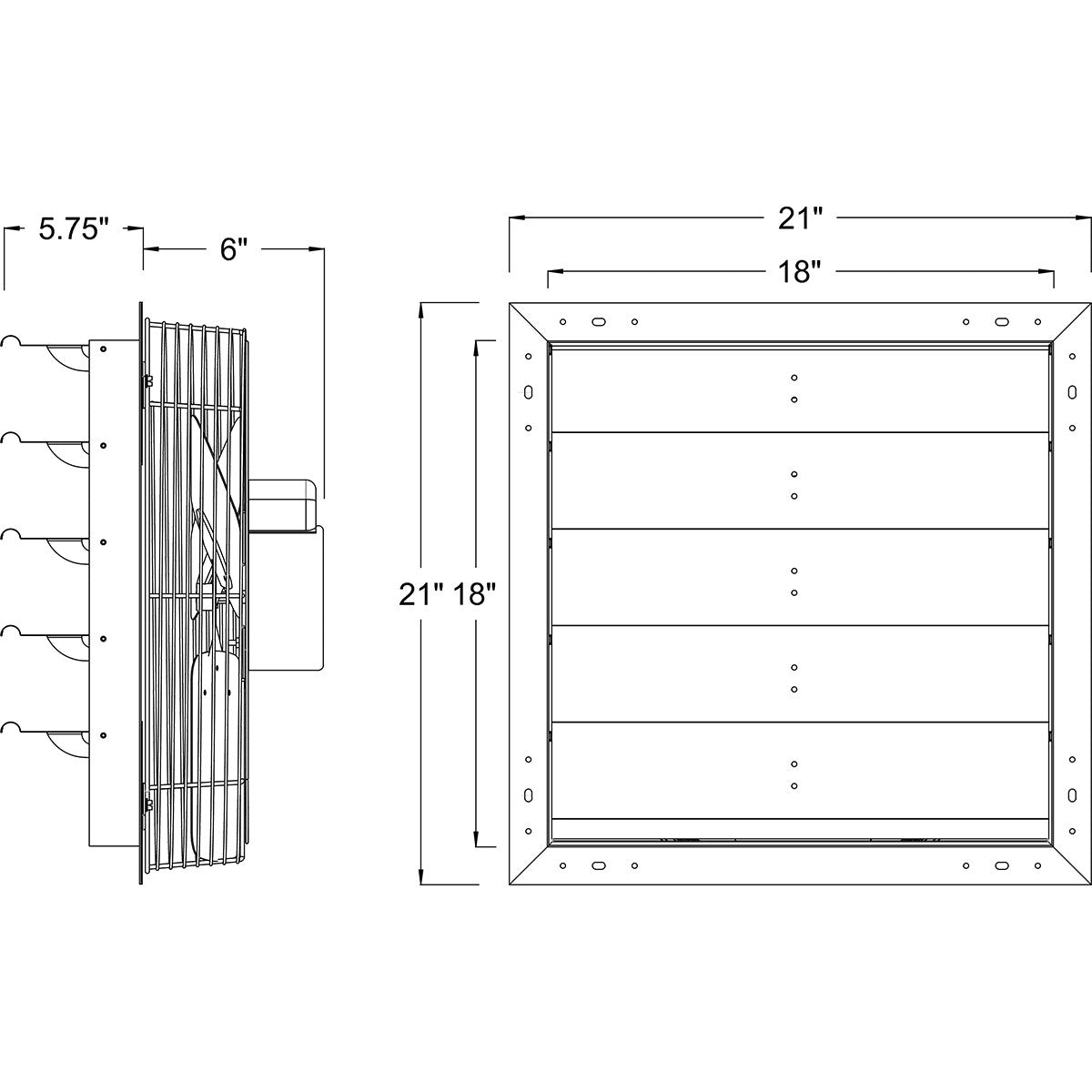

    Dimensions

    • Ceiling or Wall Cutout Length (in.)
      18.5
    • Ceiling or Wall Cutout Width (in.)
      18.5
    • Depth (in.)
      15.0
    • Height (in.)
      18.0
    • Shutter Fan Size (in.)
      18
    • Weight (lbs.)
      23
    • Width (in.)
      21.0

    Additional Features

    • Additional Features
      1/10 HP Variable Speed: Thermal Cutoff Protection
      1/4 HP Variable Speed: Thermal Cutoff Protection, Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      1-Year Warranty

Recommended Accessories

Customer Reviews

5.0
Rated 5.0 out of 5 stars
Based on 1 review
100%would recommend this product
Write a Review (Opens in a new window)
1 review
  • B
    Benny
    Flag of United States
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    6 years ago
    Worth it's money in gold!

    I installed this fan in a window in my attic, which is about 1000 square feet. The fan performs amazingly! It's so powerful that is pulls in fresh air thru the windows downstairs. On hot days I run the fan all day and keep the doors and windows closed downstairs, resulting in cool temps all day. On cooler days, I run the fan and open the windows and doors downstairs and the fan keeps a nice steady flow of cool air all thru the house. I can't believe I suffered thru so many hot California days for so long. This fan is a very good investment and easy to install.
